Removal and Installation

Disconnect the accelerator cable from the accelerator pedal.
1. Position the accelerator pedal to relieve tension on the accelerator cable.
2. Depress the tabs on the accelerator pedal retaining pin and disconnect the cable.

  Fig 1: Disconnecting Accelerator Cable From Accelerator Pedal
  Courtesy of FORD MOTOR CO.
Remove the accelerator cable splash shield.
1. Remove the pin-type retainers.
2. Remove the splash shield.

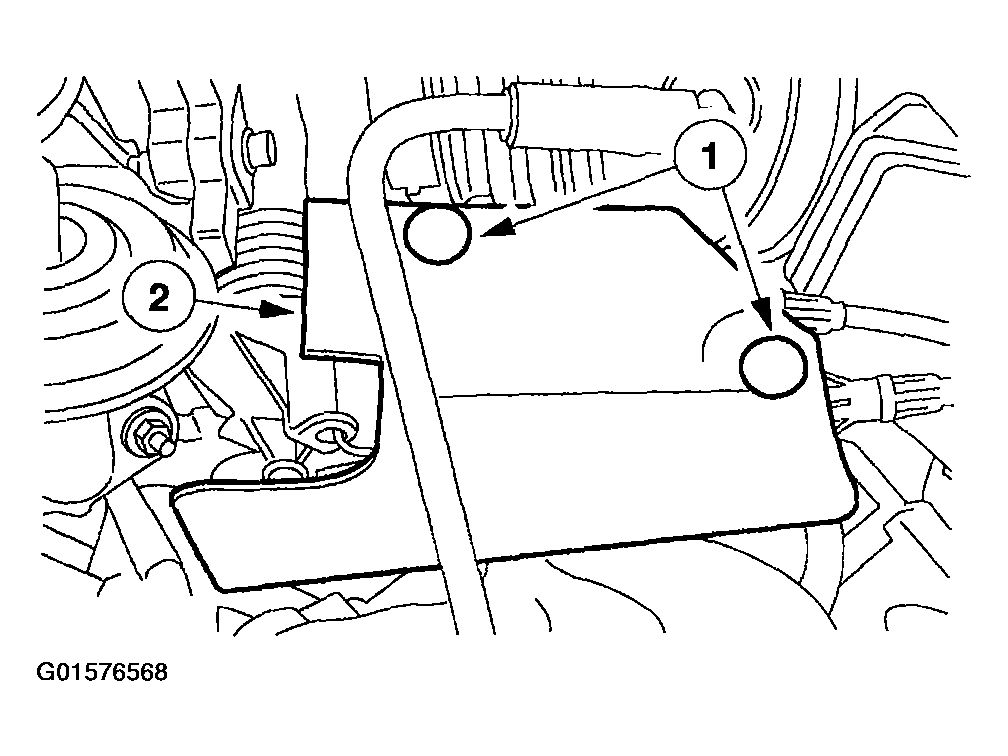

  Fig 2: Identifying Pin-Type Retainers And Splash Shield
  Courtesy of FORD MOTOR CO.
Disconnect the accelerator cable.
1. Move the throttle cam to wide open throttle (WOT).
2. Remove the accelerator cable slug from the throttle cam.
3. Depress the accelerator cable tabs and remove the accelerator cable from the accelerator cable bracket.

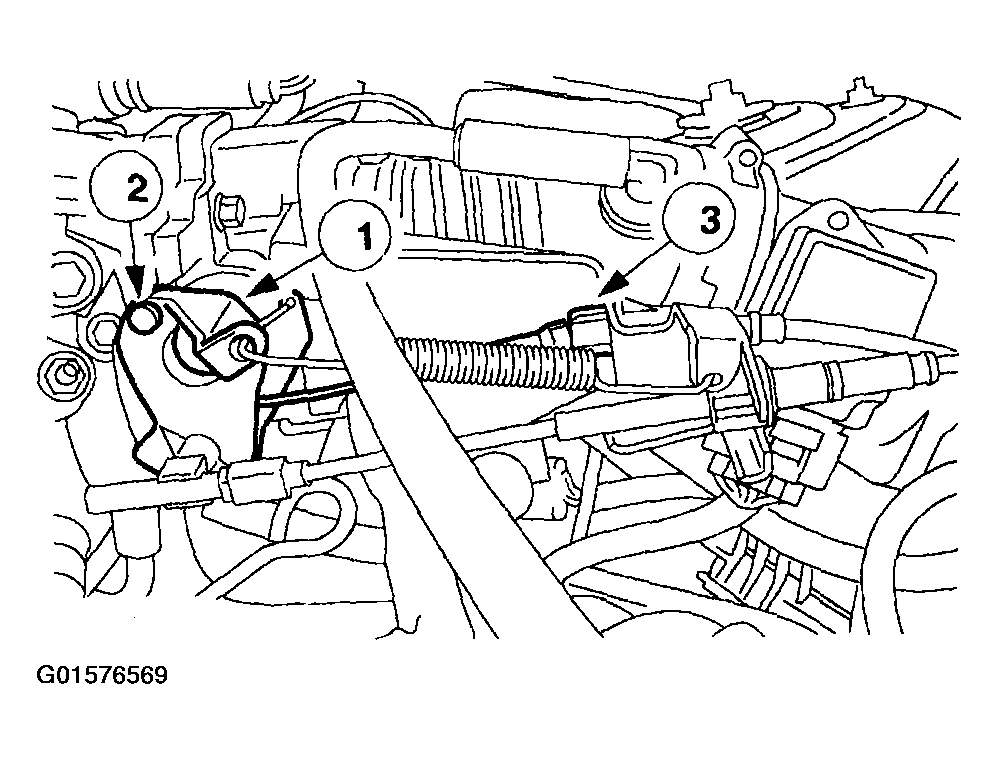

  Fig 3: Identifying Accelerator Cable
  Courtesy of FORD MOTOR CO.
Remove the accelerator cable grommet from the bulkhead.
- Remove the accelerator cable.

  Fig 4: Identifying Accelerator Cable Grommet
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
