Pinpoint Test A: The Shift Interlock System Does Not Release/Lock Correctly

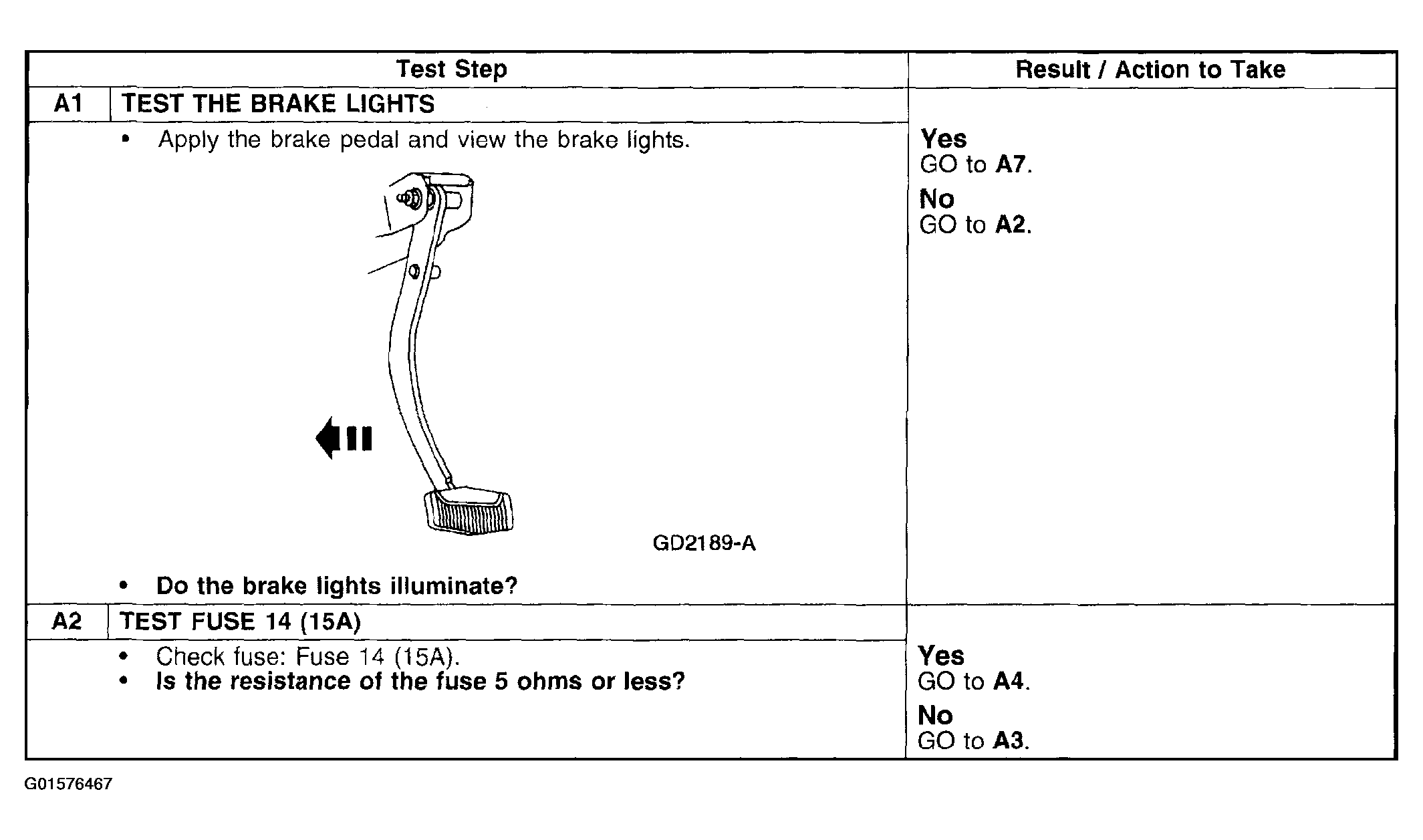

Fig 1: Pinpoint Test A: Shift Interlock System Does Not Release/Lock Correctly (Steps A1-A2)
G01576467Courtesy of FORD MOTOR CO.

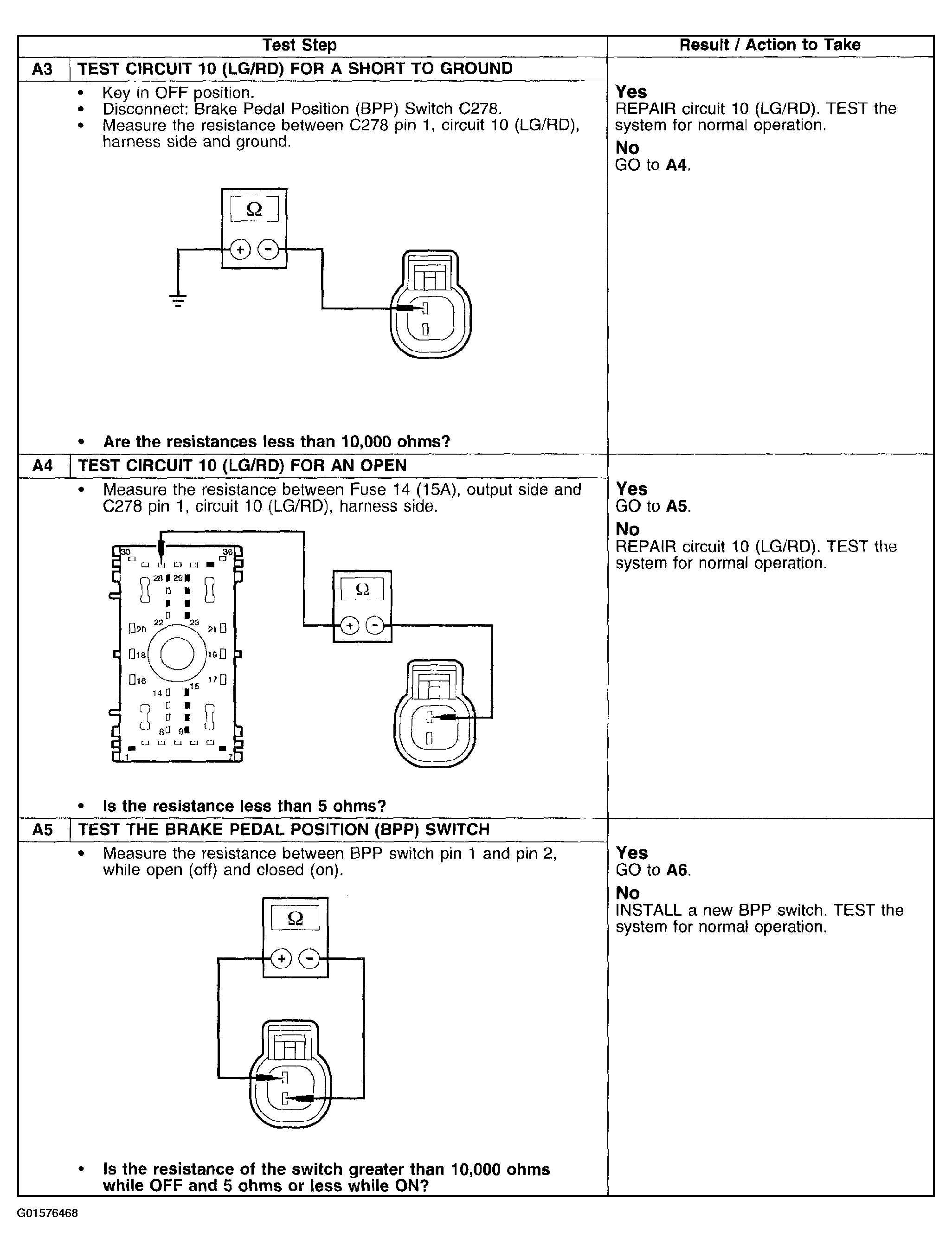

Fig 2: Pinpoint Test A: Shift Interlock System Does Not Release/Lock Correctly (Steps A3-A5)
G01576468Courtesy of FORD MOTOR CO.

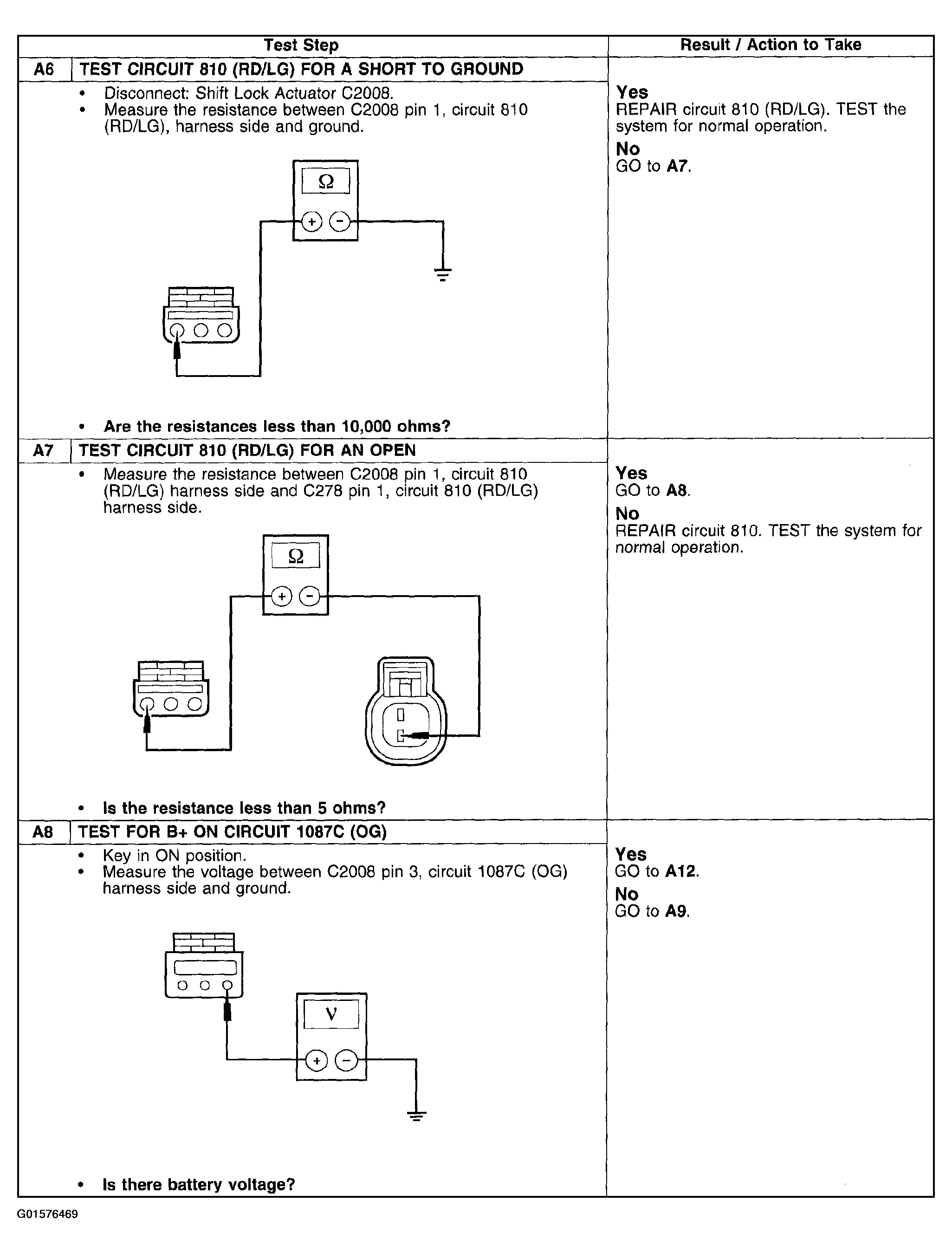

Fig 3: Pinpoint Test A: Shift Interlock System Does Not Release/Lock Correctly (Steps A6-A8)
G01576469Courtesy of FORD MOTOR CO.

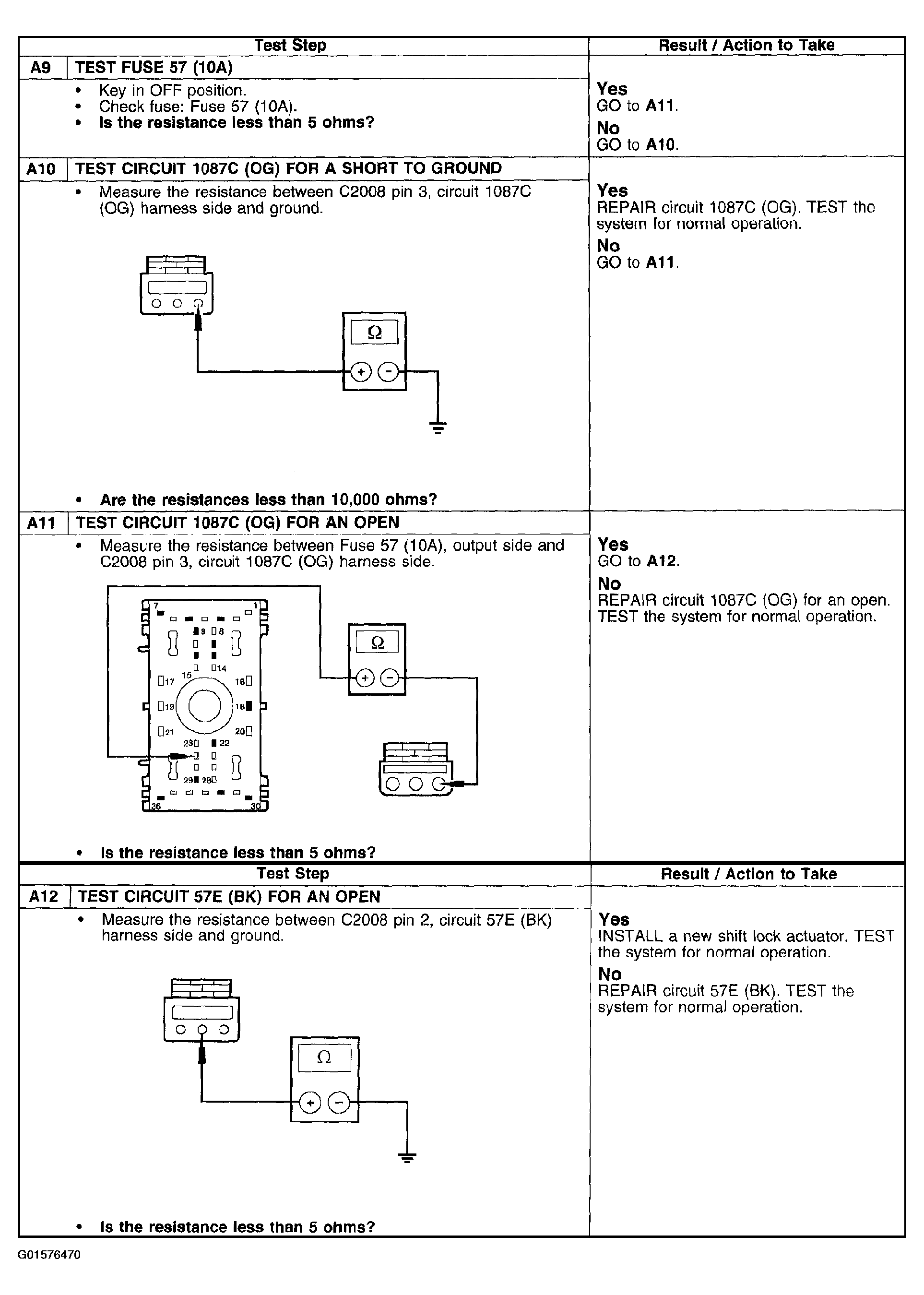

Fig 4: Pinpoint Test A: Shift Interlock System Does Not Release/Lock Correctly (Steps A9-A12)
G01576470Courtesy of FORD MOTOR CO.
