Brake System-General Information
›
Diagnosis And Testing
›
Brake System
›
Symptom Chart
Symptom Chart

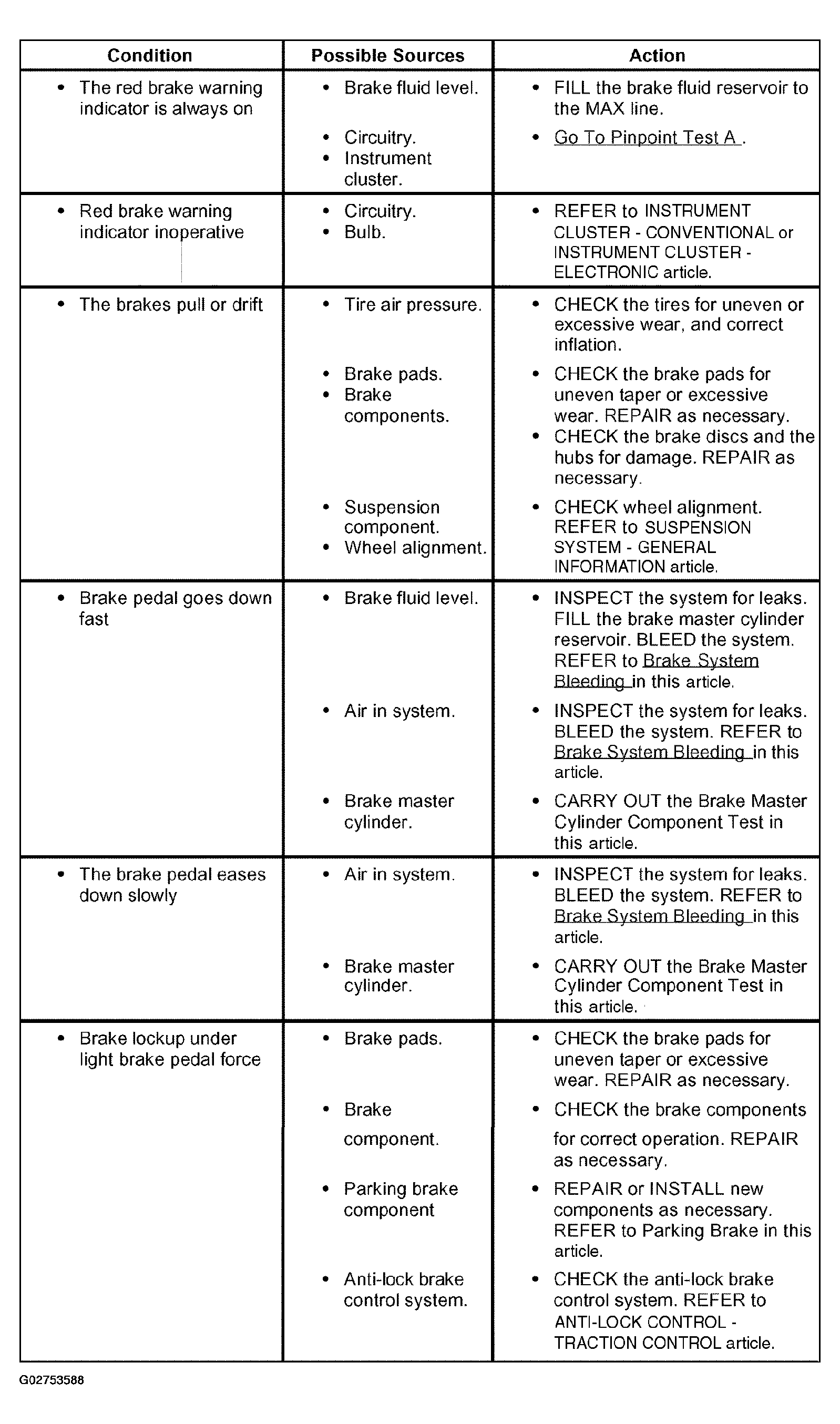

Fig 1: Symptom Chart (1 of 3)
Courtesy of FORD MOTOR CO.

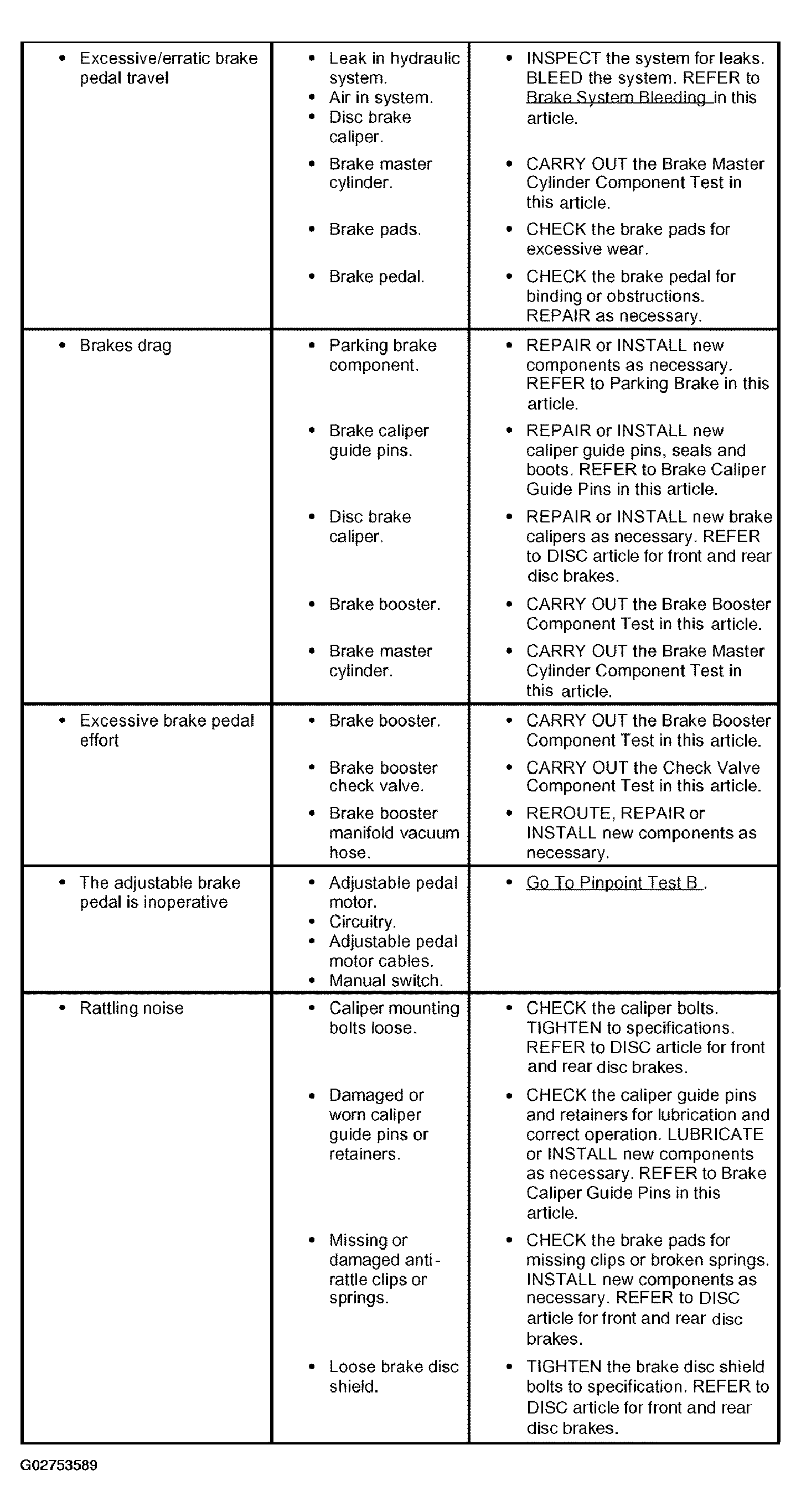

Fig 2: Symptom Chart (2 of 3)
Courtesy of FORD MOTOR CO.

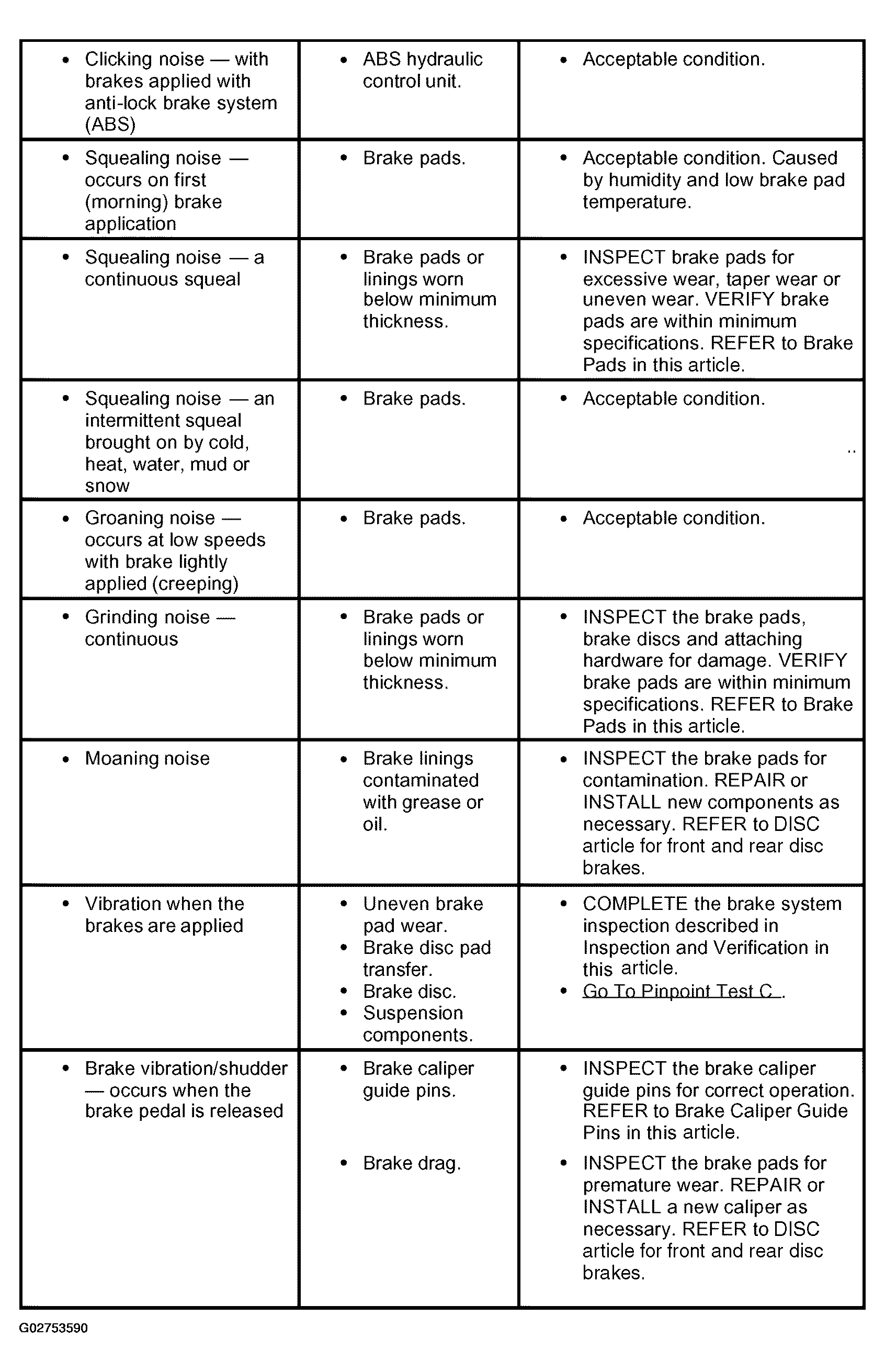

Fig 3: Symptom Chart (3 of 3)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
