Piston - Pin Connecting Rod Assembly, Floating Pin: Assembly

NOTE: Connecting rod must be installed into the piston with identification markings toward the front.

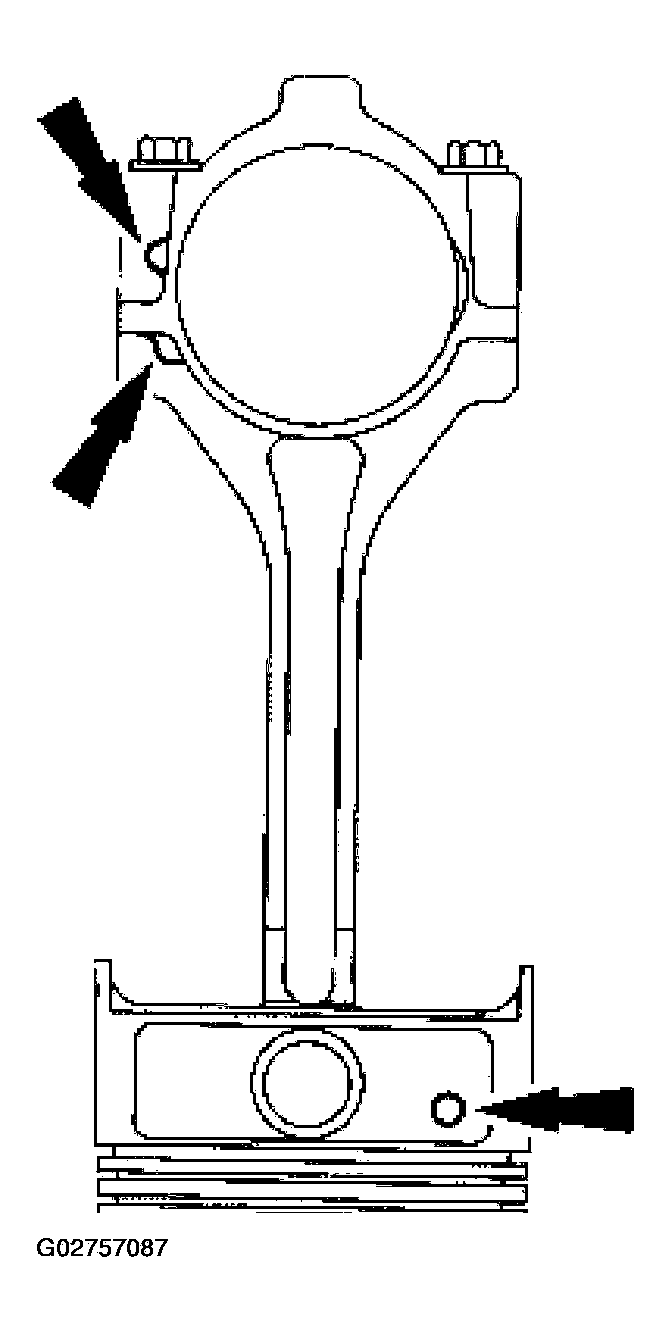

Fig 1: Positioning Connecting Rod In Piston

Courtesy of FORD MOTOR CO.

Position the connecting rod in the piston.
Lubricate the piston pin and pin bore with clean engine oil.

Fig 2: Lubricating Piston Pin And Pin Bore With Clean Engine Oil
Courtesy of FORD MOTOR CO.
Install the piston pin in the piston and connecting rod assembly.

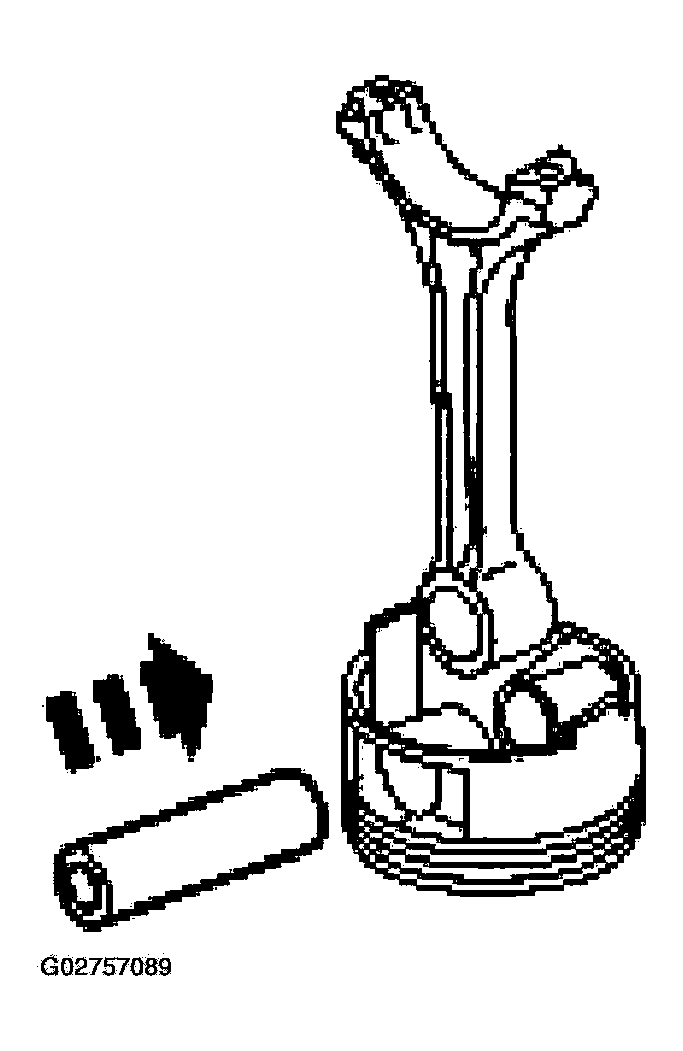

Fig 3: Installing Piston Pin In Piston And Connecting Rod Assembly
Courtesy of FORD MOTOR CO.
Install the piston pin retaining clips in the piston.

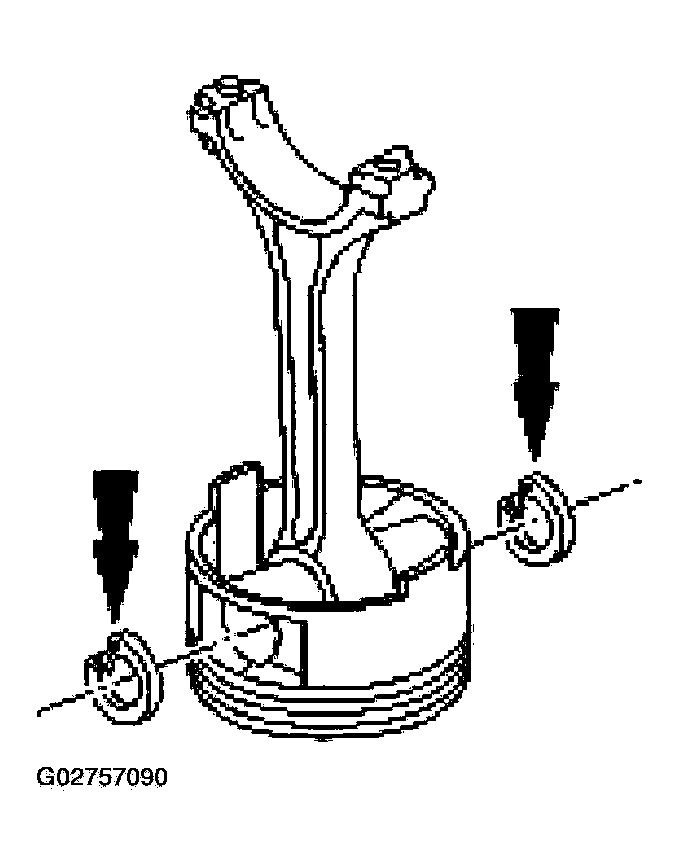

Fig 4: Installing Piston Pin Retaining Clips In Piston
Courtesy of FORD MOTOR CO.
