Piston - Pin Connecting Rod Assembly, Floating Pin: Disassembly

  1. Remove the clips.

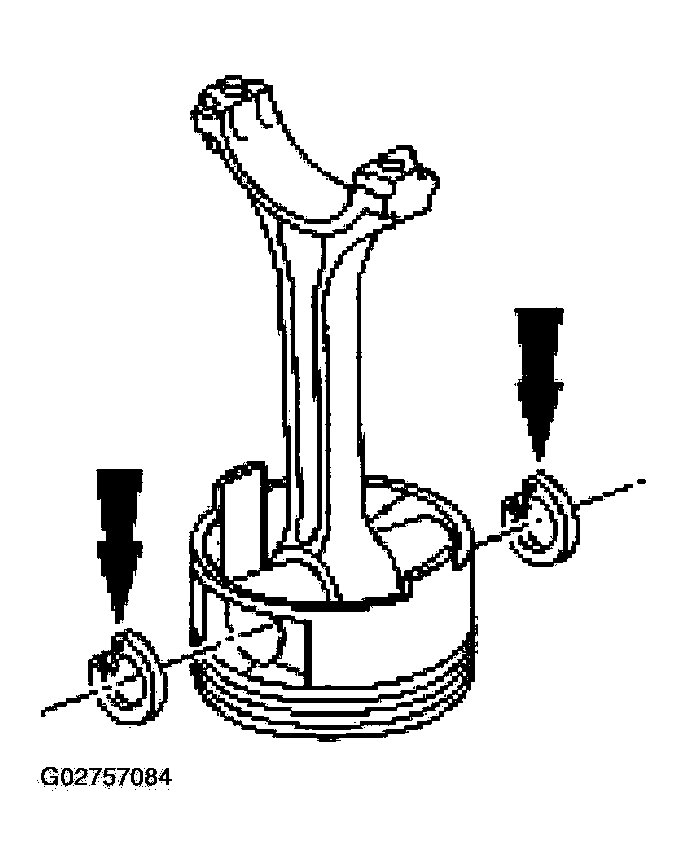

    Fig 1: Removing Clips
    G02757084Courtesy of FORD MOTOR CO.
  2. Remove the piston pin from the piston and connecting rod assembly.

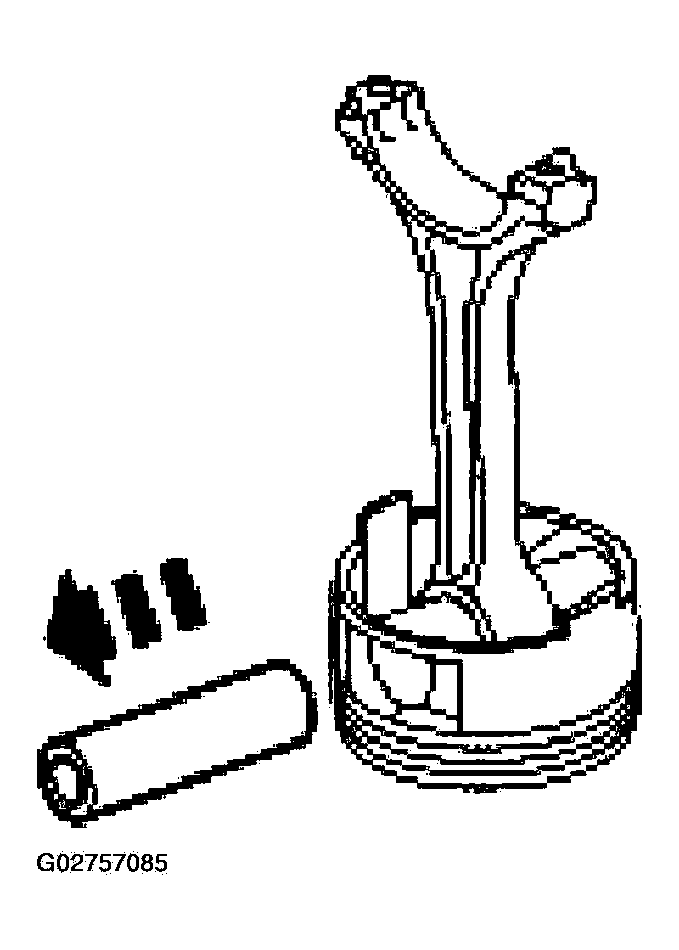

    Fig 2: Removing Piston Pin From Piston And Connecting Rod Assembly
    G02757085Courtesy of FORD MOTOR CO.
  3. Remove the connecting rod from the piston.

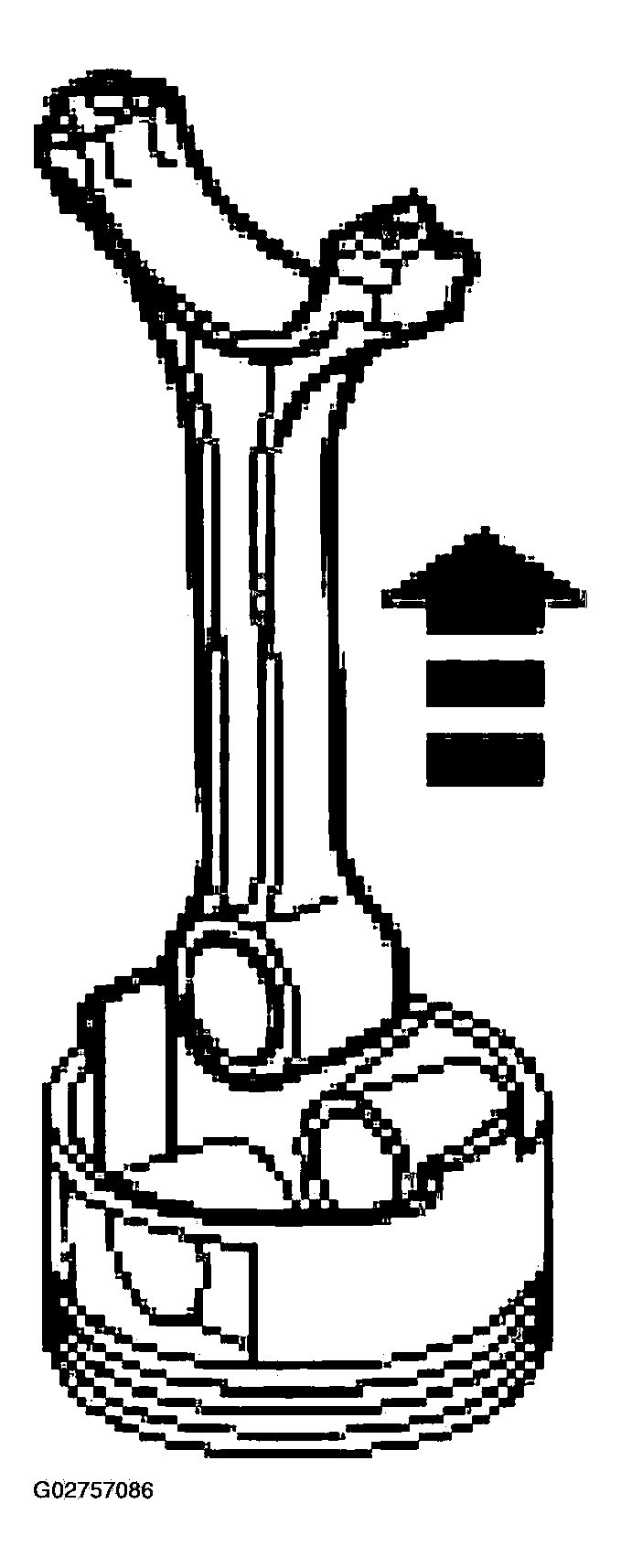

    Fig 3: Removing Connecting Rod From Piston
    G02757086Courtesy of FORD MOTOR CO.
  4. Clean and inspect the piston and connecting rod. For additional information, refer to ENGINE COOLING .
