Engine Front Cover: Removal

Release the fuel system pressure. For additional information, refer to FUEL SYSTEM-GENERAL INFORMATION .
Remove the cooling fan. For additional information, refer to ENGINE COOLING .
Remove the left and right valve covers. For additional information, REFER to VALVE COVER LH and VALVE COVER RH .
Remove the crankshaft front seal. For additional information, REFER to CRANKSHAFT FRONT SEAL .

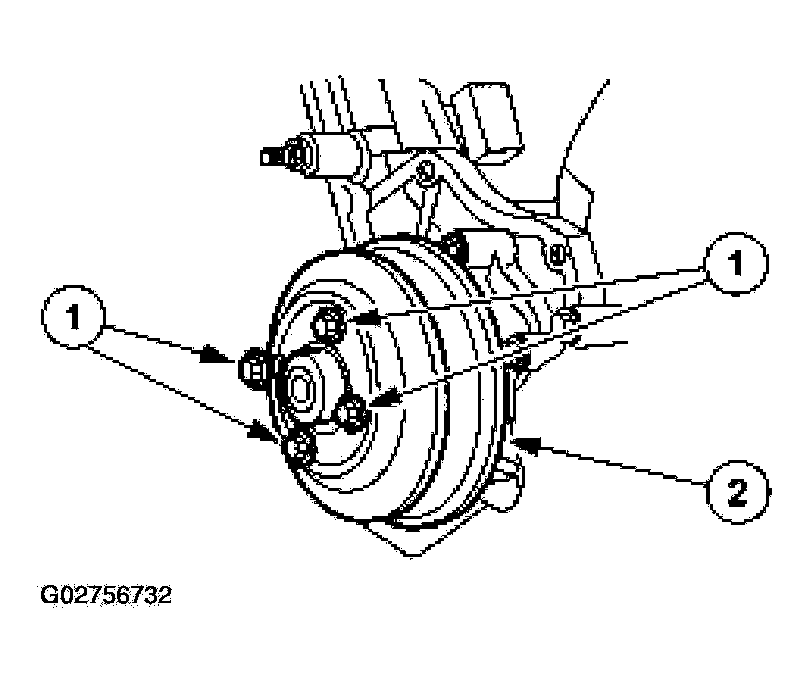

Remove the coolant pump pulley.
1. Remove the bolts.
2. Remove the coolant pump pulley.
Fig 1: Removing Coolant Pump Pulley
Courtesy of FORD MOTOR CO.

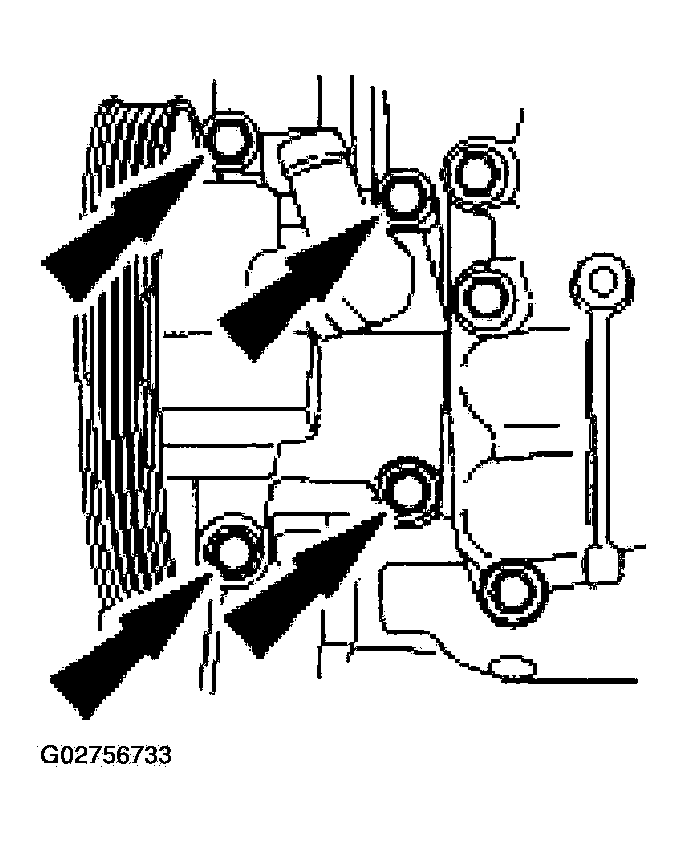

Remove the bolts and position the power steering pump aside.

Fig 2: Removing Bolts And Positioning Power Steering Pump Aside
Courtesy of FORD MOTOR CO.

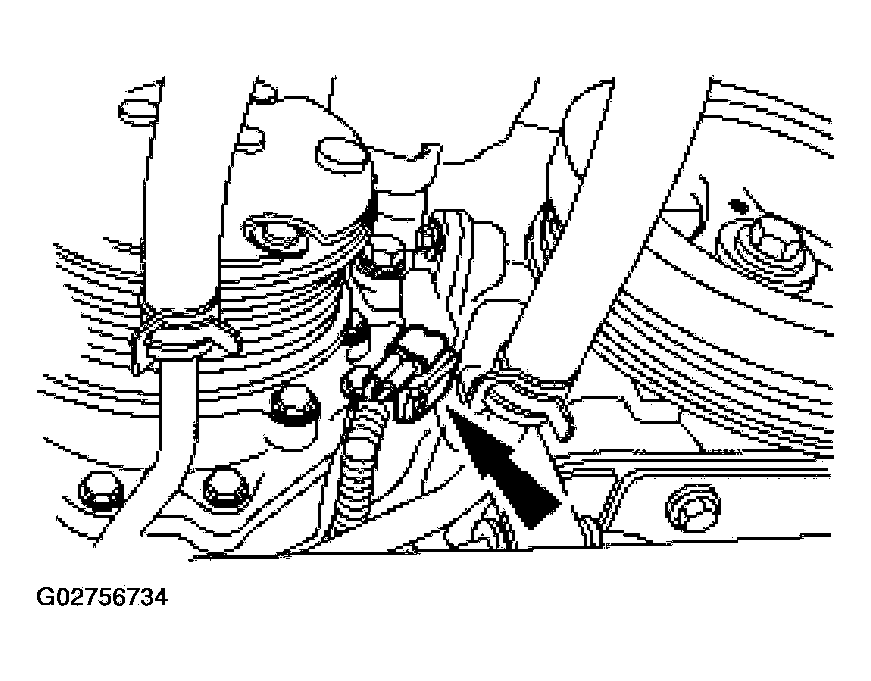

Disconnect the crankshaft position (CKP) sensor electrical connector.

Fig 3: Disconnecting Crankshaft Position (CKP) Sensor Electrical Connector
Courtesy of FORD MOTOR CO.

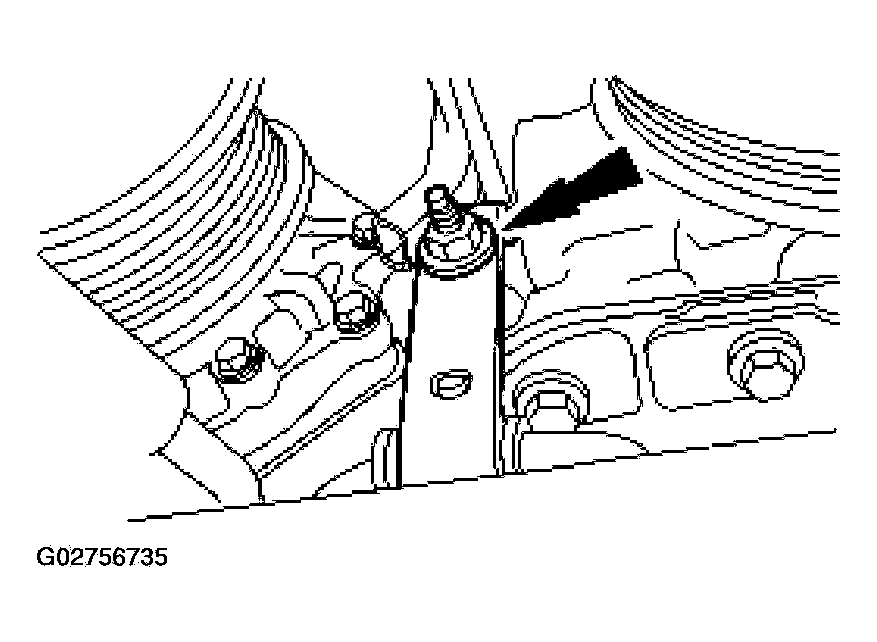

Remove the nut and the bracket.

Fig 4: Removing Nut And Bracket
Courtesy of FORD MOTOR CO.

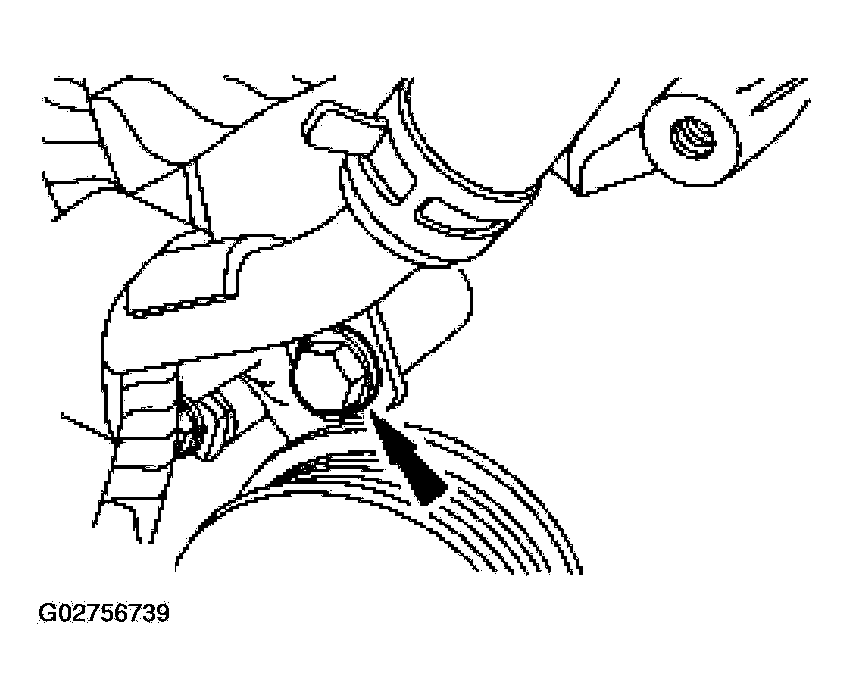

Remove the drain plug and drain the engine oil.

Fig 5: Removing Drain Plug
Courtesy of FORD MOTOR CO.

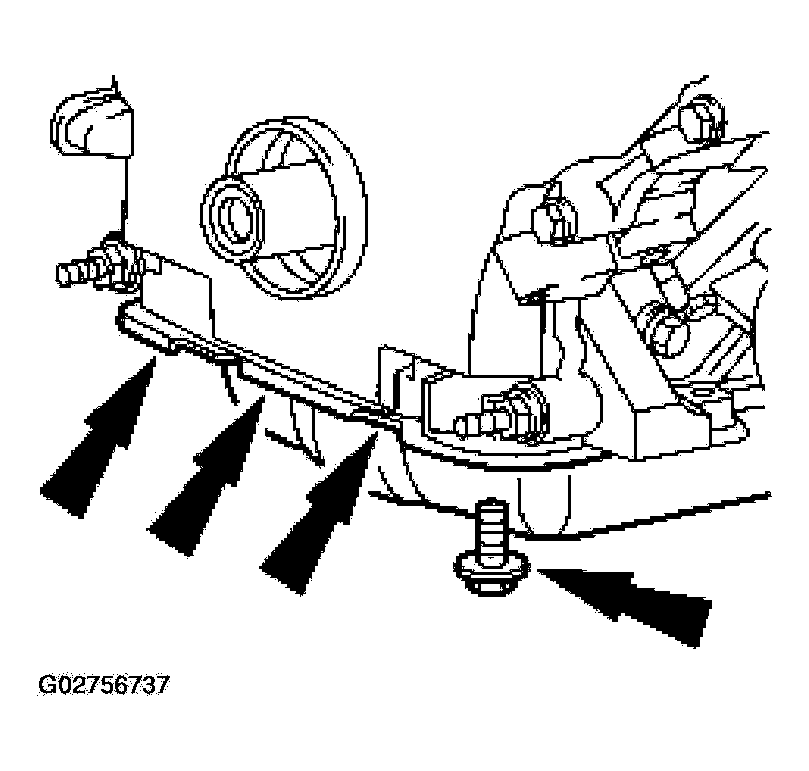

Remove the four front bolts.

Fig 6: Removing Four Front Bolts
Courtesy of FORD MOTOR CO.
Lower the vehicle.

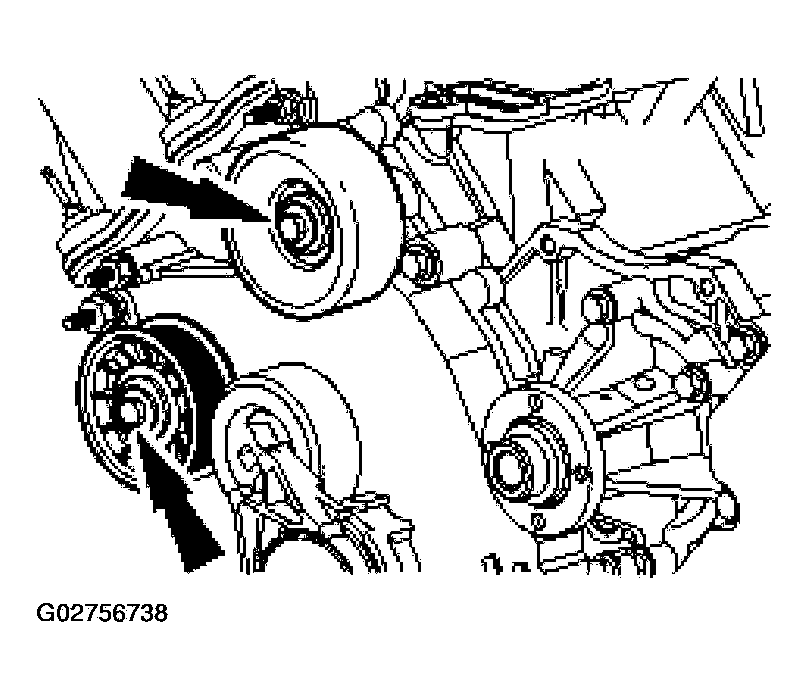

Remove the belt idler pulleys.

Fig 7: Removing Belt Idler Pulleys
Courtesy of FORD MOTOR CO.
Remove the retainer and position the coolant line aside.

Fig 8: Removing Retainer And Coolant Line
Courtesy of FORD MOTOR CO.

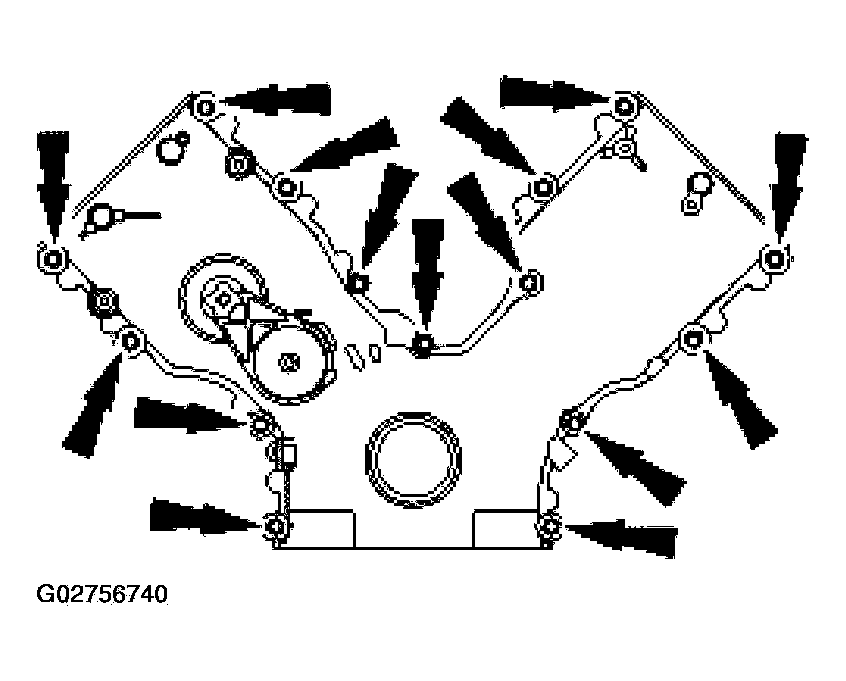

Remove the bolts and the studs, and the engine front cover.

Fig 9: Removing Bolts, Studs, And Engine Front Cover
Courtesy of FORD MOTOR CO.

CAUTION: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths. Use a plastic scraping tool to remove all traces of old sealant.

Remove and discard the gasket, clean and inspect the sealing surfaces.
