Lower Intake Manifold: Installation

  1. Install the lower intake manifold gaskets.
    • Inspect the gaskets, install new gaskets if necessary.

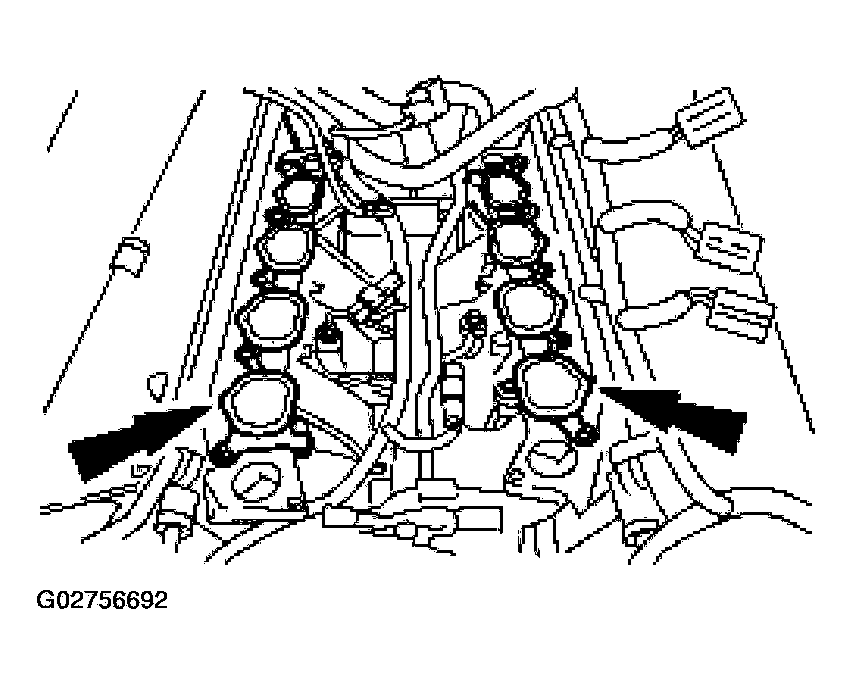

    Fig 1: Inspecting Gaskets
    G02756692Courtesy of FORD MOTOR CO.

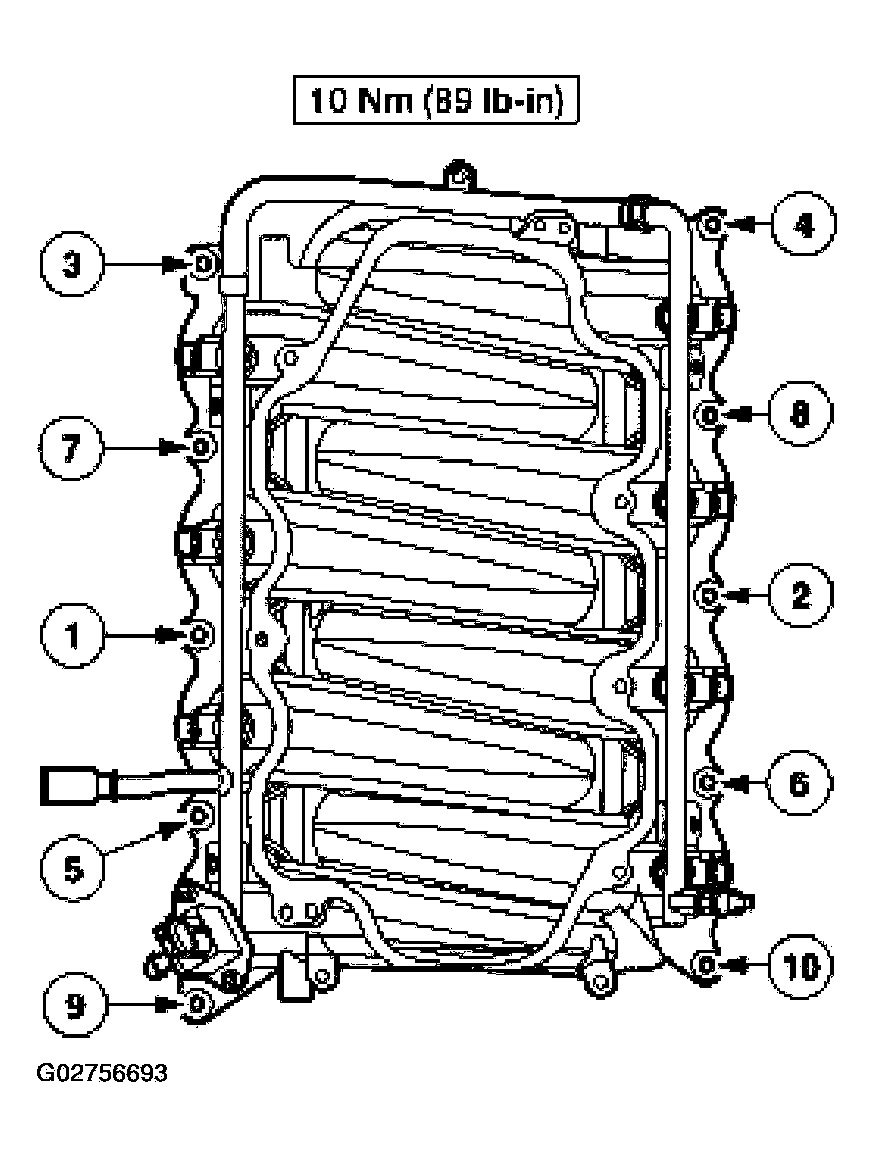

  2. Install the intake manifold fasteners and tighten in the sequence shown.
    Fig 2: Intake Manifold Fasteners Tightening Sequence
    G02756693Courtesy of FORD MOTOR CO.
  3. Connect the fuel charging wiring harness to the rear of the lower intake manifold.
    • Install the manifold.

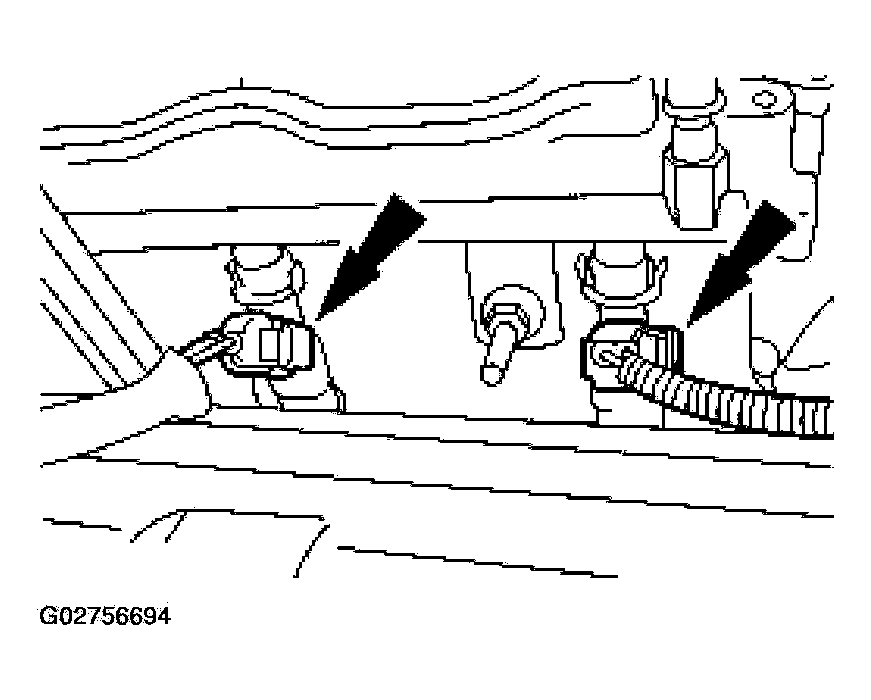

  4. Connect the eight fuel injector electrical connectors.
    Fig 3: Connecting Fuel Injector Electrical Connectors
    G02756694Courtesy of FORD MOTOR CO.
  5. Position the fuel charging wiring and connect to the fuel injection supply manifold in four places.
    Fig 4: Positioning Fuel Charging Wiring
    G02756695Courtesy of FORD MOTOR CO.
  6. Connect the electrical connector and the vacuum hose to the fuel pressure sensor.

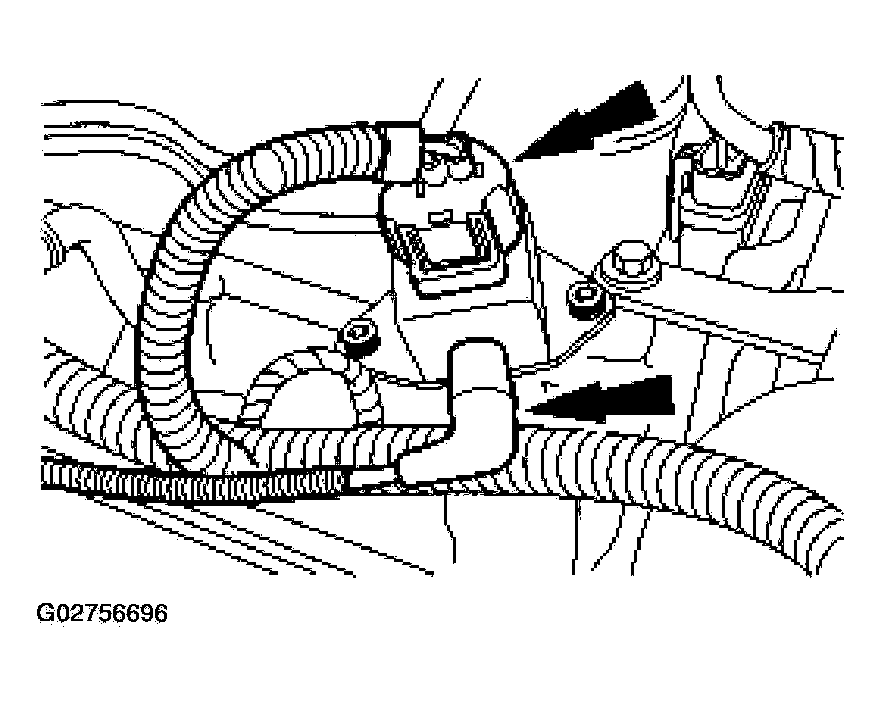

    Fig 5: Connecting Electrical Connector And Vacuum Hose To Fuel Pressure Sensor
    G02756696Courtesy of FORD MOTOR CO.
  7. Install the generator and the bolts.

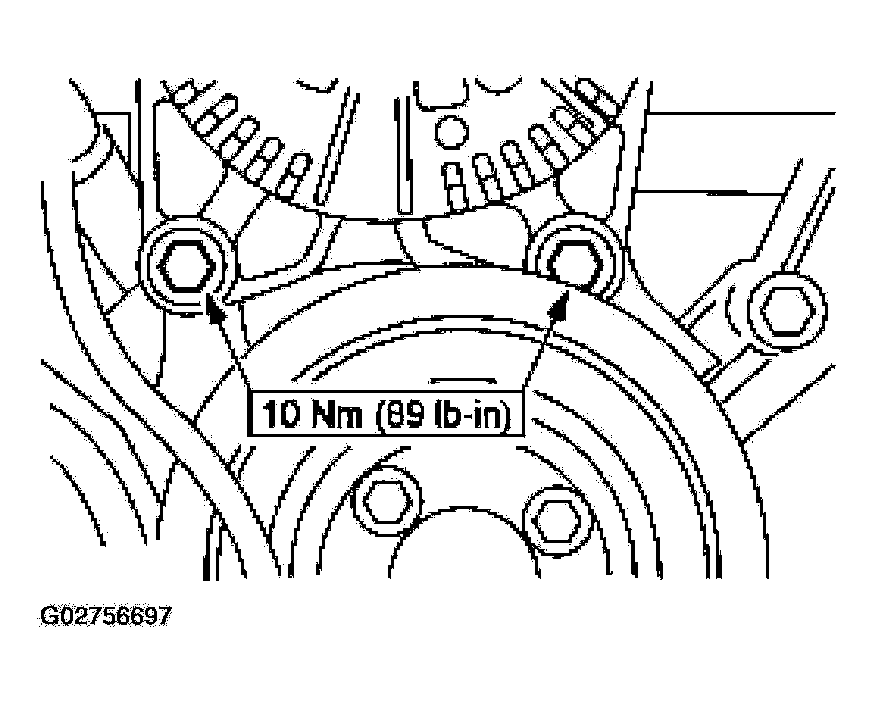

    Fig 6: Installing Generator And Bolts
    G02756697Courtesy of FORD MOTOR CO.
  8. Install the crossover tube pipe.
    • Inspect and install new O-ring seals if necessary.

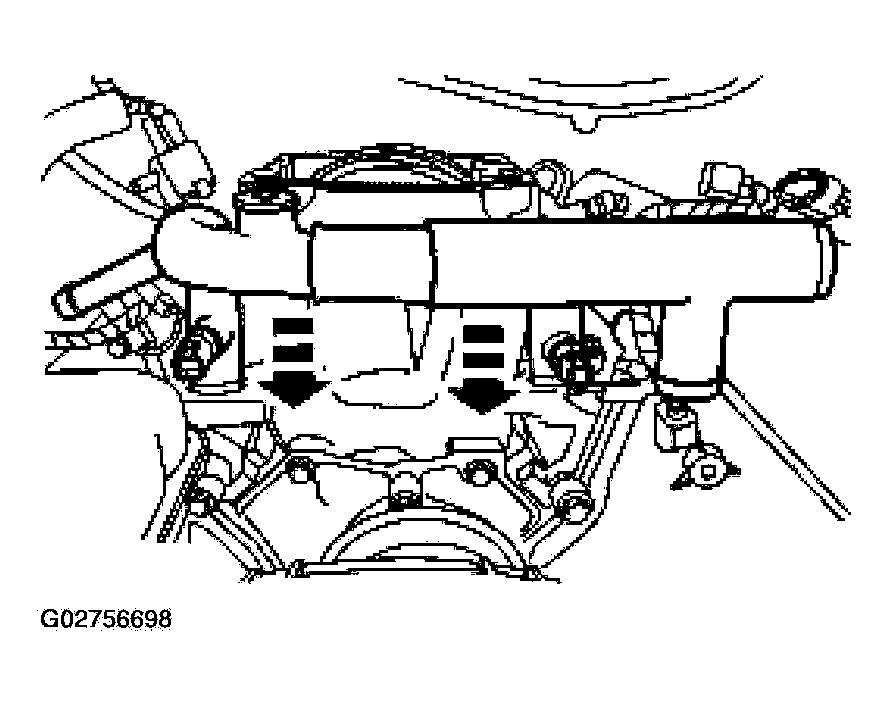

    Fig 7: Installing Crossover Tube Pipe
    G02756698Courtesy of FORD MOTOR CO.
  9. Install the generator support bracket and the four bolts.

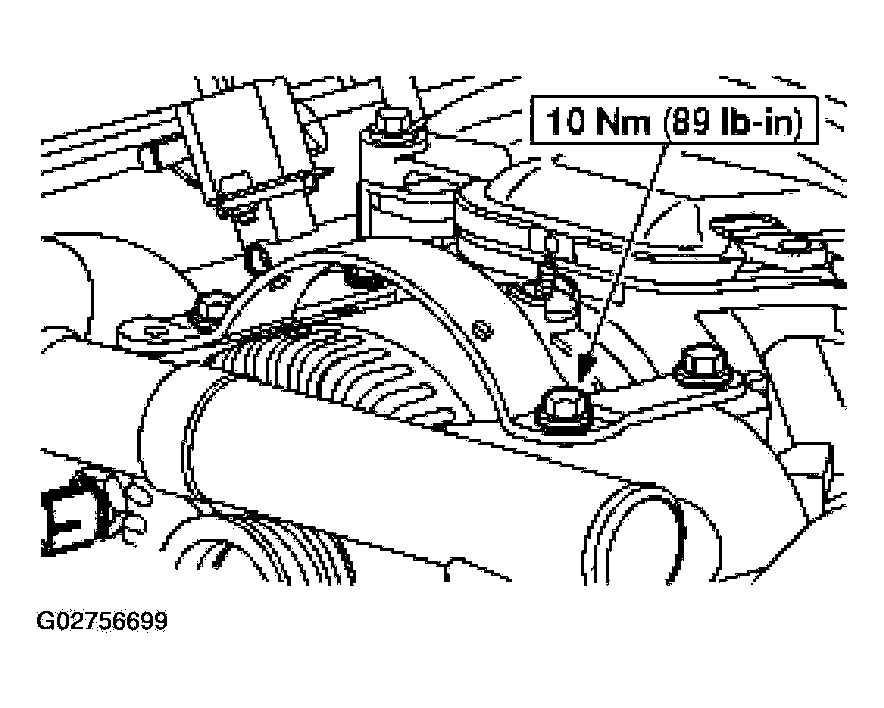

    Fig 8: Installing Generator Support Bracket And Four Bolts
    G02756699Courtesy of FORD MOTOR CO.
  10. Install the accessory drive belt. For additional information, refer to SPECIFICATIONS & DRIVE BELT ROUTING .
  11. Connect the coolant hoses, electrical connectors, and the wiring harness retainer.

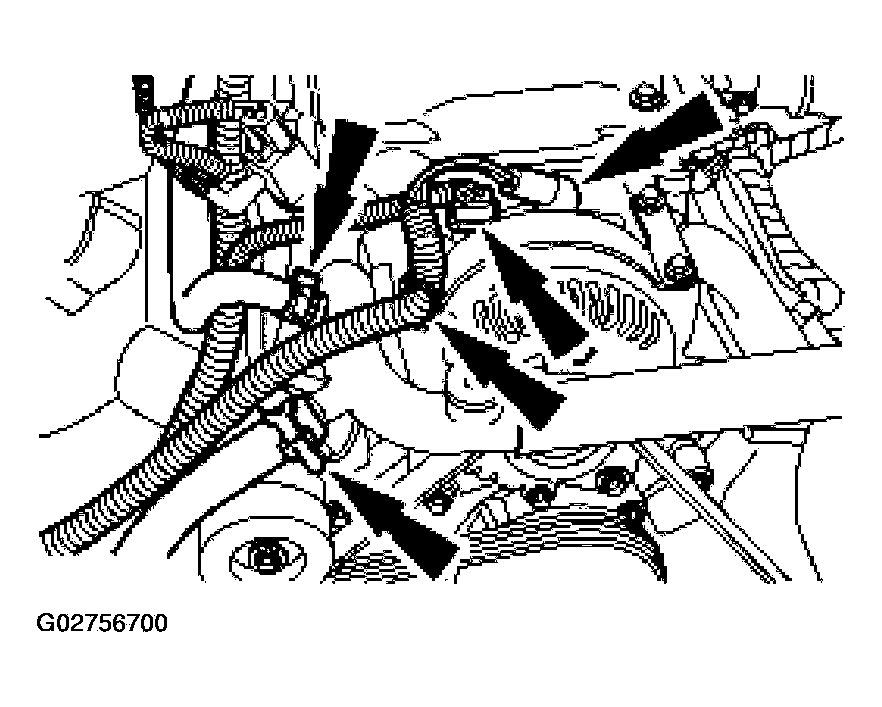

    Fig 9: Connecting Coolant Hoses, Electrical Connectors, And Wiring Harness Retainer
    G02756700Courtesy of FORD MOTOR CO.
  12. Connect the engine coolant temperature (ECT) sensor electrical connectors.

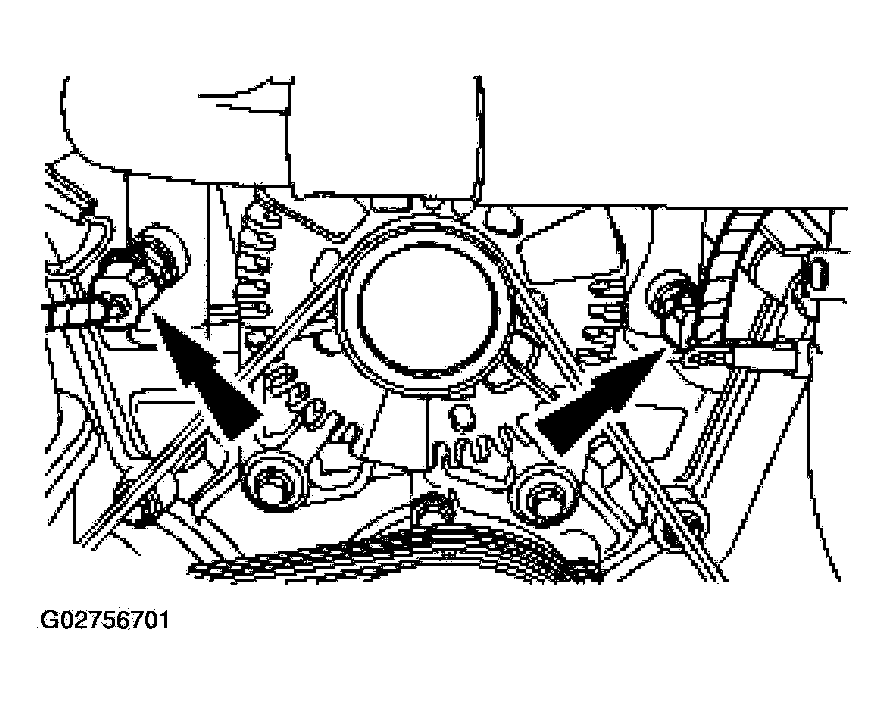

    Fig 10: Connecting Engine Coolant Temperature (ECT) Sensor Electrical Connectors
    G02756701Courtesy of FORD MOTOR CO.
  13. Connect the coolant hoses.

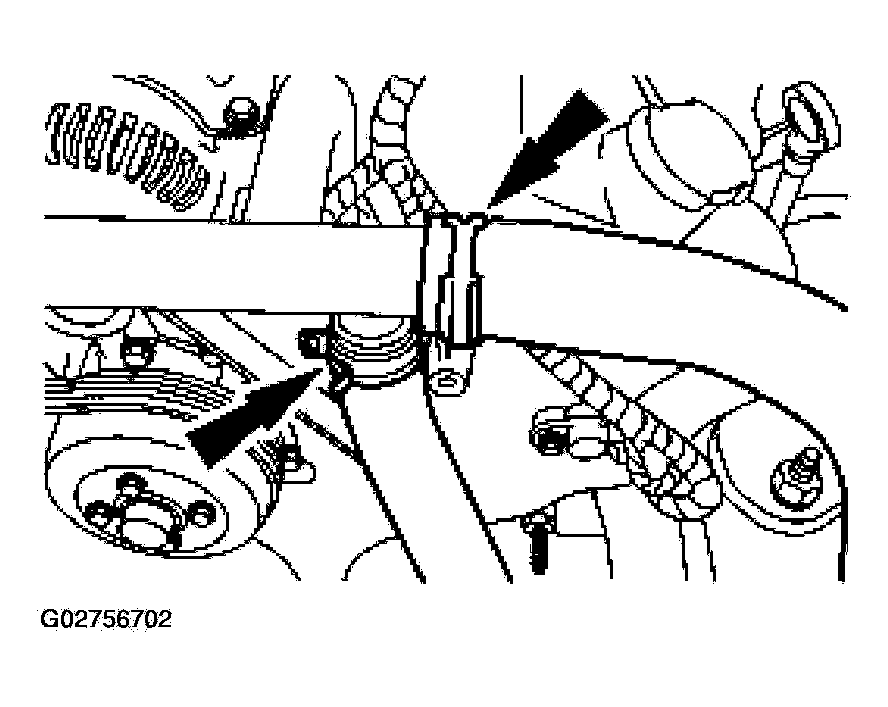

    Fig 11: Connecting Coolant Hoses
    G02756702Courtesy of FORD MOTOR CO.
  14. Connect the fuel hose spring lock coupling. For additional information, refer to FUEL SYSTEM-GENERAL INFORMATION .
  15. Install the upper intake manifold. For additional information, REFER to UPPER INTAKE MANIFOLD .
  16. Fill and bleed the engine cooling system. For additional information, refer to ENGINE COOLING .
