Symptom Chart

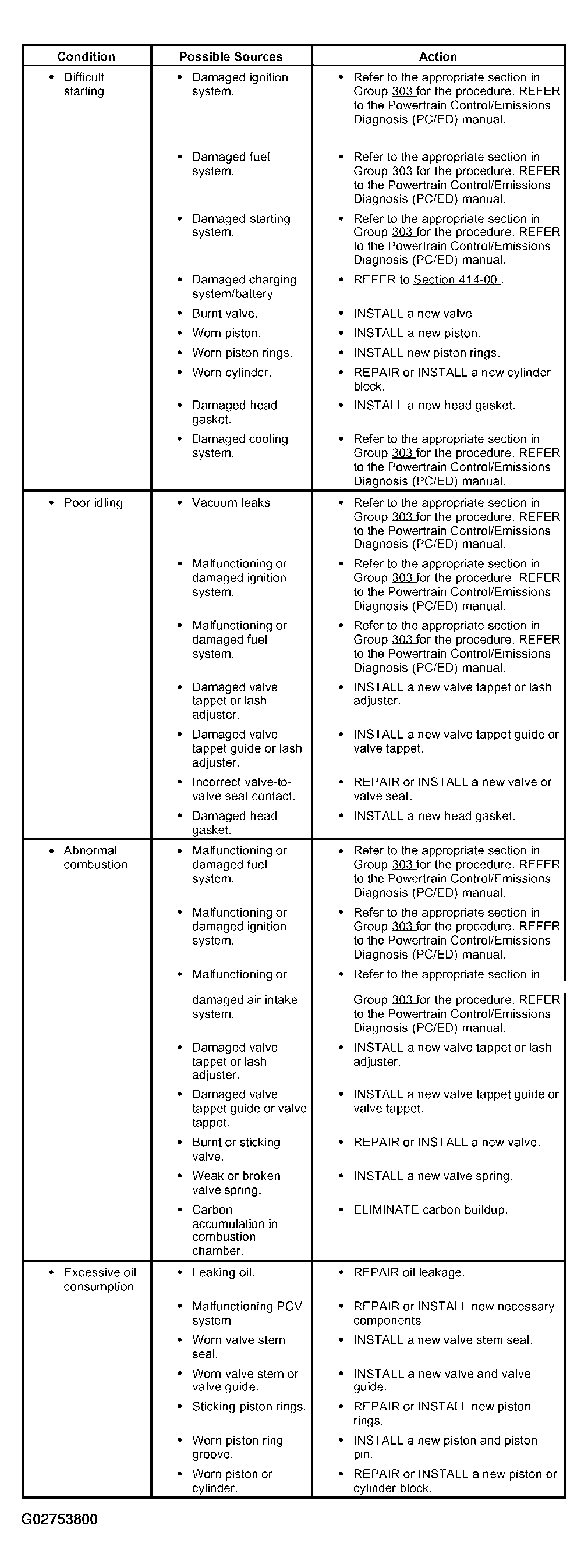

Fig 1: Identifying Symptom Chart (1 Of 2)
G02753800Courtesy of FORD MOTOR CO.

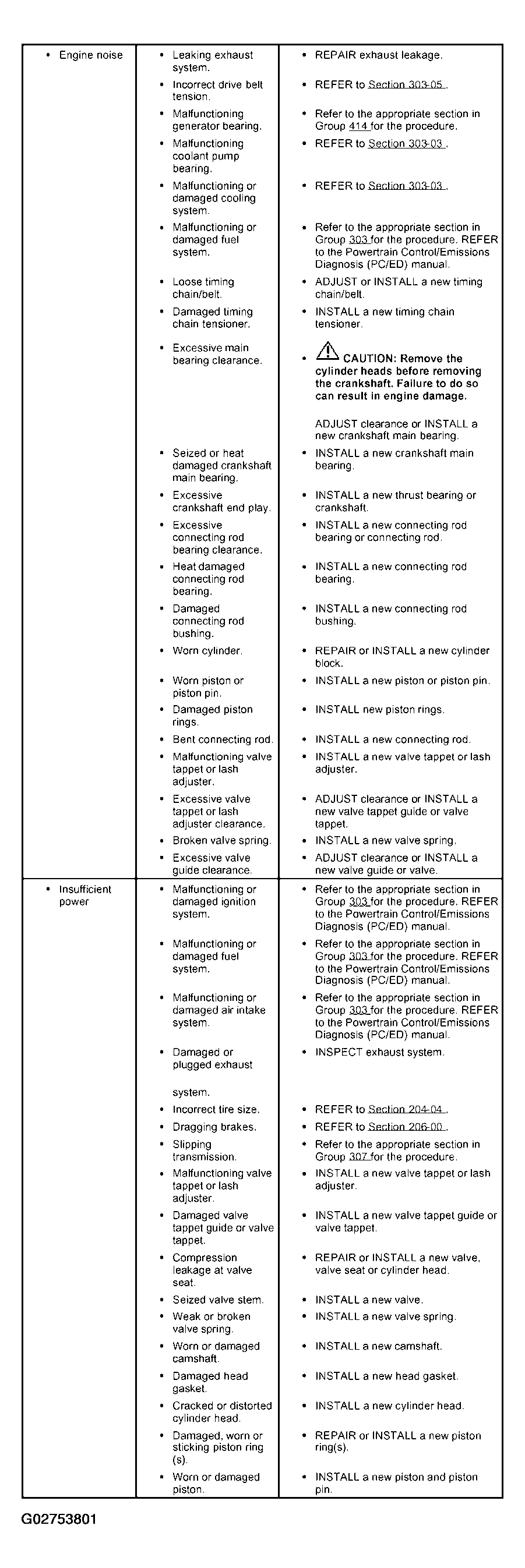

Fig 2: Identifying Symptom Chart (2 Of 2)
G02753801Courtesy of FORD MOTOR CO.
