Cylinder Head - Distortion

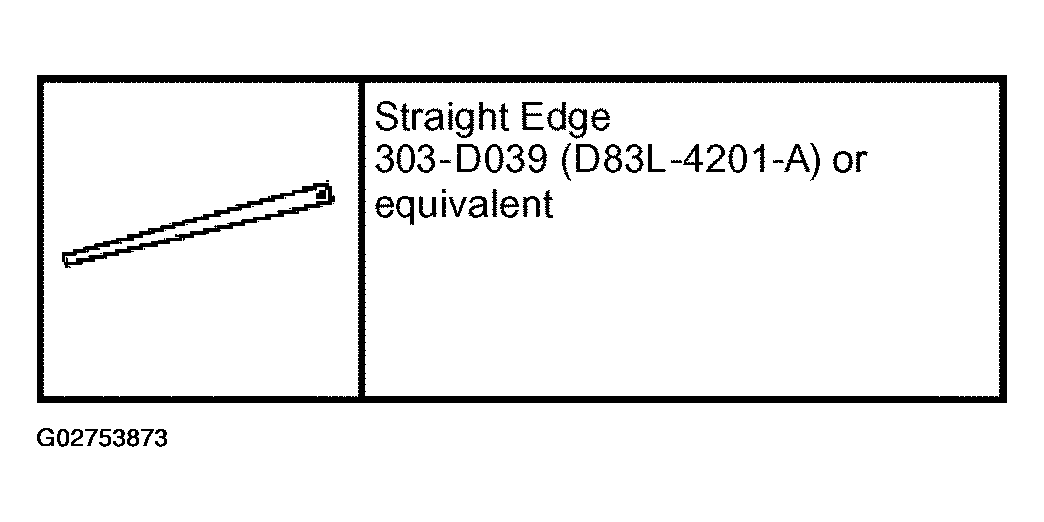

Fig 1: Identifying Special Tools
G02753873Courtesy of FORD MOTOR CO.
  1. Use a straight edge and a feeler gauge to inspect the cylinder head for flatness. If the cylinder head is distorted, install a new cylinder head.

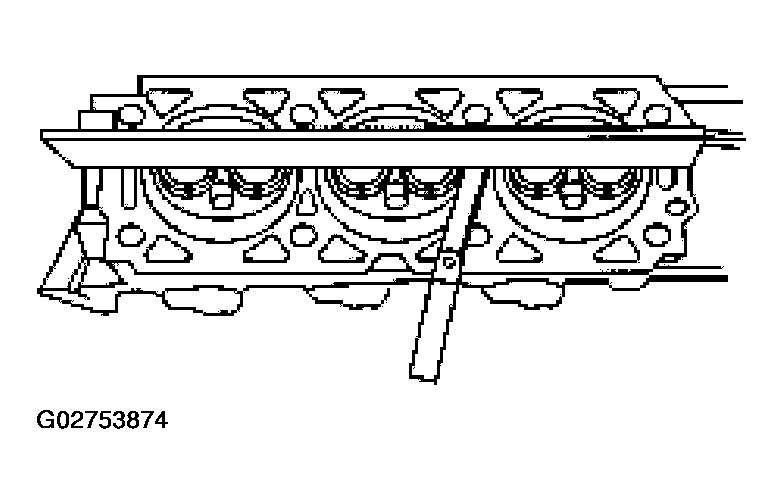

Fig 2: Checking Cylinder Head Using Straight Edge And Feeler Gauge
G02753874Courtesy of FORD MOTOR CO.
