Fuel Pump Module: Removal

Remove the fuel tank. For additional information, REFER to FUEL TANK .
Disconnect the pressure transducer connector on the top rear corner of the fuel tank.
Clean the area around the fuel pump mounting flange.
CAUTION: The fuel pump must be handled carefully to avoid damage to the float arm and the filter.
Remove the bolts and the fuel pump.

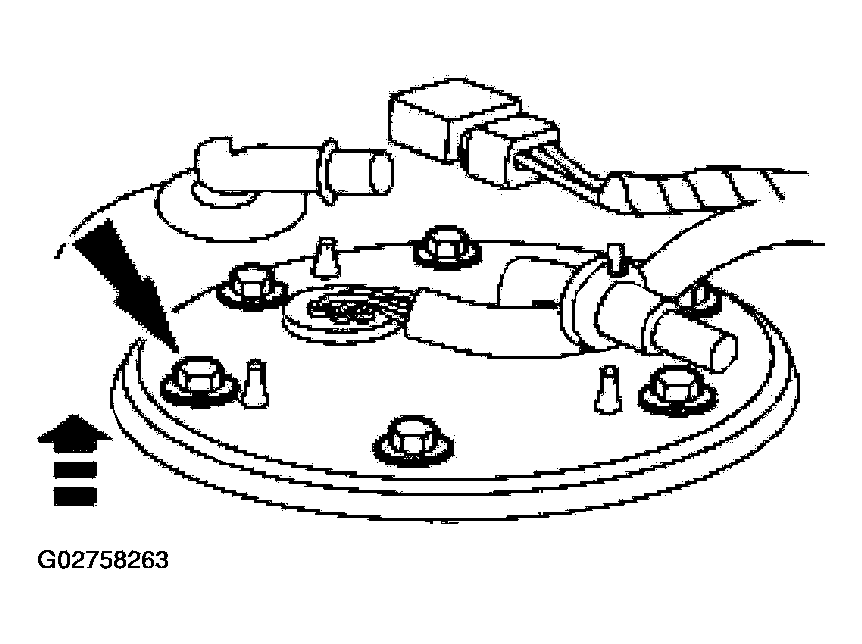

Fig 1: Removing Bolts And Fuel Pump
Courtesy of FORD MOTOR CO.
Remove and discard the fuel pump mounting gasket.
