Component Locations
WARNING: This page is about a different car, the 2003 Mercury Marauder, 2003 Mercury Grand Marquis, and 2003 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

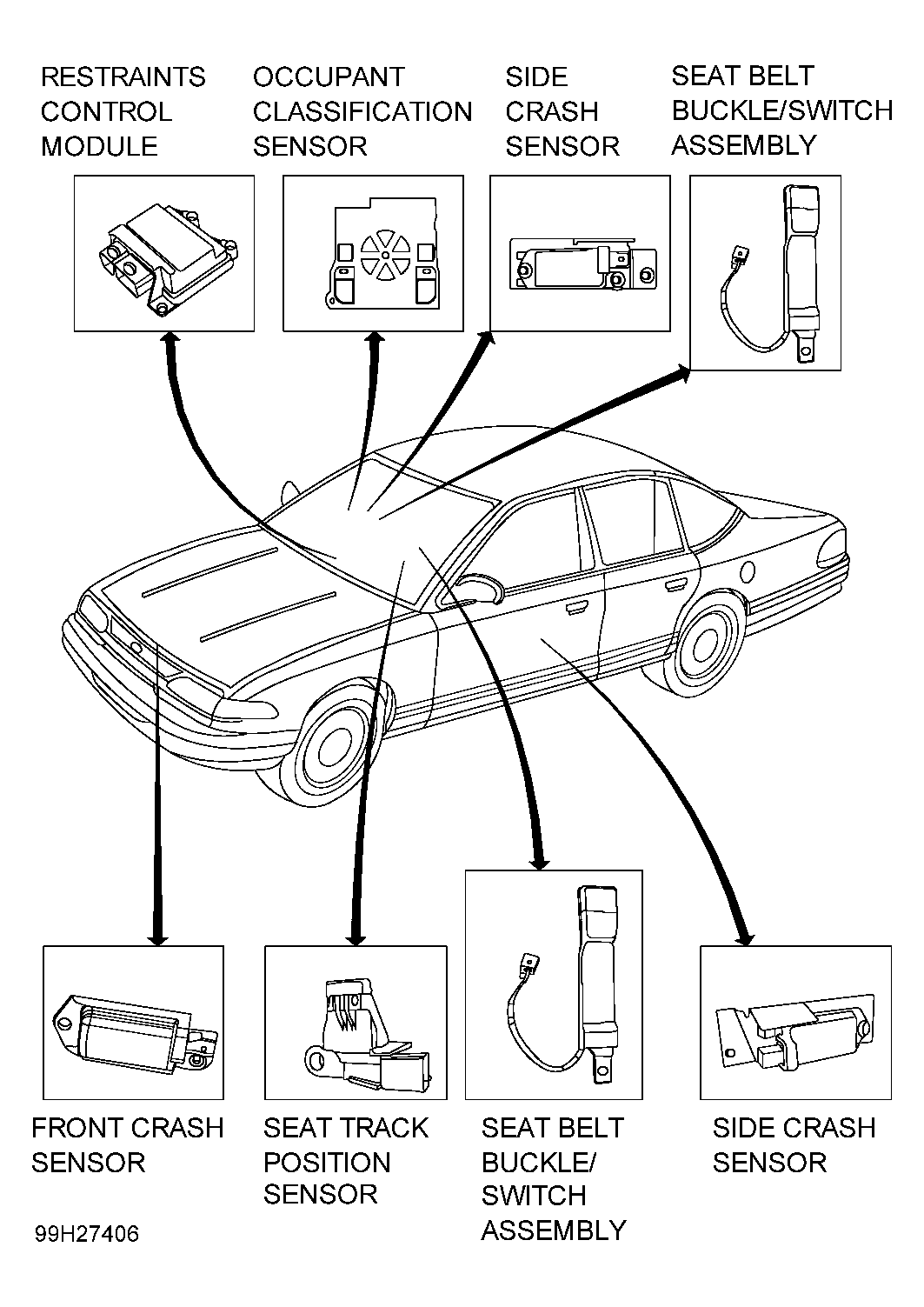

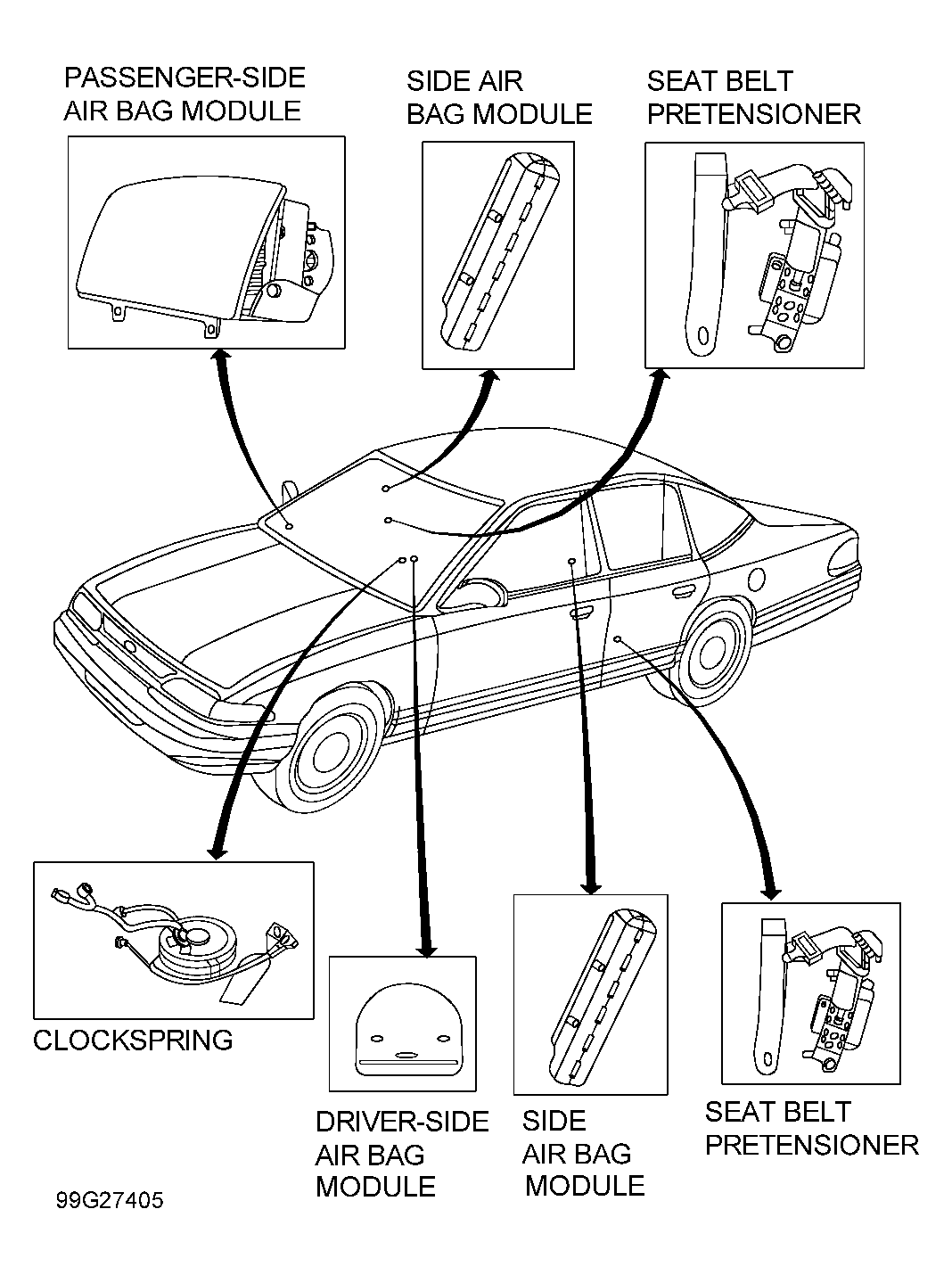

RESTRAINT SYSTEM COMPONENT LOCATIONS
| Component | (1) Location | ||
|---|---|---|---|
| Clockspring | Steering column, below steering wheel | ||
| Driver-side air bag module | Front face of steering wheel | ||
| Front crash sensor | On radiator support next to hood latch | ||
| Occupant classification sensor | Under front passenger's seat cushion | ||
| Passenger-side air bag module | Right side of instrument panel, above glove box | ||
| Restraints control module | Center tunnel, below instrument panel | ||
| Seat belt pretensioner | Integrated with right & left front seat belt retractors | ||
| Seat track position sensor | On left front seat frame | ||
| Side air bag modules | Behind outboard bolster of front seat backs | ||
|
|||
