Symptom Chart

WARNING: This page is about a different car, the 2003 Mercury Marauder, 2003 Mercury Grand Marquis, and 2003 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

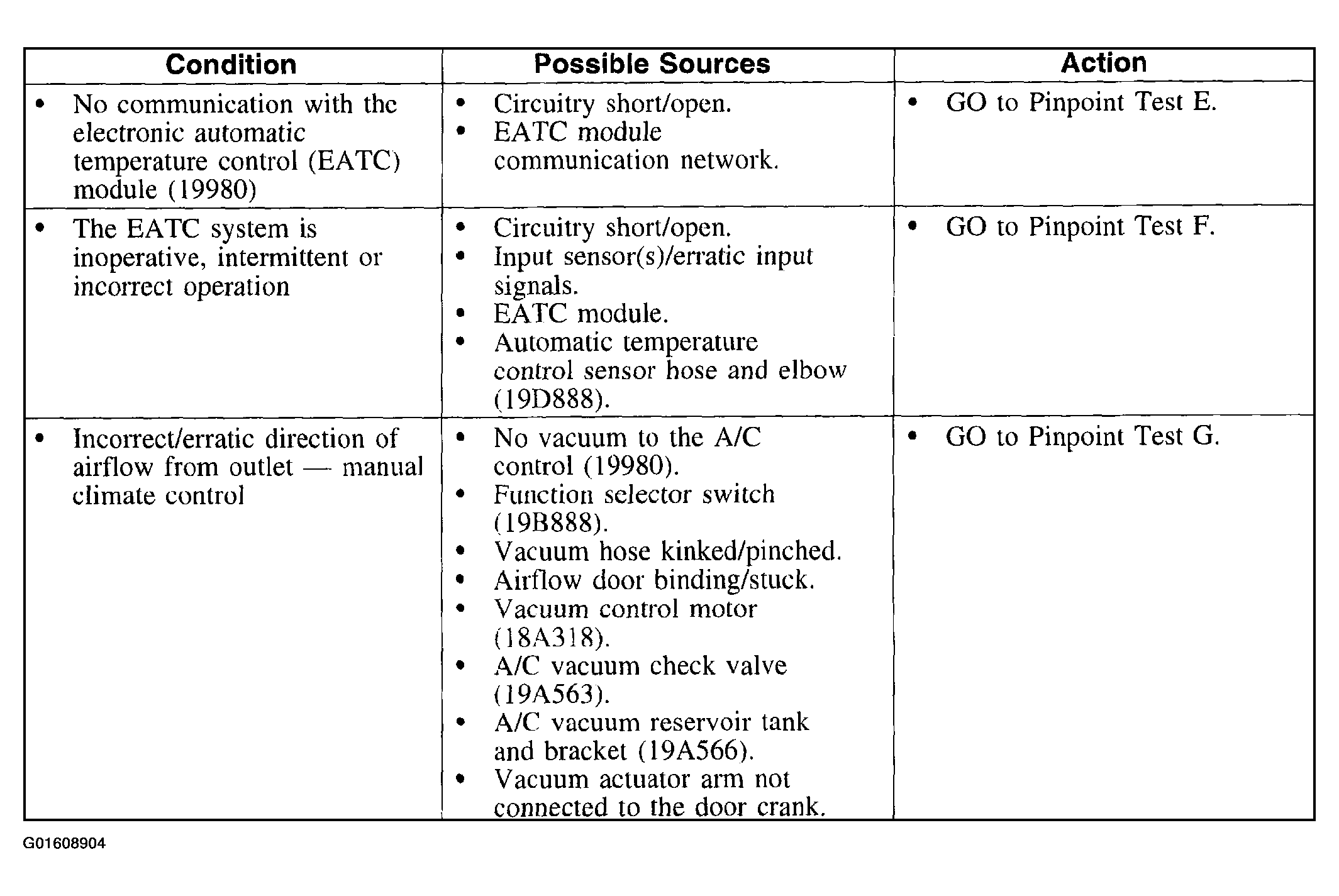

Fig 1: Symptom Chart (1 Of 3)
G01608904Courtesy of FORD MOTOR CO.

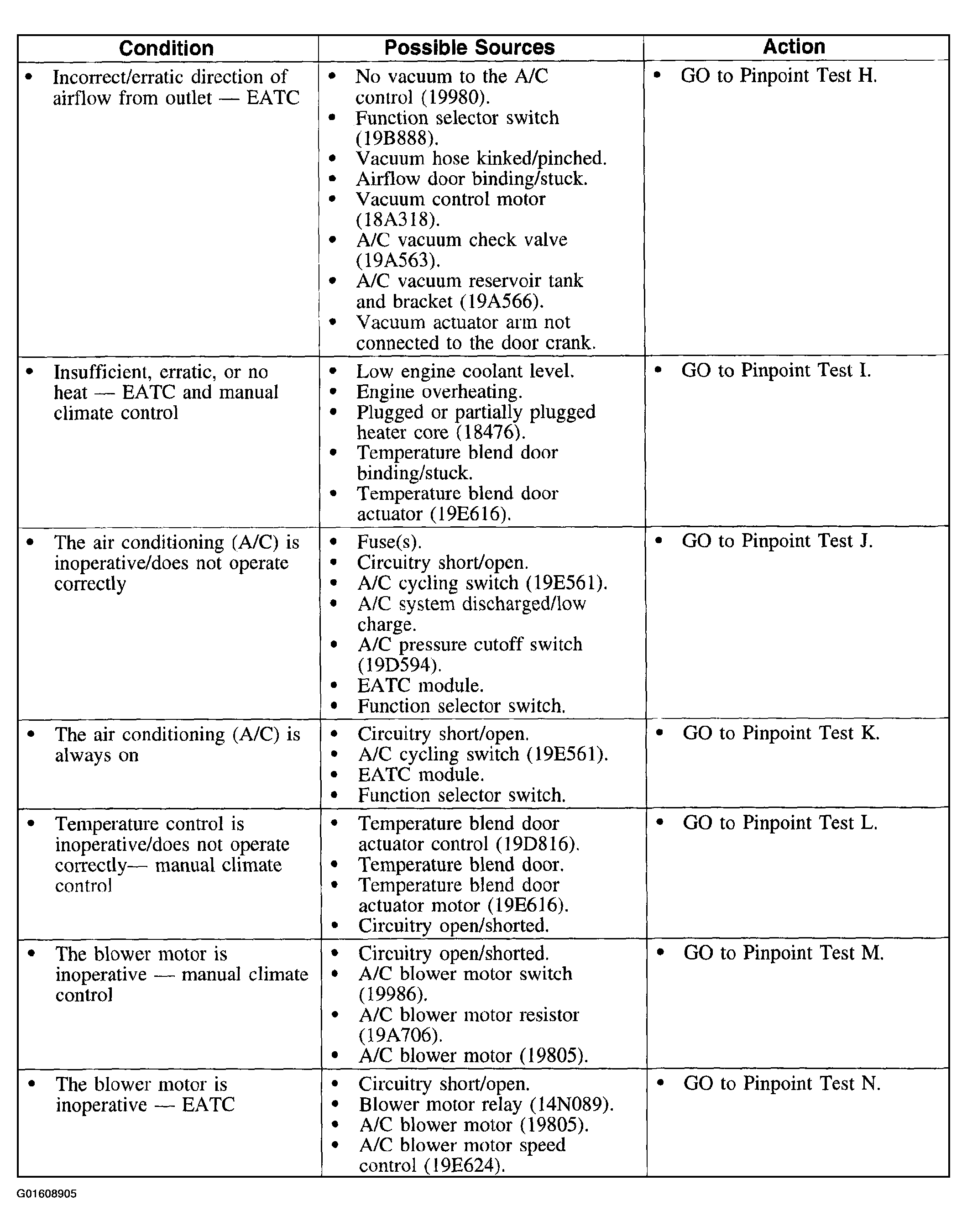

Fig 2: Symptom Chart (2 Of 3)
G01608905Courtesy of FORD MOTOR CO.

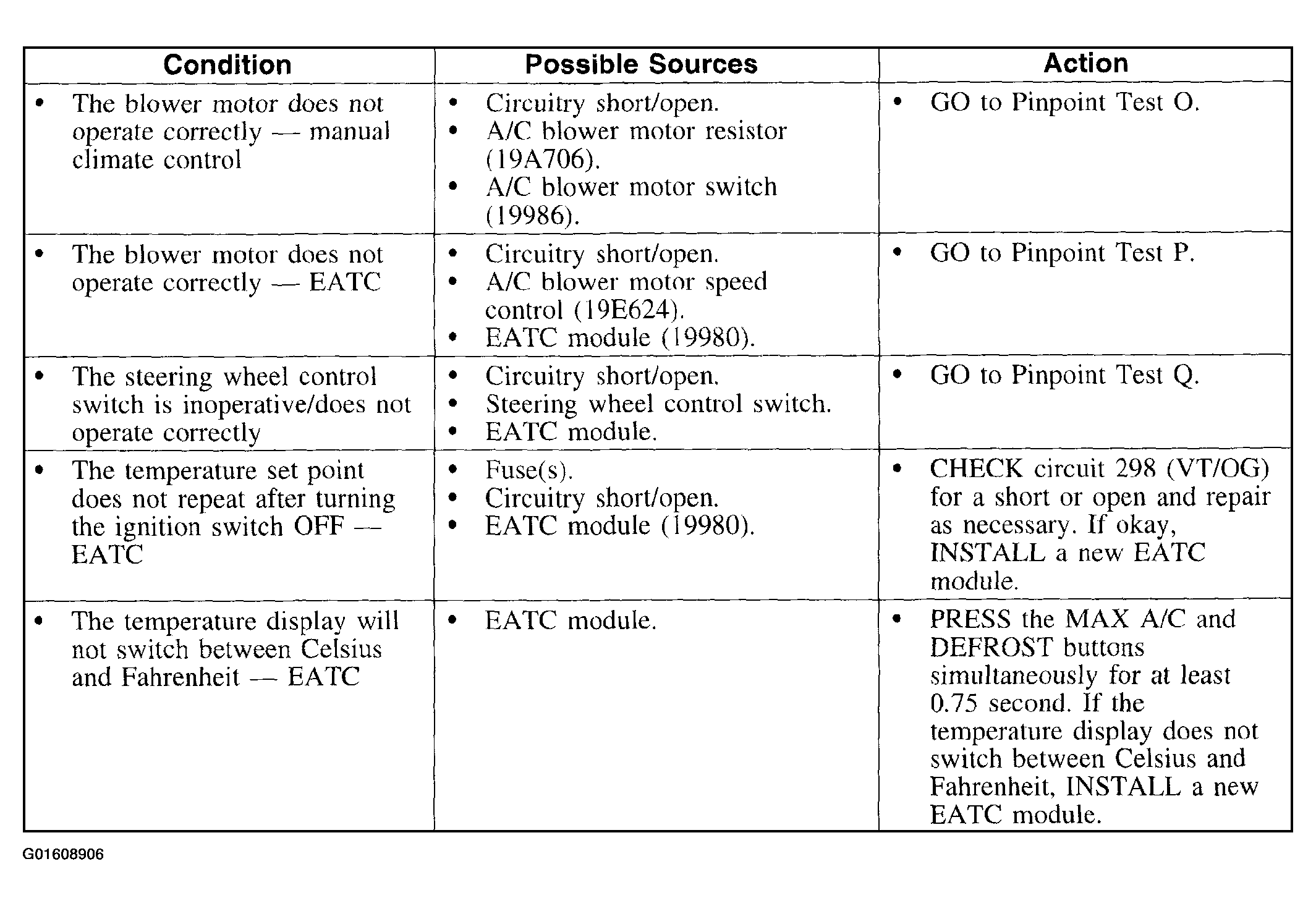

Fig 3: Symptom Chart (1 Of 3)
G01608906Courtesy of FORD MOTOR CO.
