Removal and Installation

WARNING: This page is about a different car, the 2003 Mercury Marauder, 2003 Mercury Grand Marquis, and 2003 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

Remove the climate control assembly. For additional information, refer to CLIMATE CONTROL ASSEMBLY-MANUAL A/C .
Pull and remove the function selector switch knob.
Remove the function selector switch.
1. Release the tabs.
2. Remove the function selector switch.

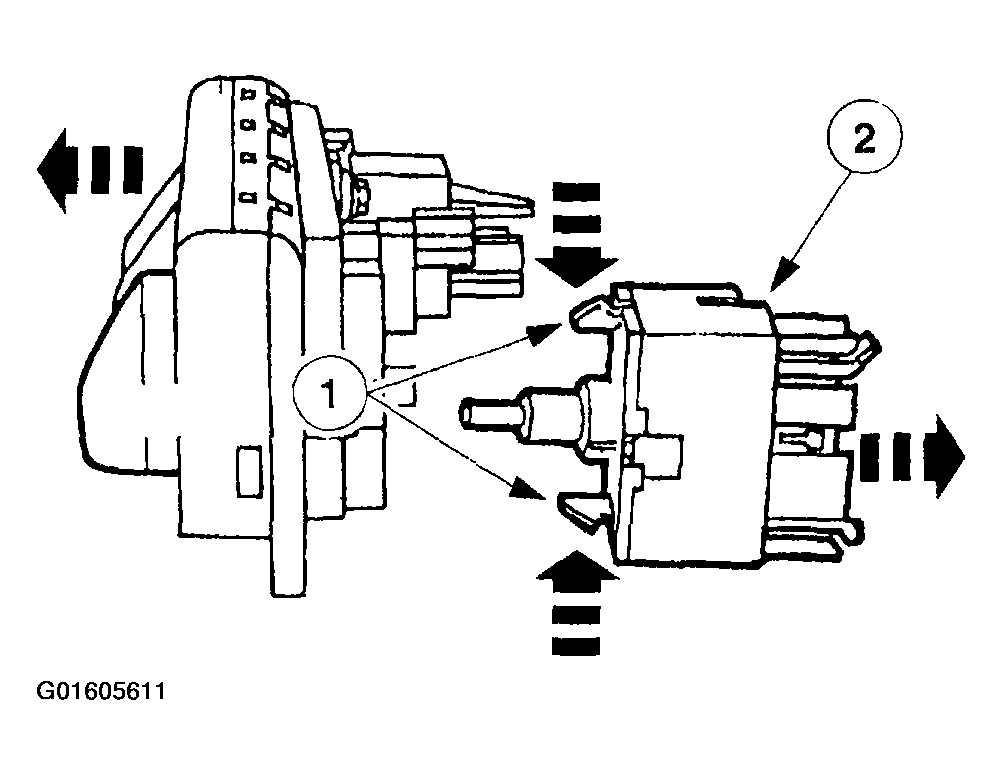

Fig 1: Removing Function Selector Switch
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
