Pinpoint Test D: The Transmission Control Switch (TCS) Does Not Operate Correctly

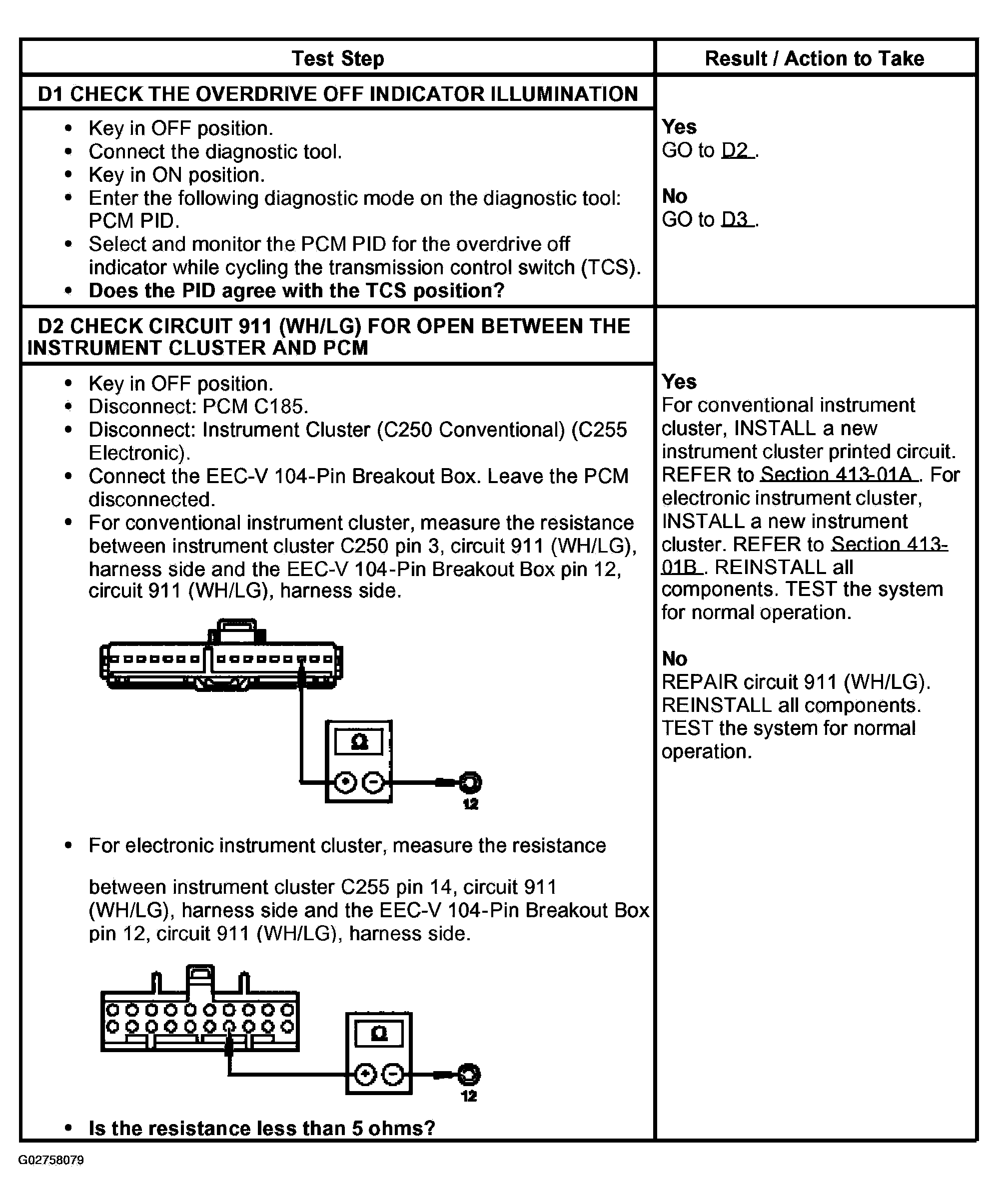

Fig 1: Pinpoint Test D Chart - Transmission Control Switch (TCS) Does Not Operate Correctly (D1-D2)
G02758079Courtesy of FORD MOTOR CO.

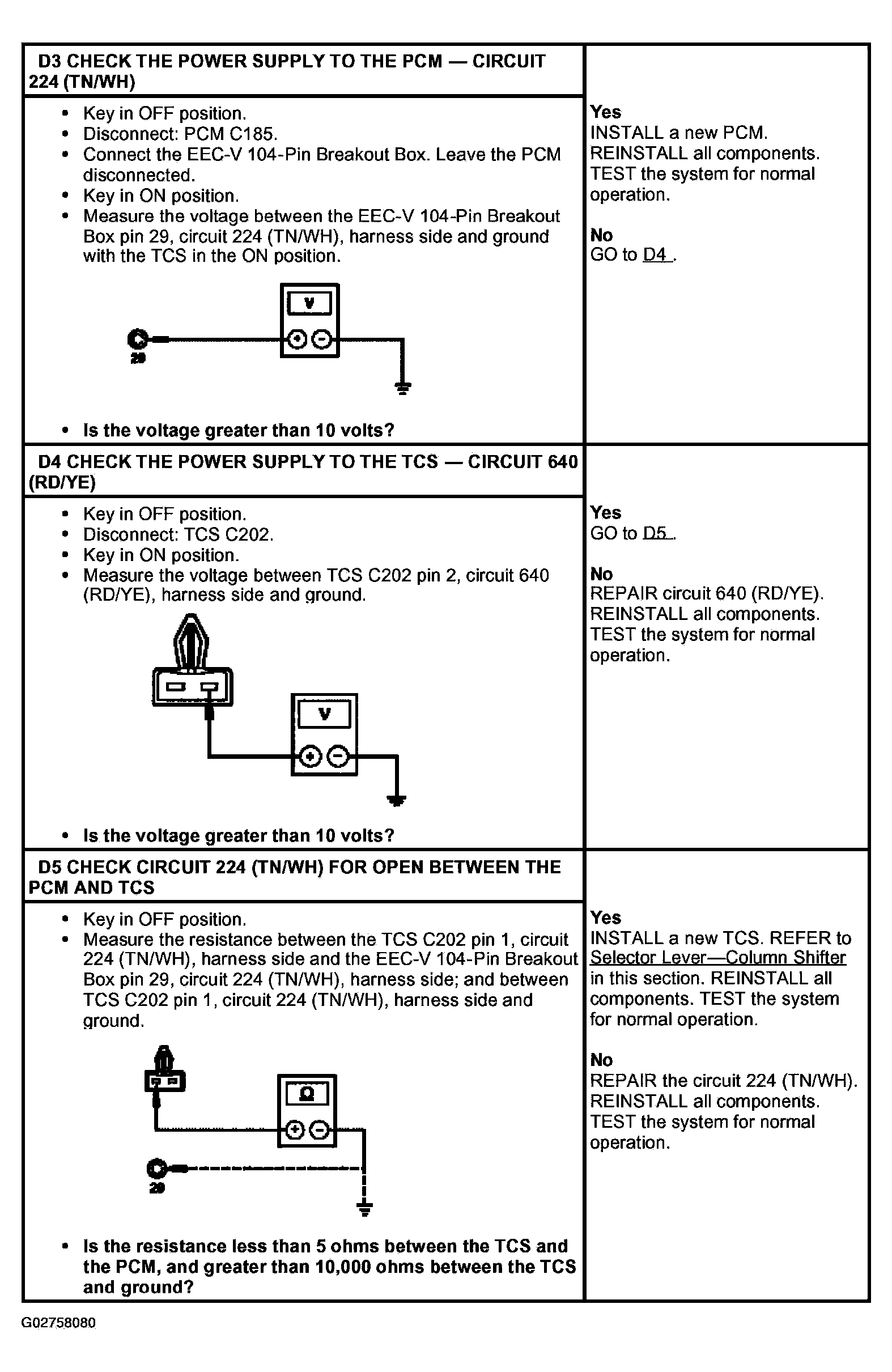

Fig 2: Pinpoint Test D Chart - Transmission Control Switch (TCS) Does Not Operate Correctly (D3-D5)
G02758080Courtesy of FORD MOTOR CO.
