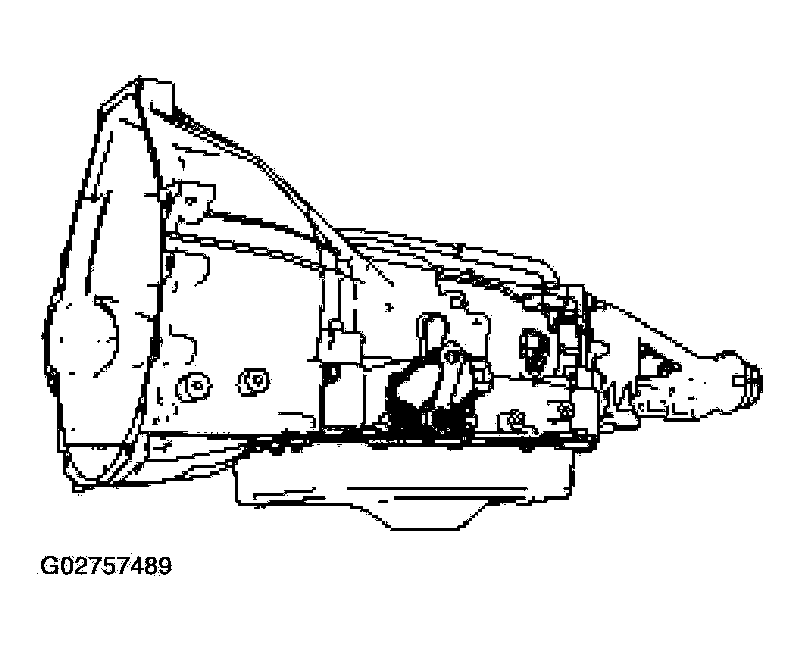

Transmission Description
This transmission has the following features:
- Wide ratio gears
- Four speeds
- Rear wheel drive
- Automatic
- Electronic shift
- Torque converter clutch control
- Line pressure controls
The transmission uses a Ravigneaux-style double-pinion gearset with two bands, one one-way roller clutch, one mechanical diode and four friction clutches to produce four forward gears and Reverse.
