Output Shaft and Direct Clutch Cylinder: Notes

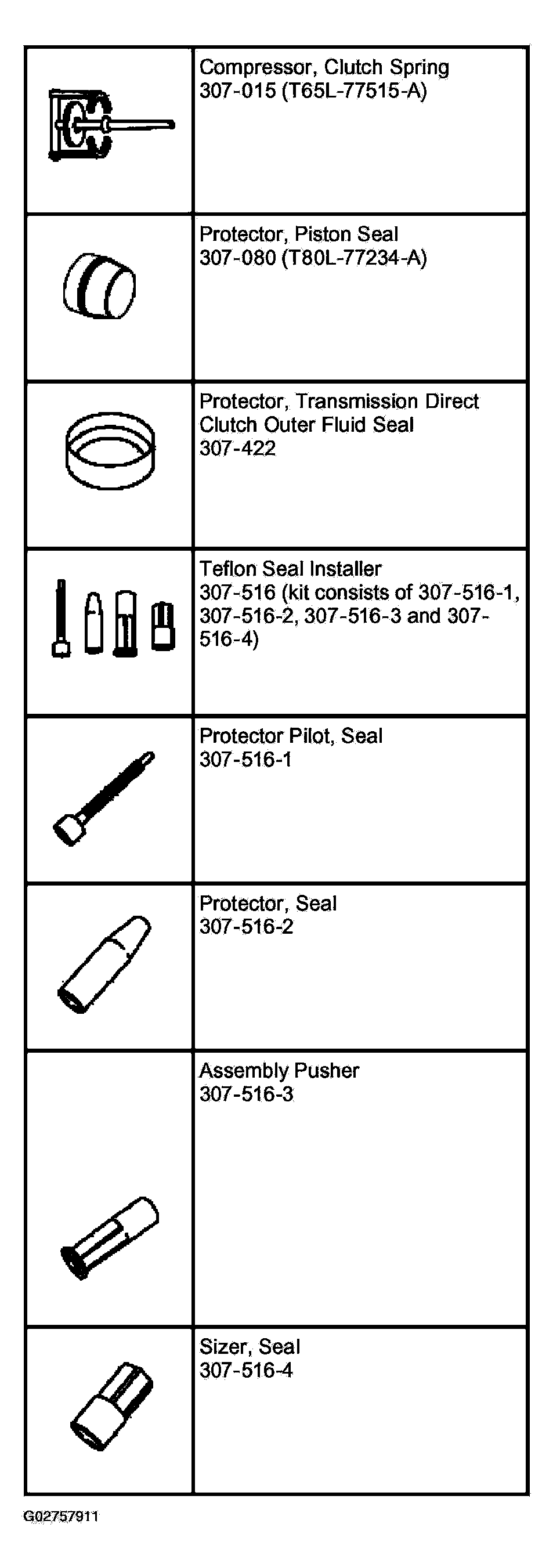

Fig 1: Identifying Special Tool(s)

Courtesy of FORD MOTOR CO.

MATERIAL SPECIFICATIONS

Item	Specification
MERCON® V Automatic Transmission Fluid XT-5-QM	MERCON® V

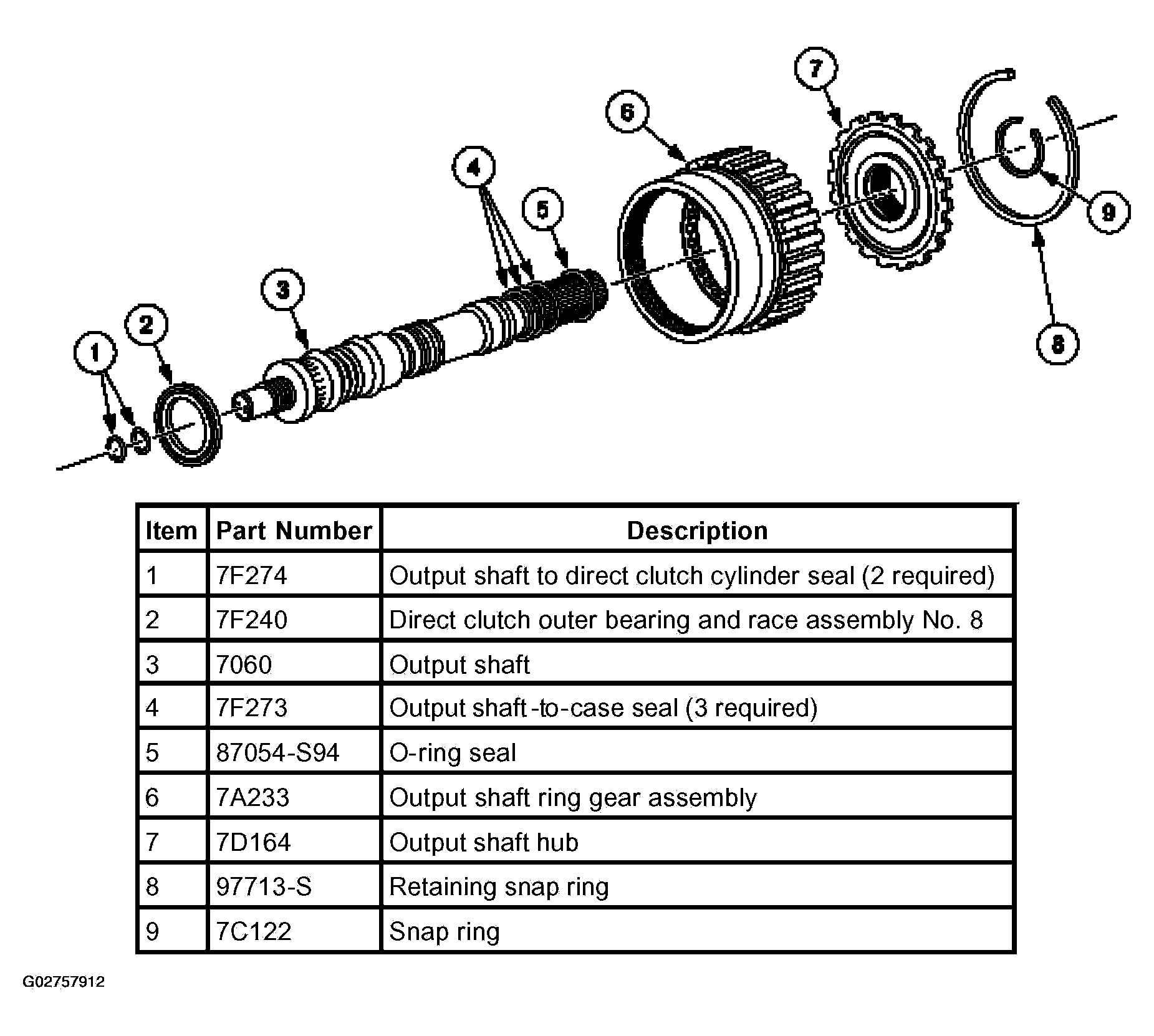

Fig 2: Disassembled View Of Output Shaft And Hub

Courtesy of FORD MOTOR CO.

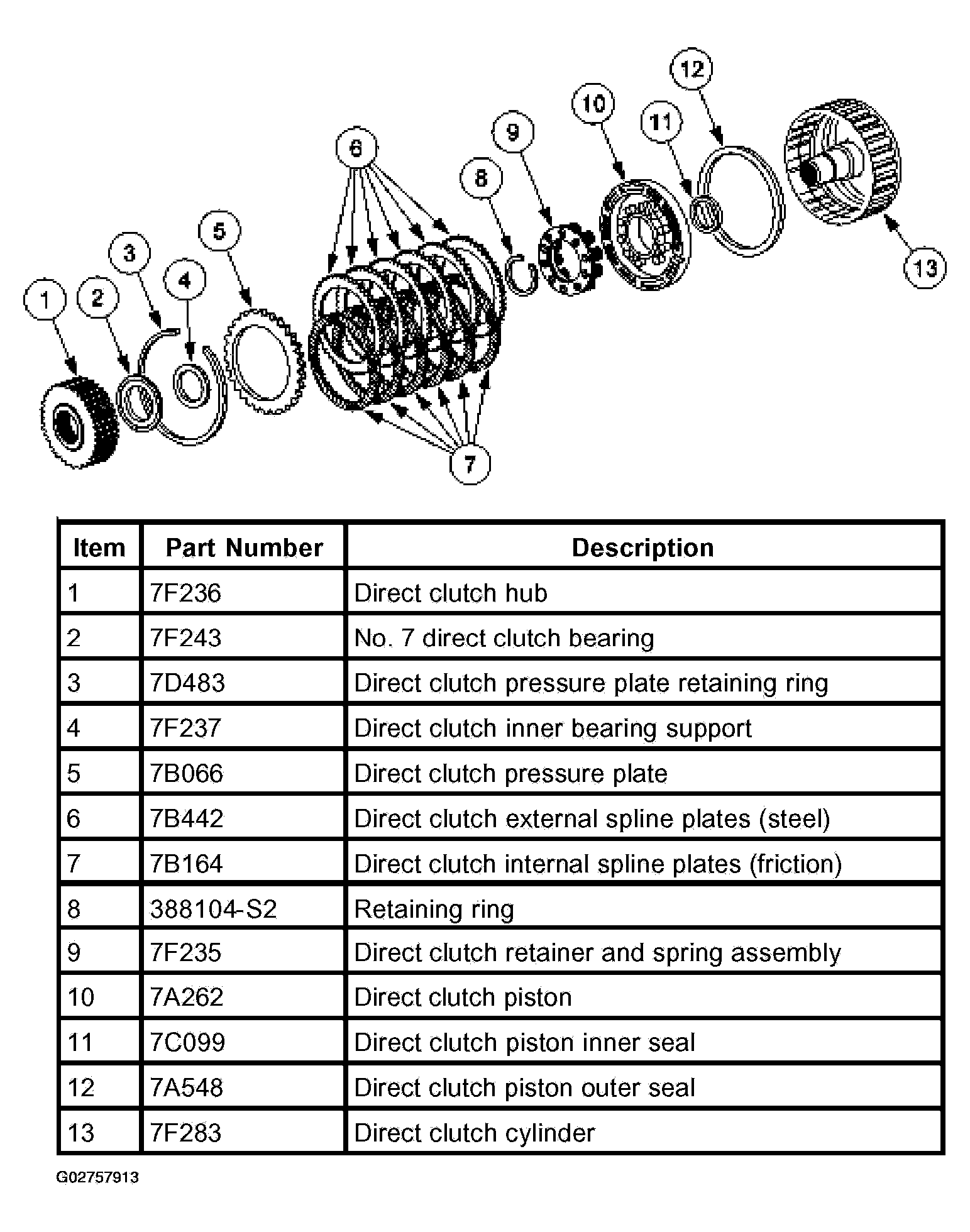

Fig 3: Disassembled View Of Direct Clutch

Courtesy of FORD MOTOR CO.
