Disassembly And Assembly

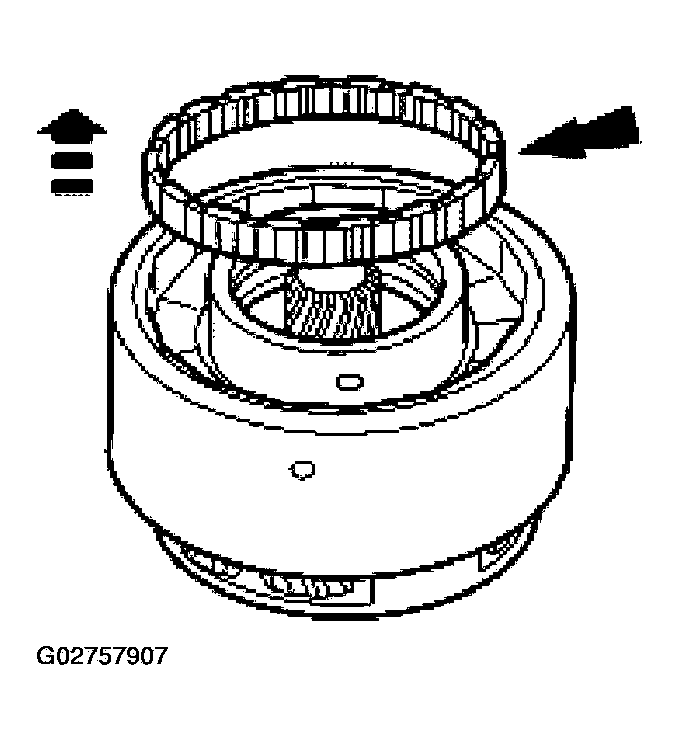

- Rotate the center support counterclockwise and lift to remove the planetary gear support.
- Remove the planetary one-way clutch.
- To assemble, reverse the disassembly procedure.
NOTE:
Inspect the outer and inner races for scores or damaged surface areas where rollers contact the races. Inspect the rollers and springs for excessive wear or damage. Inspect the spring and cage for bent or damaged spring retainers.
