Band And Clutch Application Chart B
Band And Clutch Application Chart B

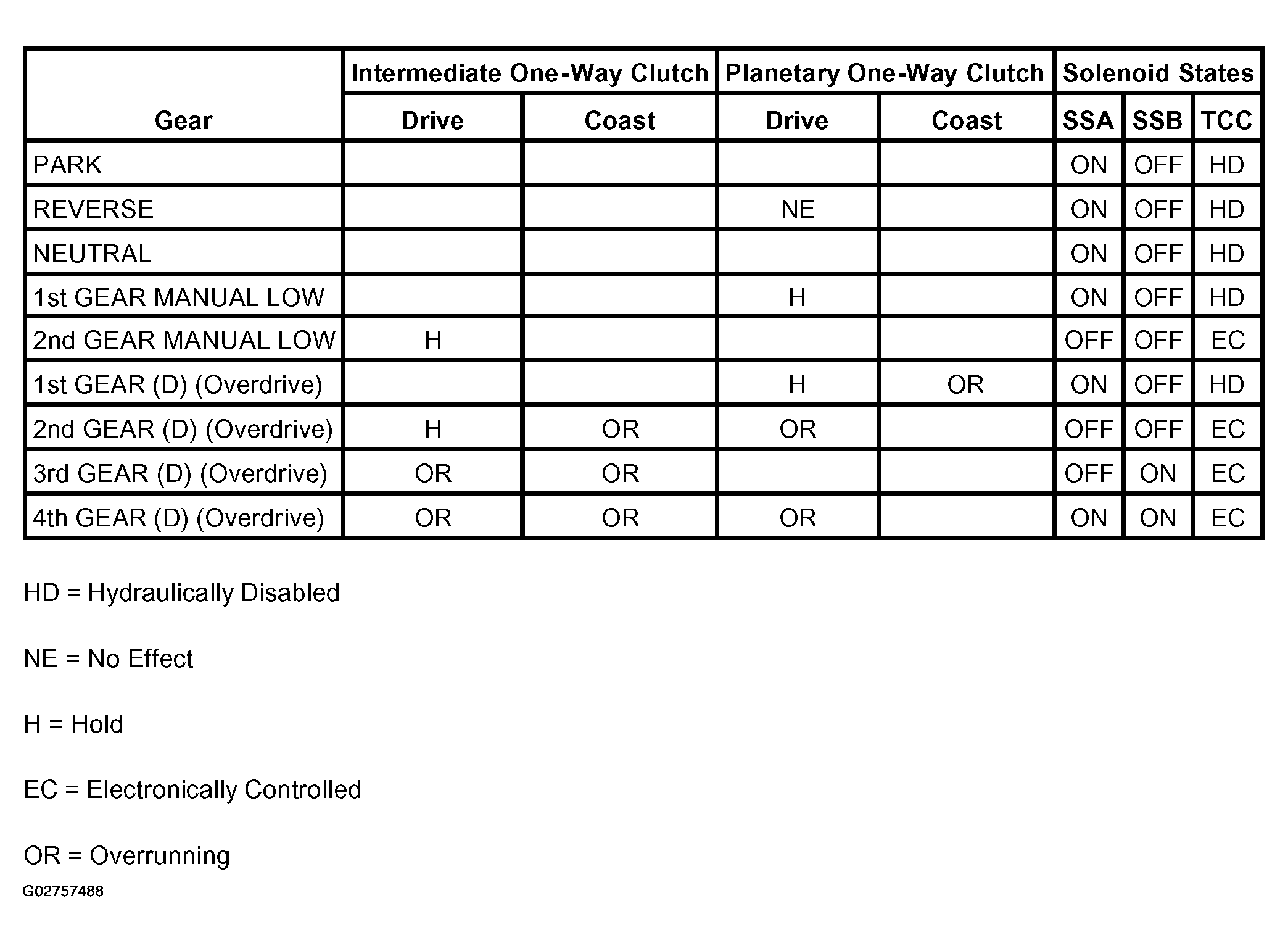

Fig 1: Band And Clutch Application Chart B
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
