Powertrain Control Module (PCM)

  1. Disconnect the battery ground cable. For additional information, refer to BATTERY & CHARGING SYSTEM .
  2. Remove the parts in the order indicated in Fig 1.

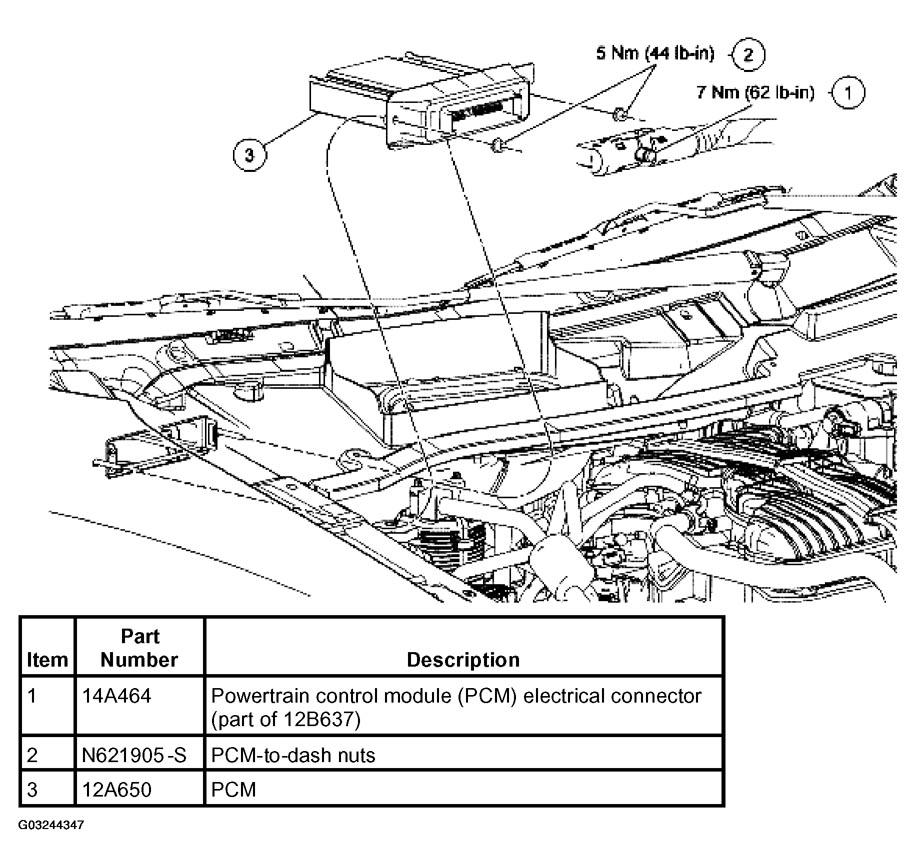

    Fig 1: Powertrain Control Module (PCM) Parts Removal Sequence
    G03244347Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
