Pinpoint Test A: The Shift Interlock System Does Not Release/Lock Correctly

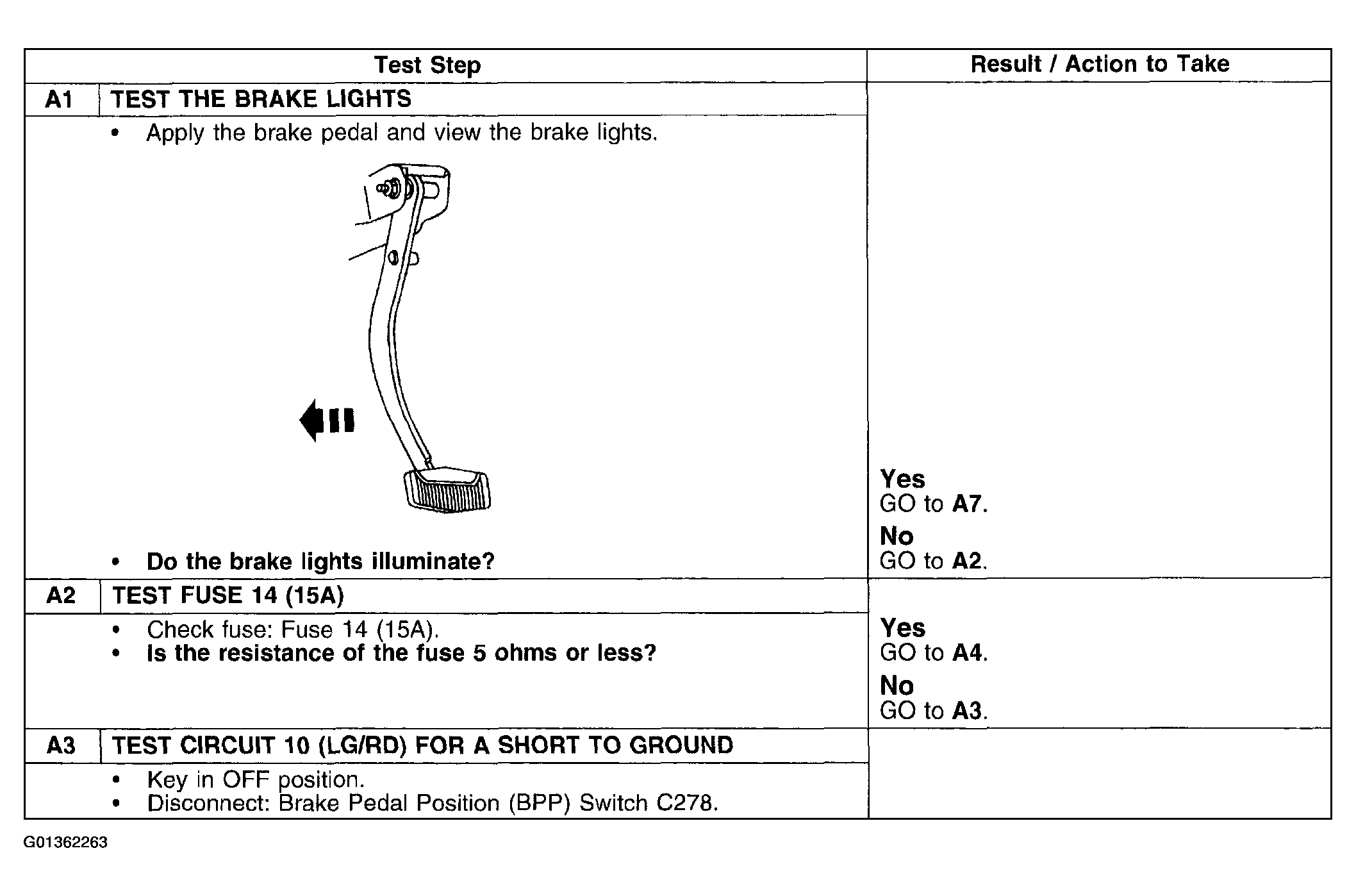

Fig 1: Pinpoint Test A: Shift Interlock System Does Not Release/Lock Correctly (Step A1-A3)

Courtesy of FORD MOTOR CO.

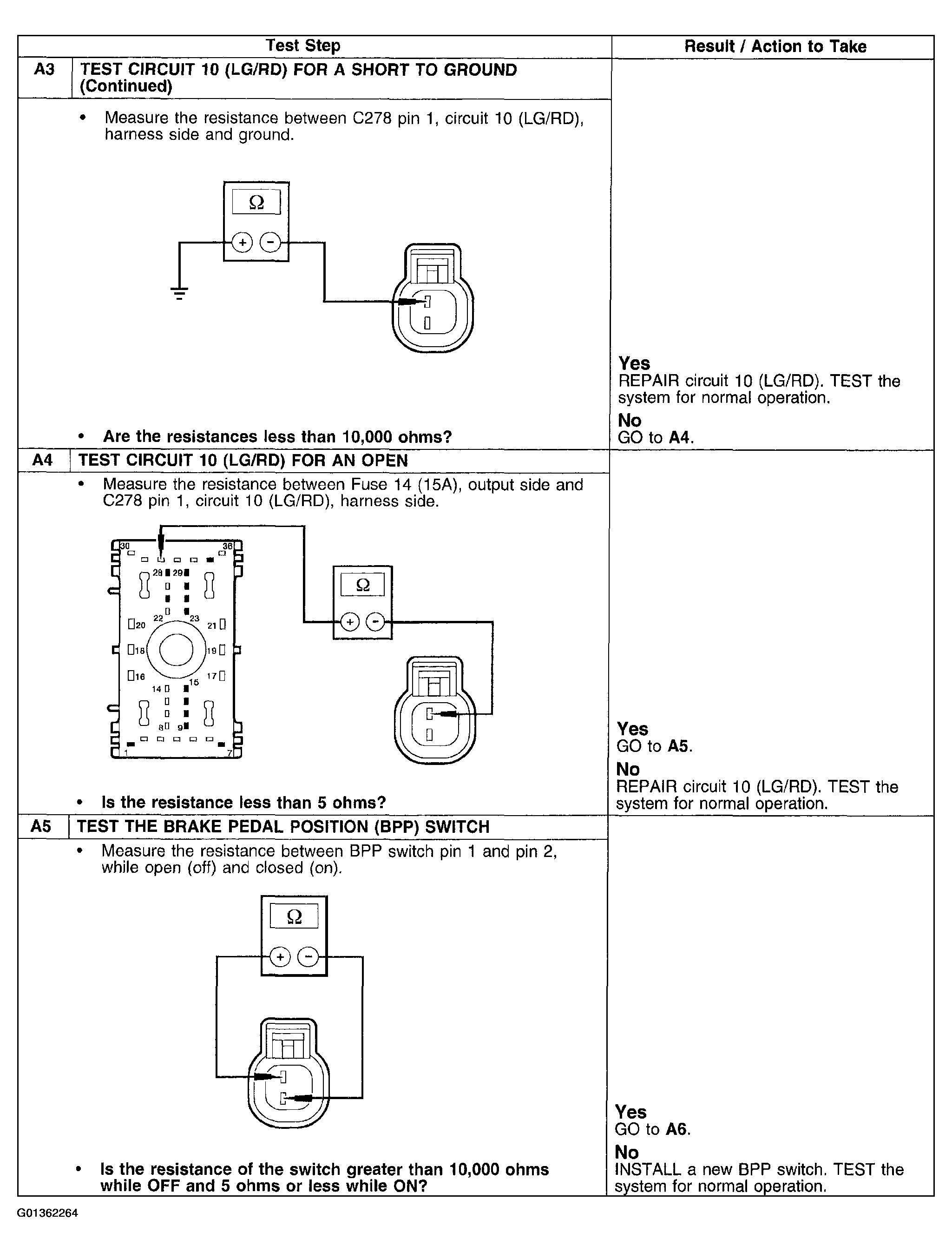

Fig 2: Pinpoint Test A: Shift Interlock System Does Not Release/Lock Correctly (Step A4-A5)

Courtesy of FORD MOTOR CO.

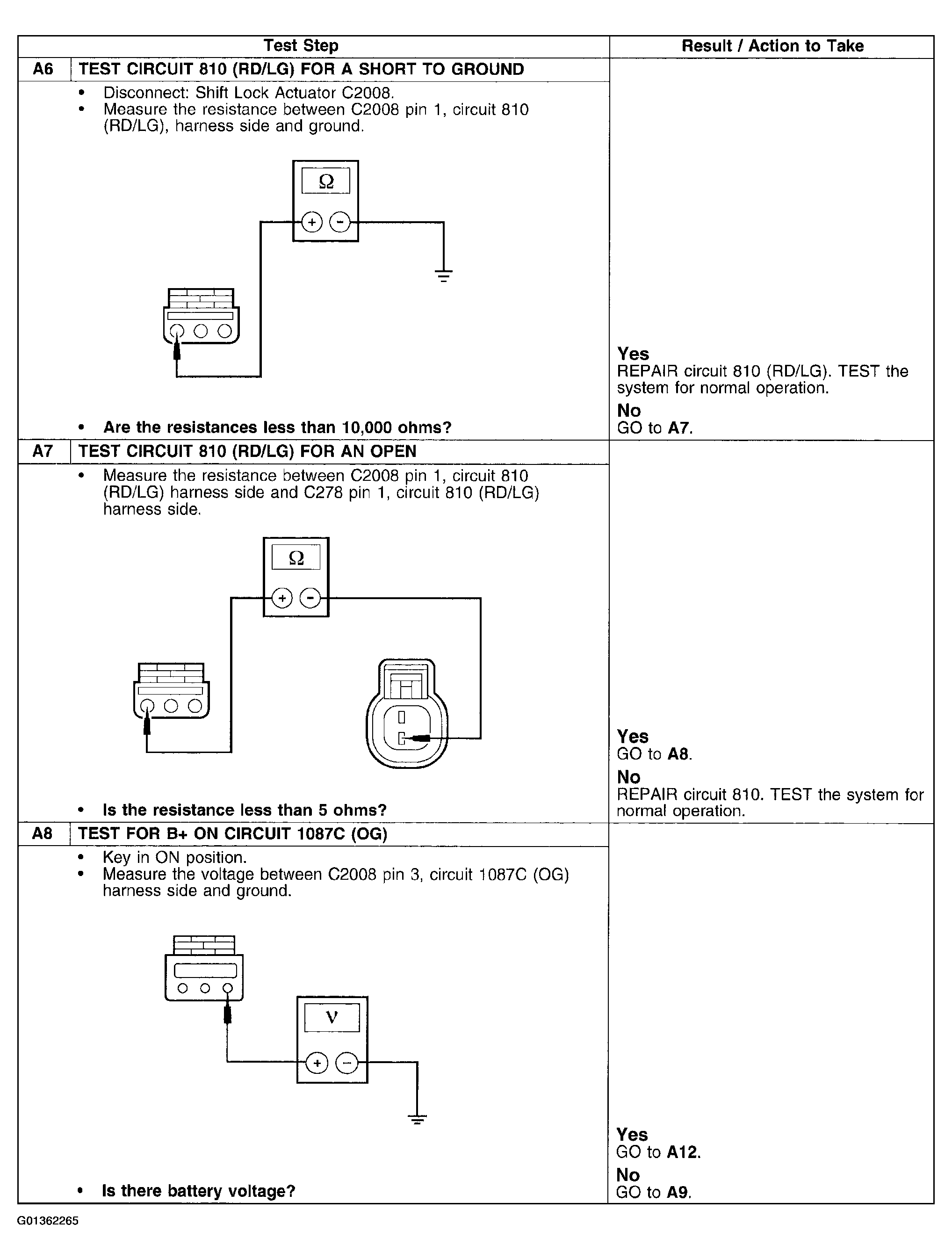

Fig 3: Pinpoint Test A: Shift Interlock System Does Not Release/Lock Correctly (Step A6-A8)

Courtesy of FORD MOTOR CO.

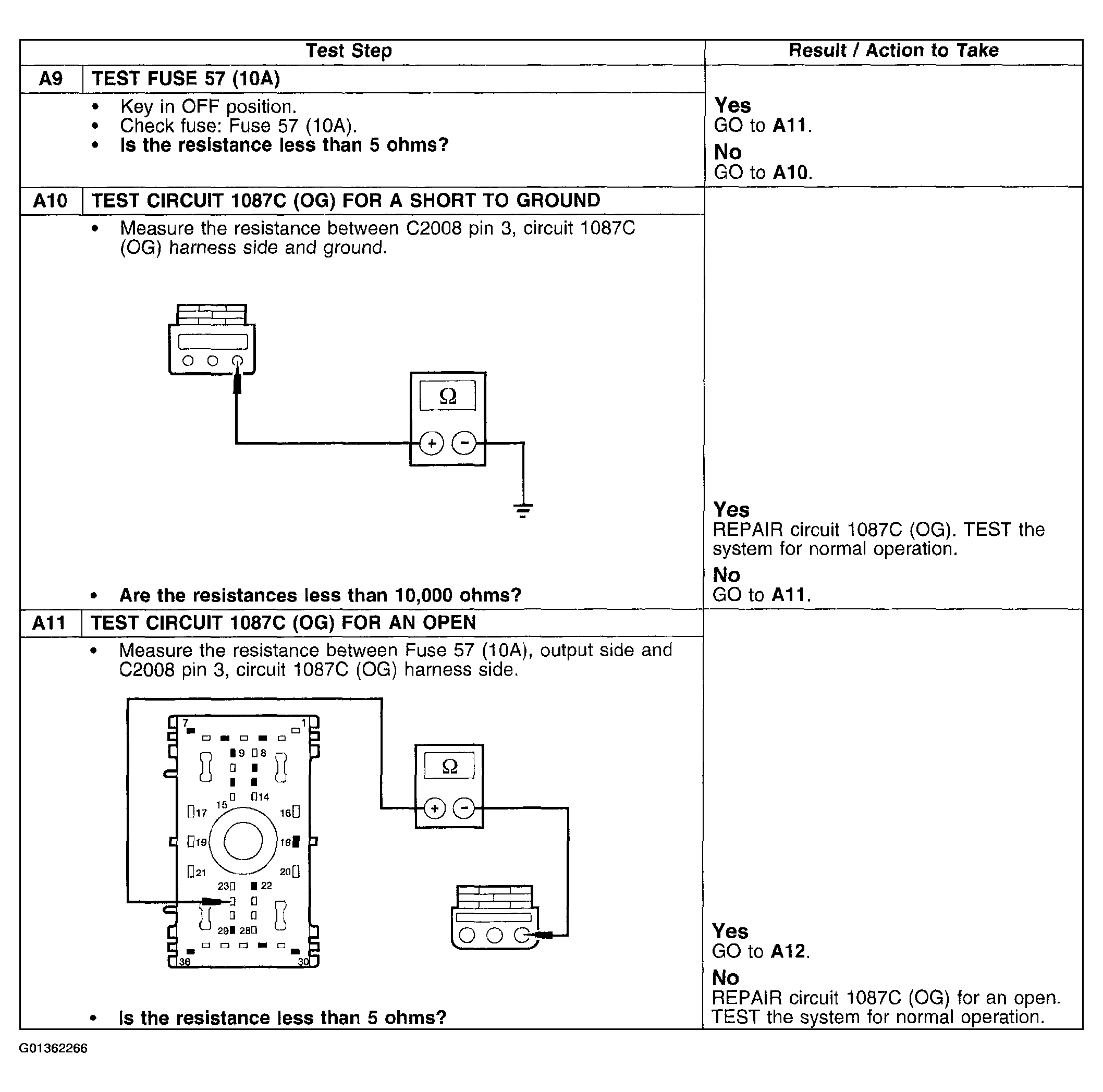

Fig 4: Pinpoint Test A: Shift Interlock System Does Not Release/Lock Correctly (Step A9-A11)

Courtesy of FORD MOTOR CO.

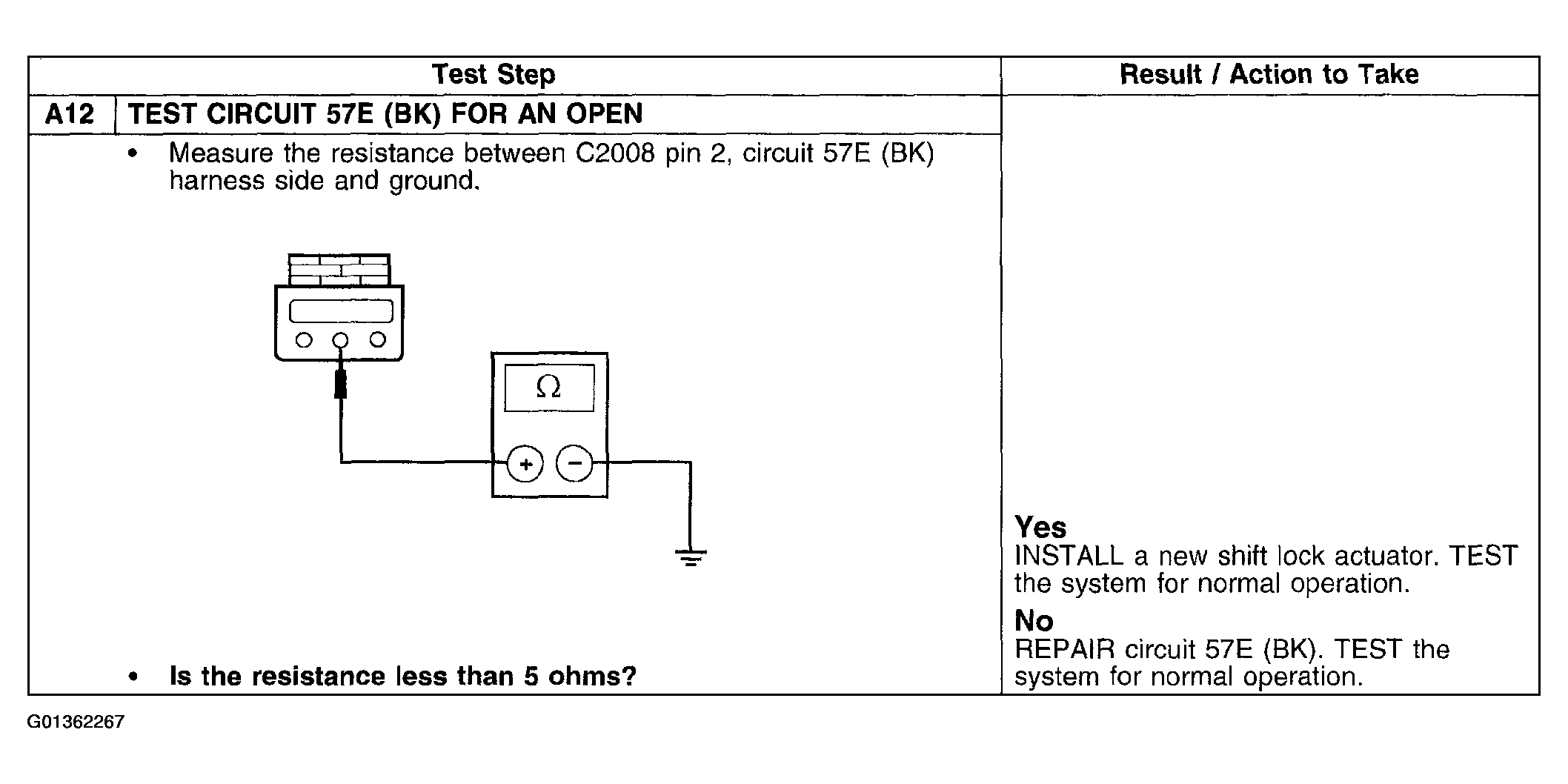

Fig 5: Pinpoint Test A: Shift Interlock System Does Not Release/Lock Correctly (Step A12)

Courtesy of FORD MOTOR CO.
