Band And Clutch Application Chart A

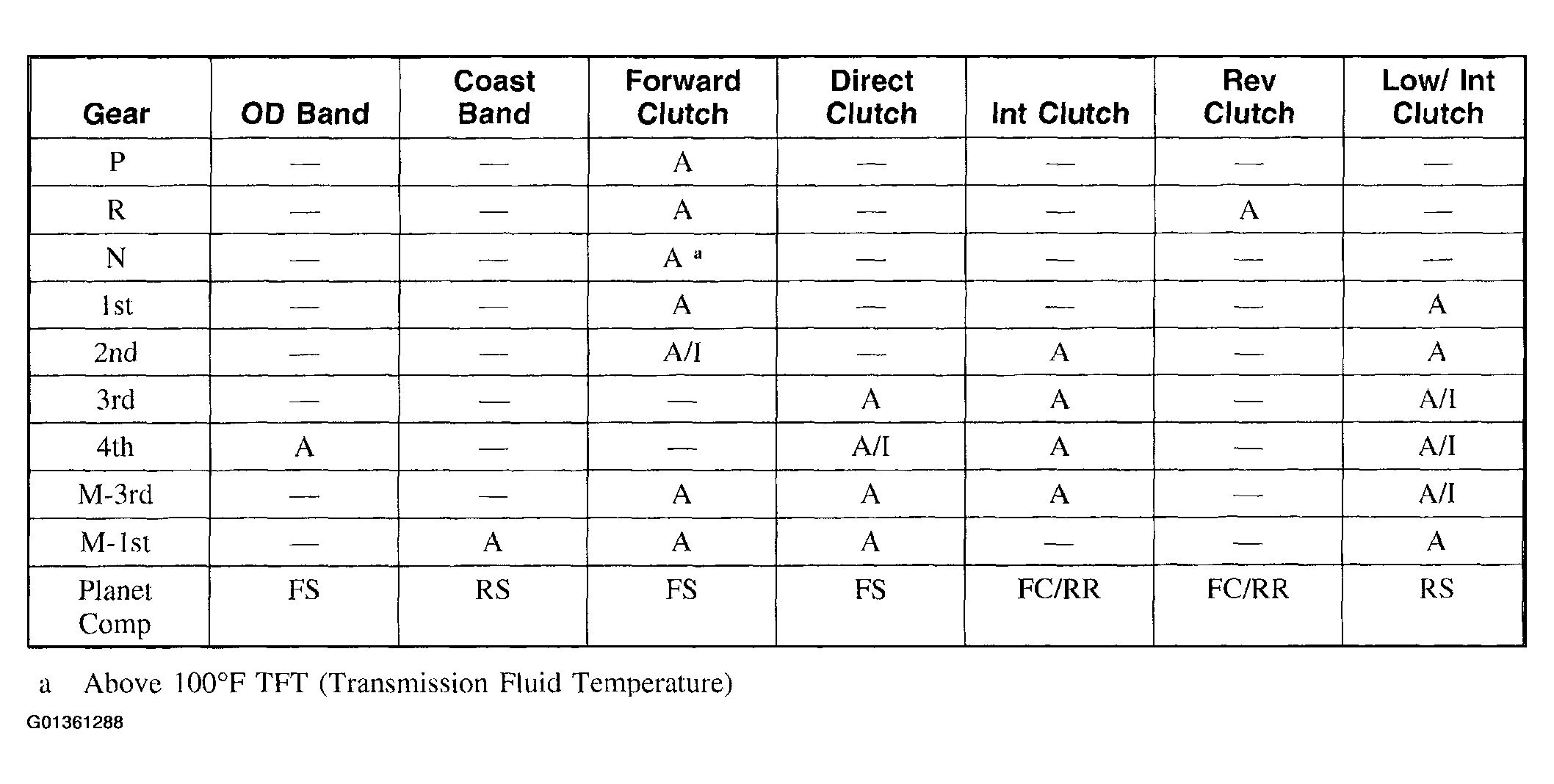

Fig 1: Band And Clutch Application Chart A
G01361288Courtesy of FORD MOTOR CO.
