Accelerator Cable - 2.3L: Notes

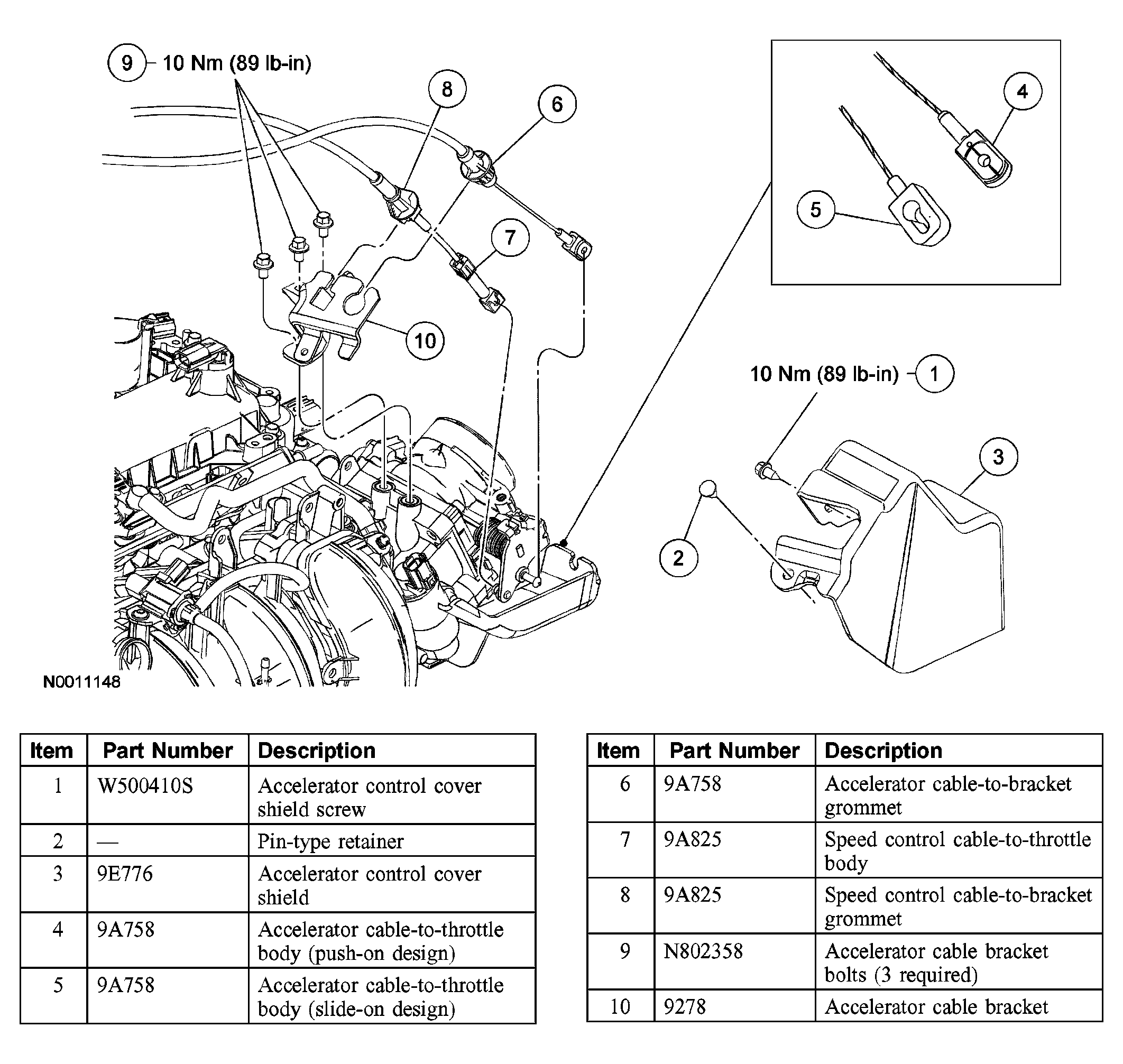

Fig 1: Replacement Components With Torque Specifications Of Accelerator Cable -- 2.3L (1 Of 2)
G03902061Courtesy of FORD MOTOR CO.

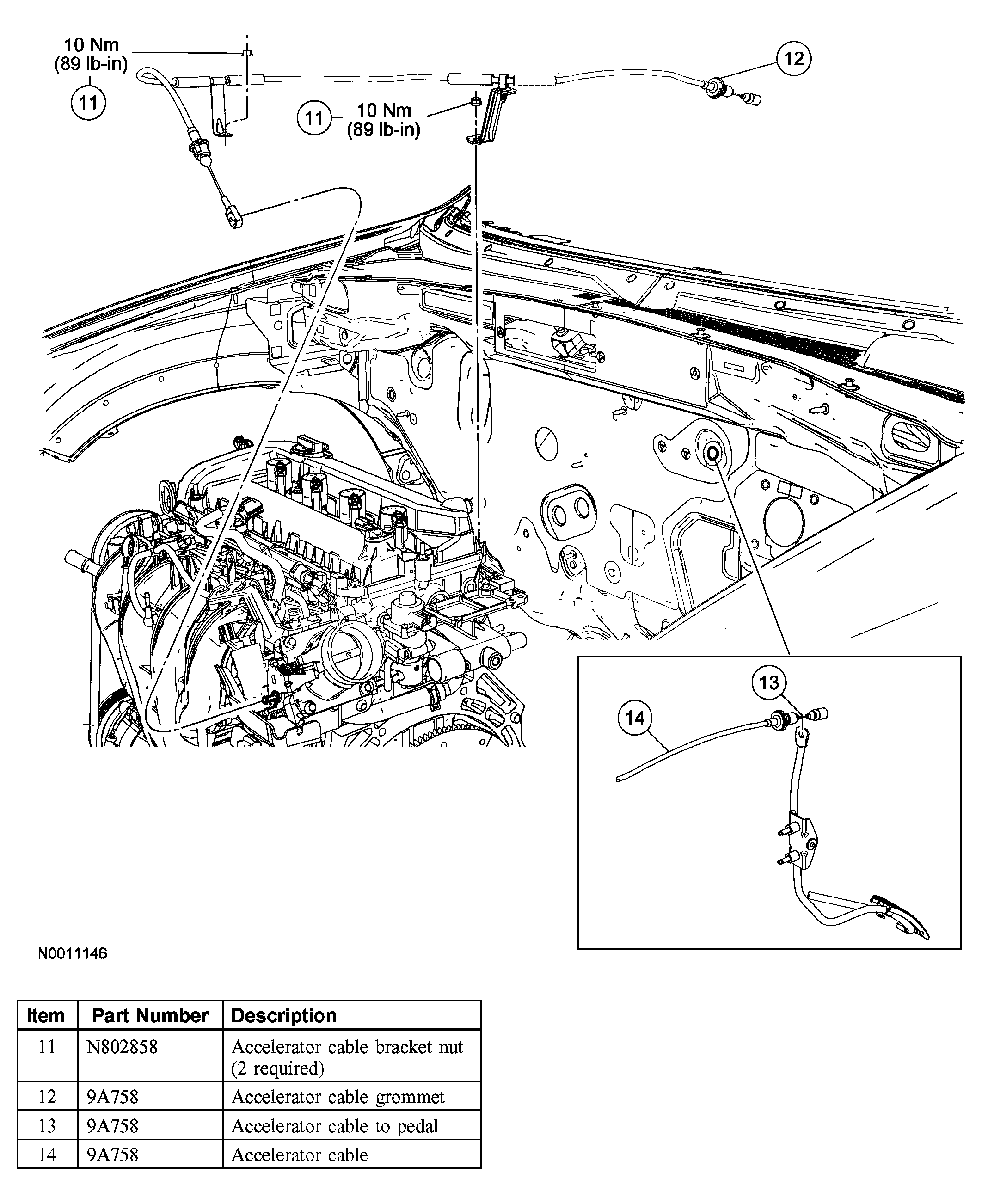

Fig 2: Replacement Components With Torque Specifications Of Accelerator Cable -- 2.3L (2 Of 2)
G03902062Courtesy of FORD MOTOR CO.
