Crankshaft Position (CKP) Sensor
›
Notes
Crankshaft Position (CKP) Sensor: Notes

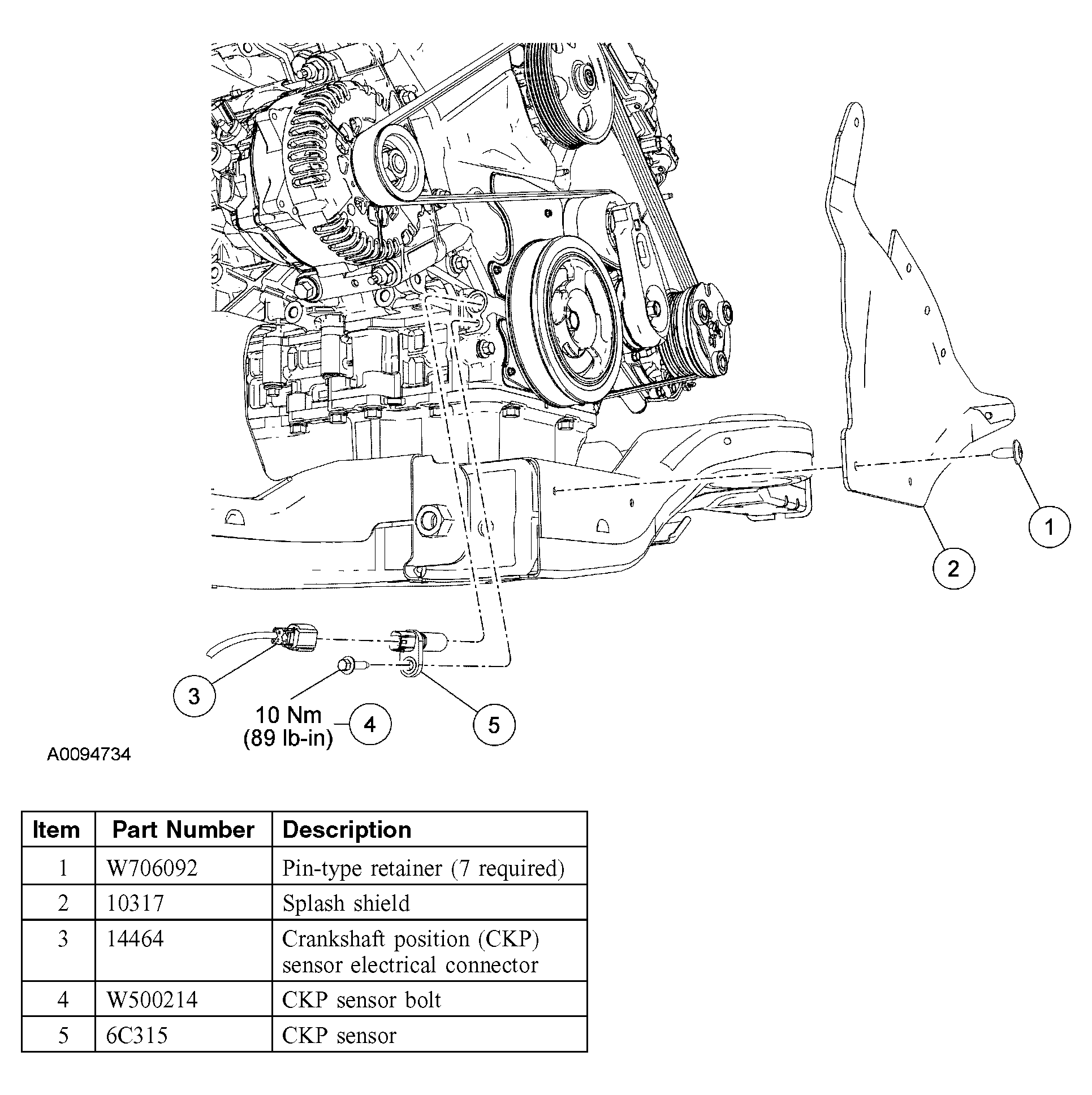

Fig 1: Removing/Installing Crankshaft Position (CKP) Sensor
Courtesy of FORD MOTOR CO.
