Side Shaft Gear Assembly: Assembly

If removed, press the gear assembly into the cover.

Fig 1: Pressing Gear Assembly Into Cover
Courtesy of FORD MOTOR CO.
If removed, install a new snap ring.

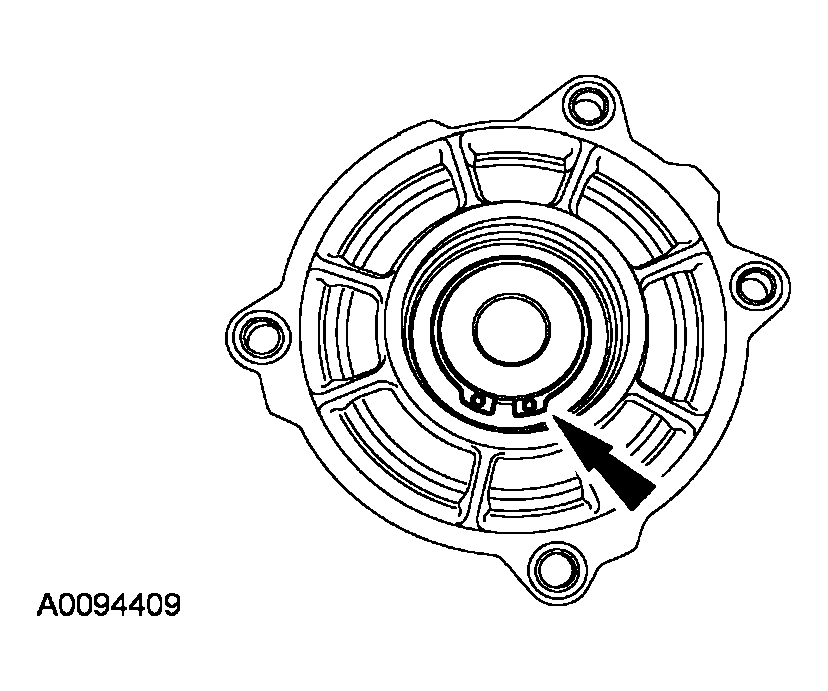

Fig 2: Installing Snap Ring
Courtesy of FORD MOTOR CO.
Using the special tool, install a new rubber dust cover.

Fig 3: Installing Rubber Dust Cover
Courtesy of FORD MOTOR CO.
Install a new side gear assembly O-ring seal.

Fig 4: Installing Side Gear Assembly O-Ring Seal
Courtesy of FORD MOTOR CO.
