External Controls

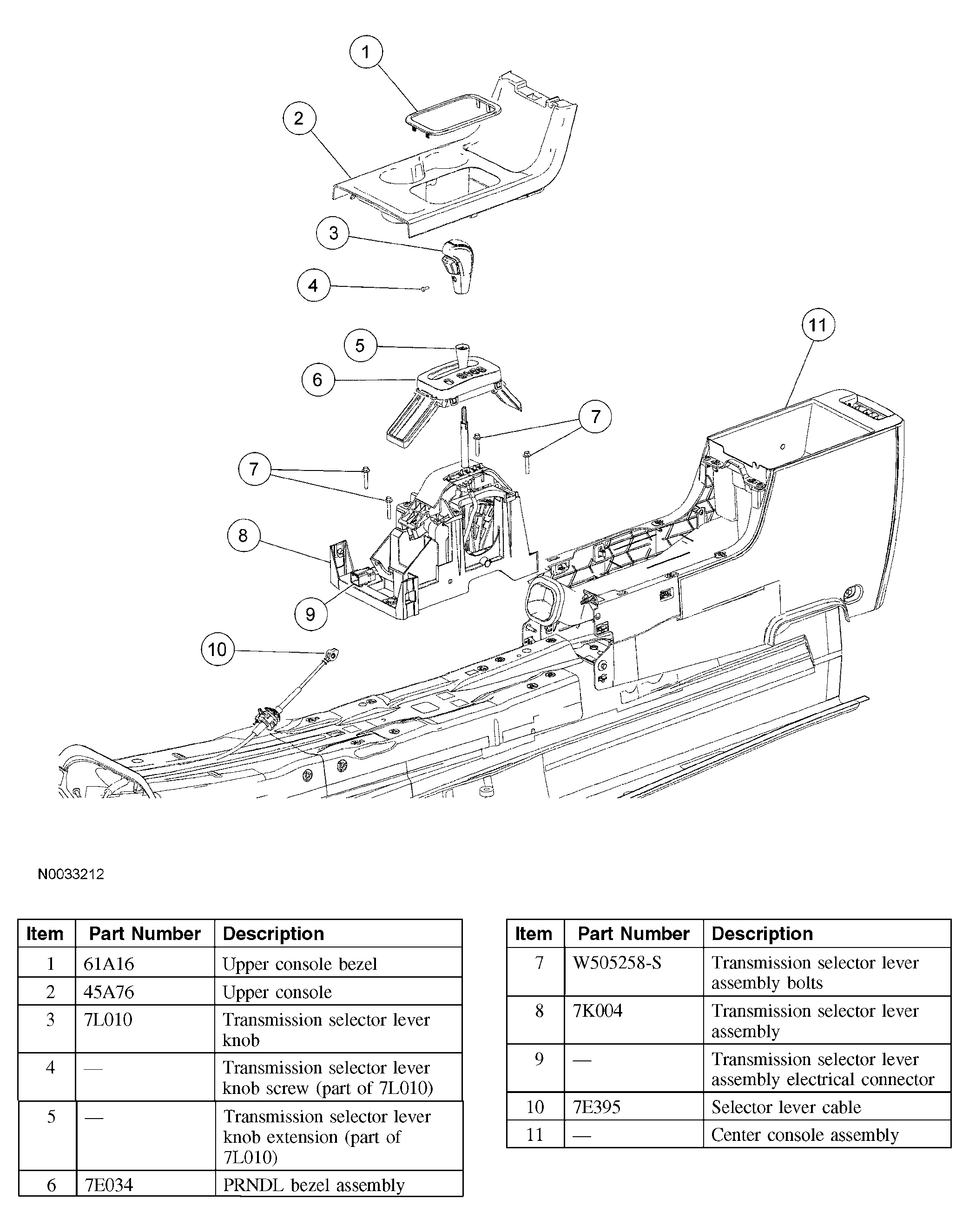

Fig 1: Exploded View Of External Controls - Floor Shift

Courtesy of FORD MOTOR CO.

The transaxle shift control linkage consists of:

• a shift cable that connects the transaxle range selector lever to the floor shifter assembly.
• a brake shift interlock actuator that is integral to the floor shifter assembly.

The floor shifter assembly:

• locks the transaxle range selector lever in the PARK position when the ignition switch is in the LOCK position.
• requires the transaxle range selector lever to be in the PARK position to turn the ignition switch to the LOCK position.
