Powertrain Control Module (PCM): Notes

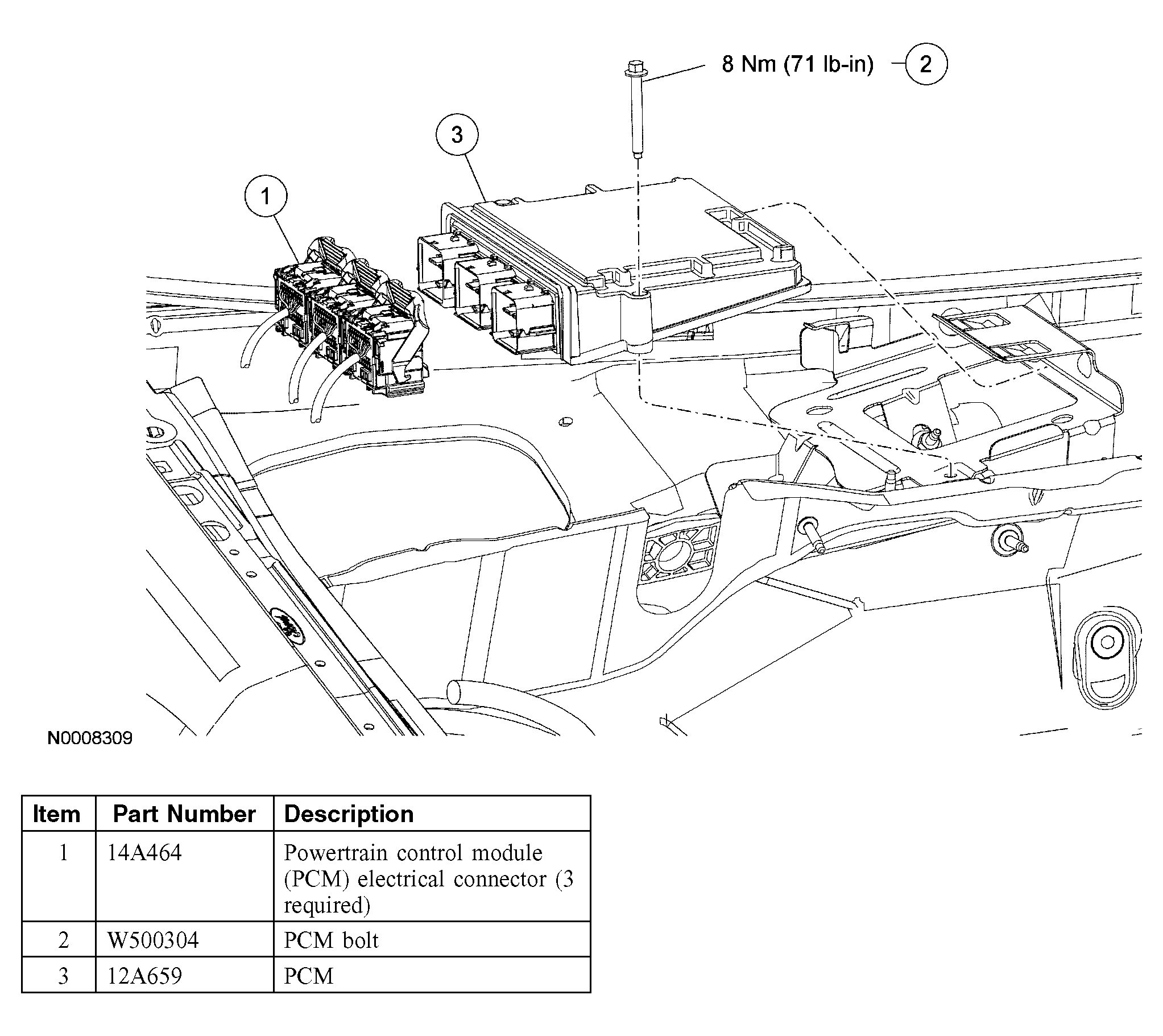

Fig 1: Removing/Installing Powertrain Control Module (PCM)
G03990656Courtesy of FORD MOTOR CO.
