Steering Column - Exploded View

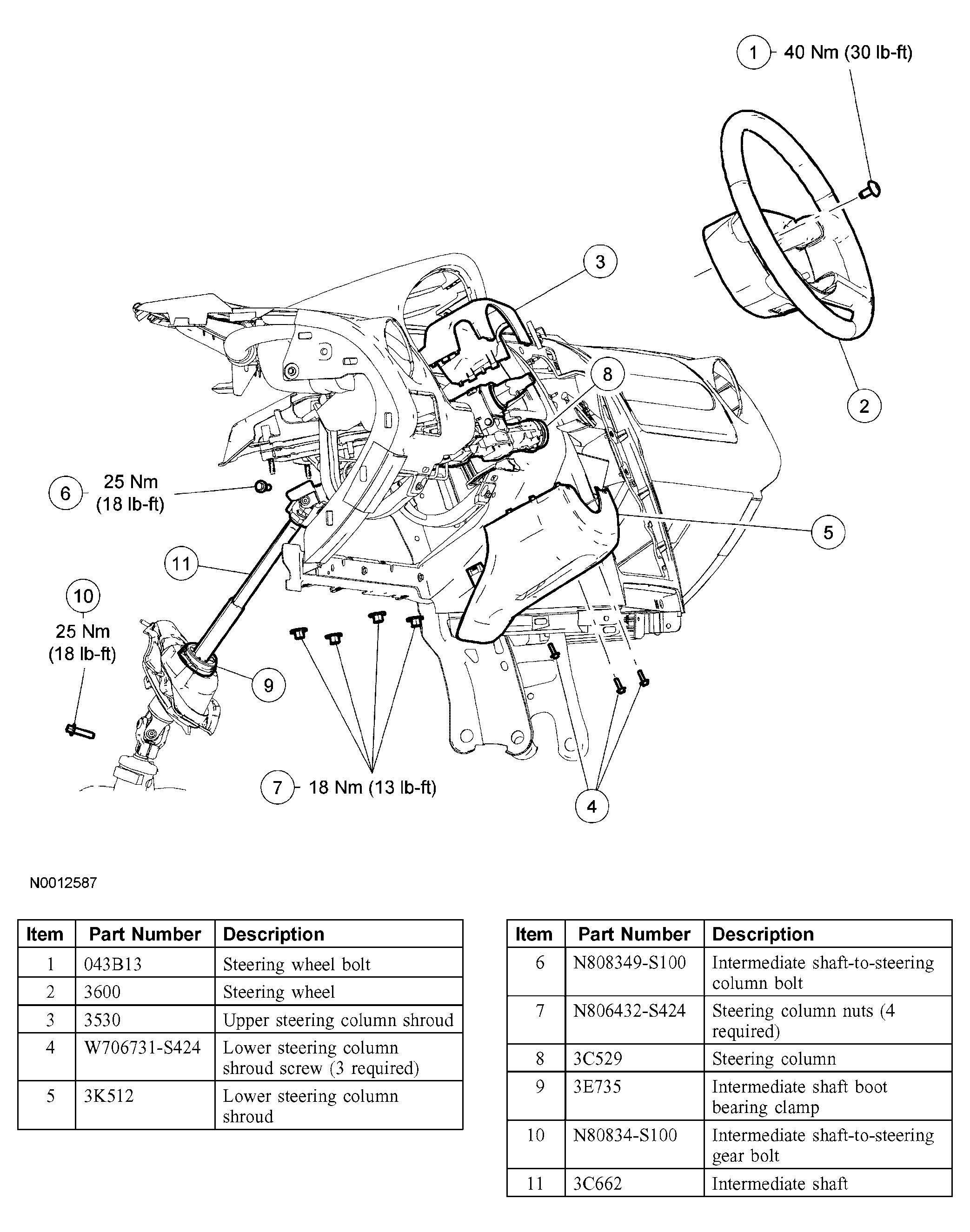

Fig 1: Removing/Installing Steering Column
G03988570Courtesy of FORD MOTOR CO.
  1. For additional information, refer to the procedures below.
