Battery and Battery Tray - Exploded View: Notes

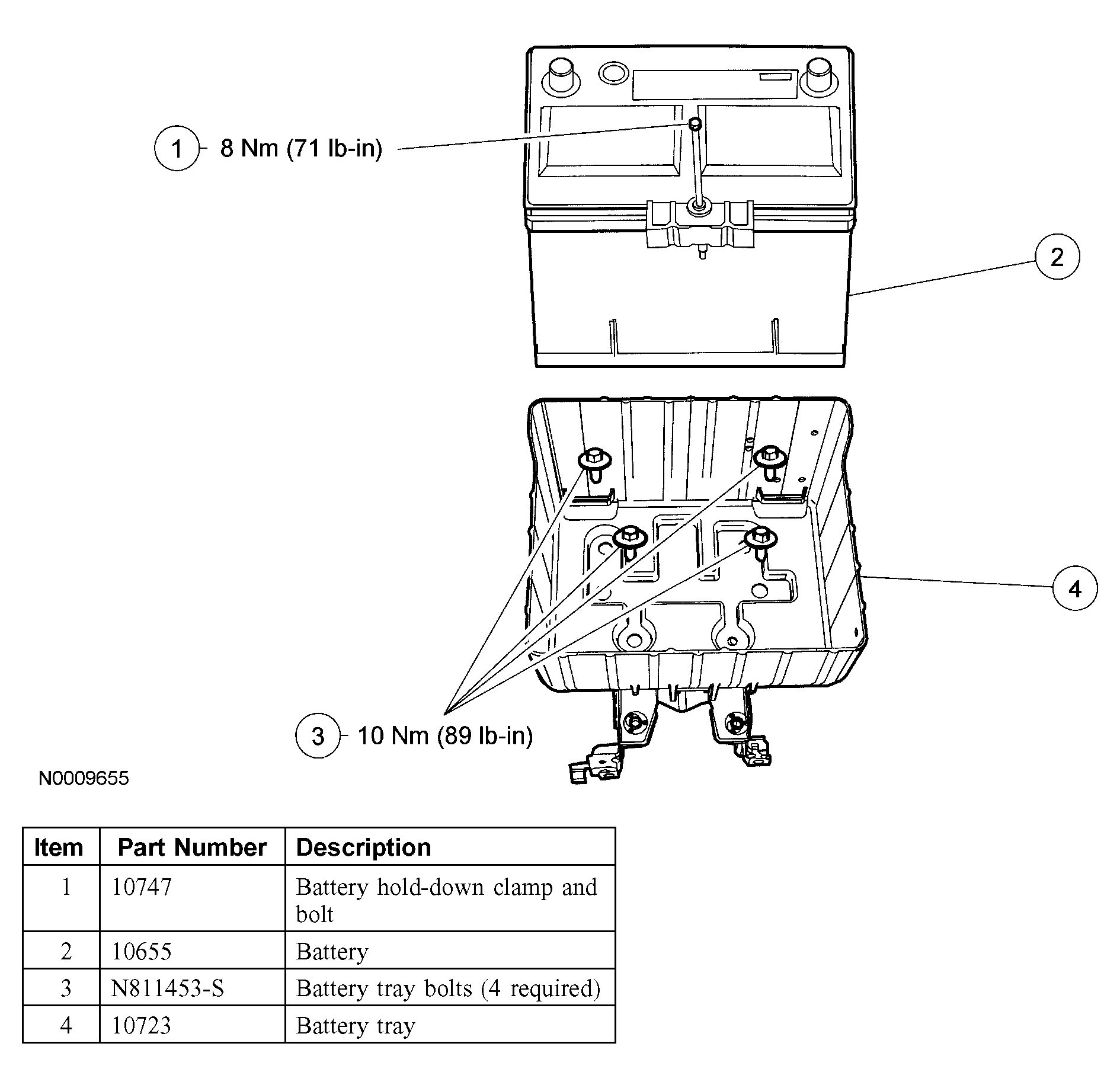

Fig 1: Removing/Installing Battery And Battery Tray

G03992679

Courtesy of FORD MOTOR CO.

For additional information, refer to the PROCEDURES .
