Home › Mercury › 2005 › Monterey › Repair and Diagnosis (Single Page) › Engine Performance › Remove, Overhaul & Install › Electronic Engine Control System › Removal And Installation › Mass Air Flow (MAF) Sensor › Notes

Mass Air Flow (MAF) Sensor: Notes

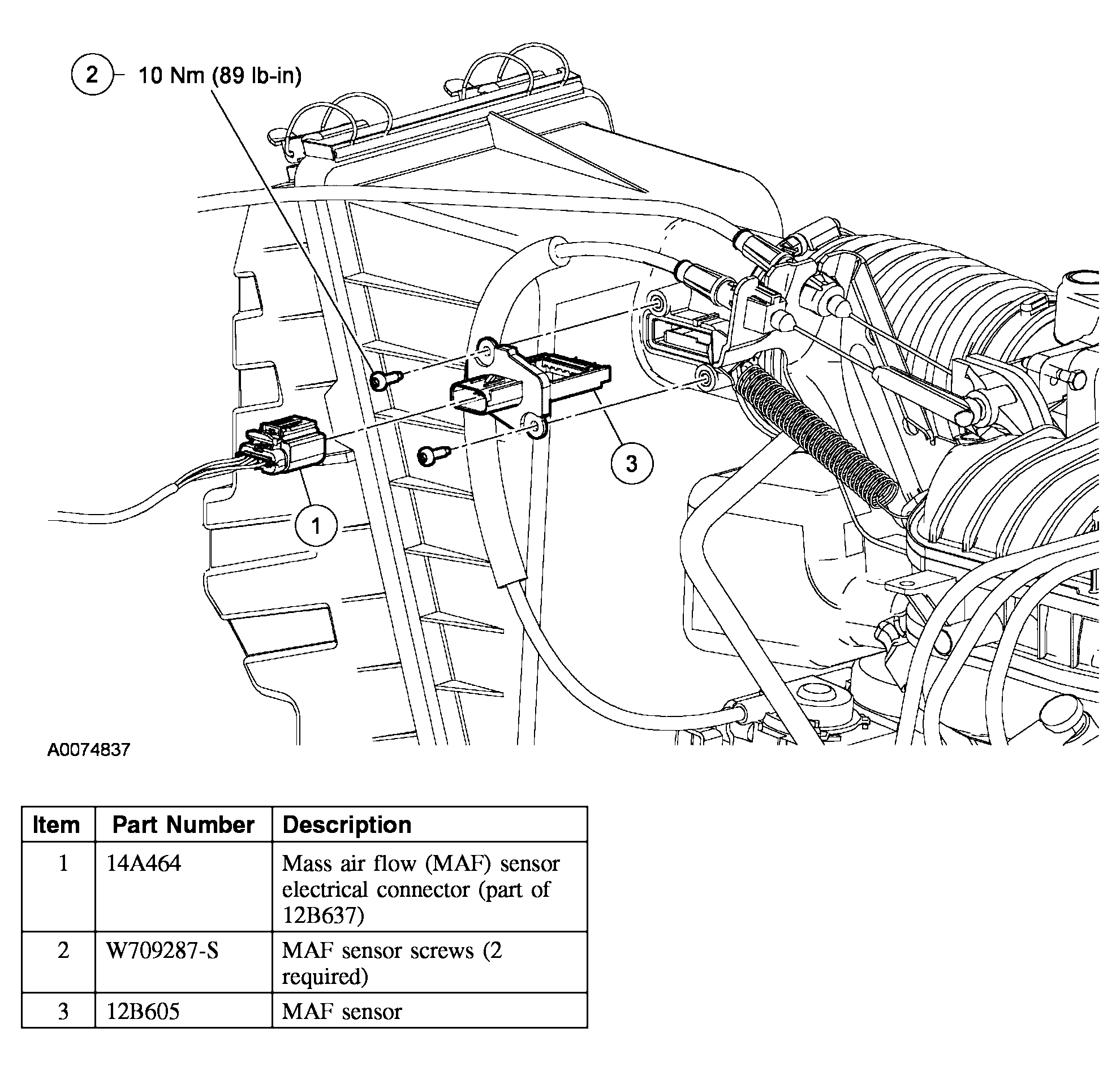

Fig 1: Installing Mass Air Flow Sensor
G04004507Courtesy of FORD MOTOR CO.
