Engine Ignition Components - Exploded View
Engine Ignition Components - Exploded View

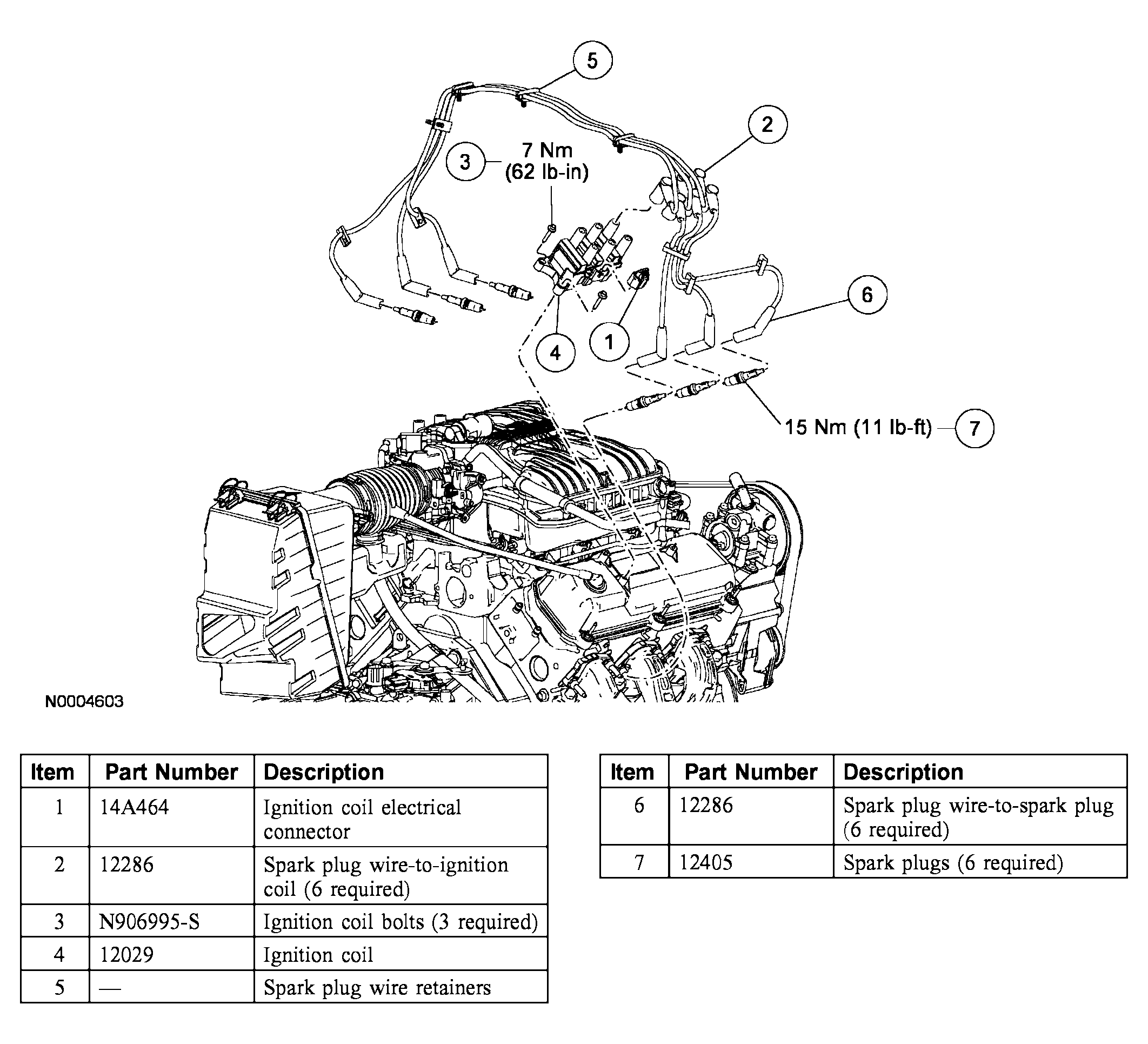

Fig 1: Exploded View Of Engine Ignition Components
Courtesy of FORD MOTOR CO.
For additional information, refer to the removal and installation procedures.
Courtesy of FORD MOTOR CO.
