Removal and Installation

Raise and support the vehicle. For additional information, refer to JACKING & LIFTING .
Disconnect the wiring.

Fig 1: Disconnecting Wiring
Courtesy of FORD MOTOR CO.
Disengage the wiring from the wiring clips.

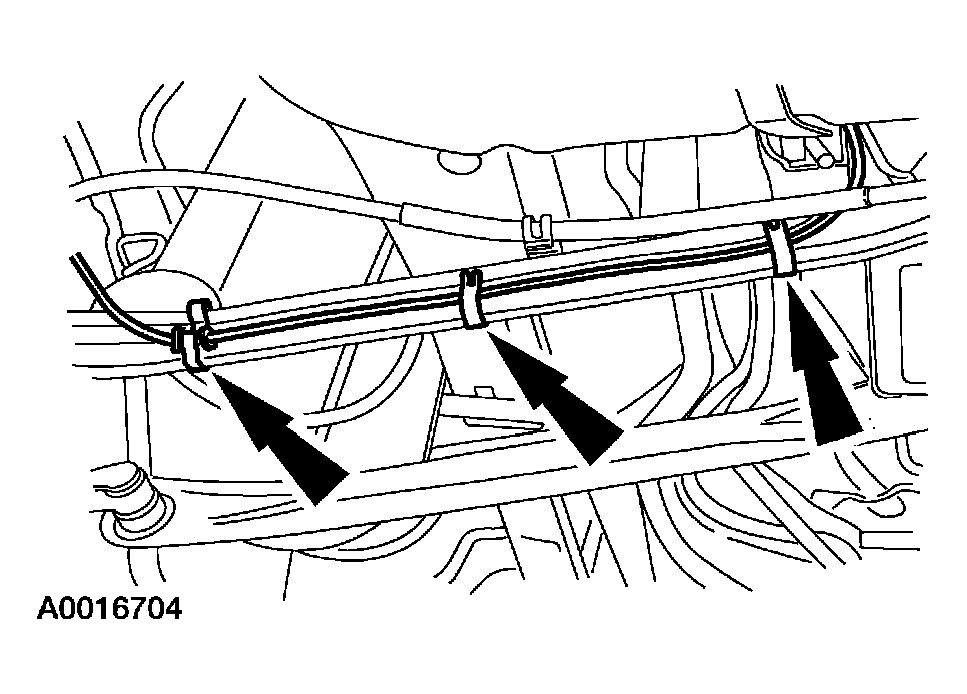

Fig 2: Disengaging Wiring From Wiring Clips
Courtesy of FORD MOTOR CO.
Remove the bolt and the rear wheel speed sensor.

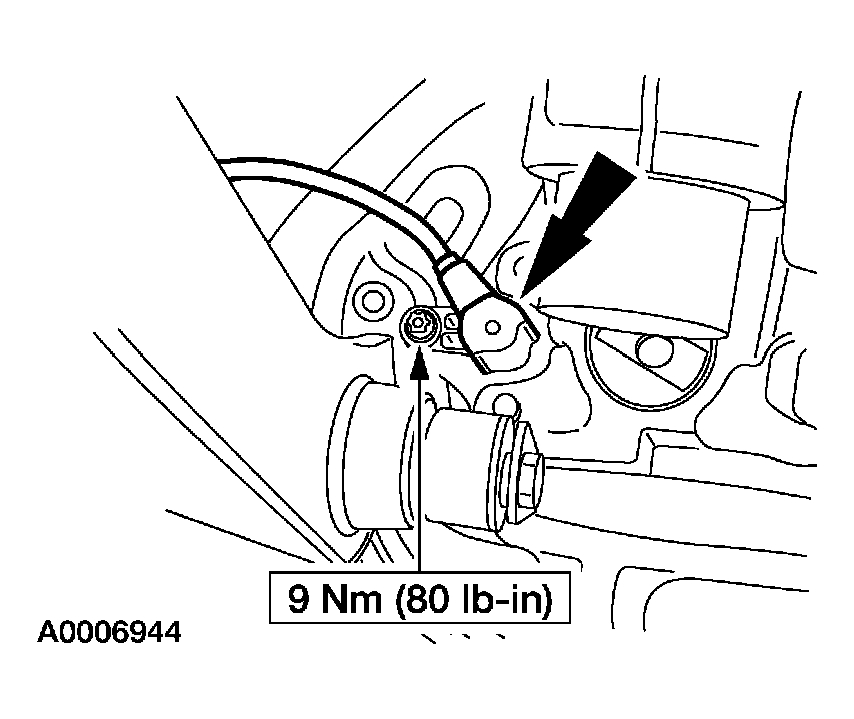

Fig 3: Rear Wheel Speed Sensor - With Torque Specification
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
