Mercury
›
2005
›
Sable Platinum Edition
›
Repair and Diagnosis
›
Transmission
›
Automatic Trans
›
Automatic Transmission
›
Description And Operation
›
Main Components and Functions
Main Components and Functions

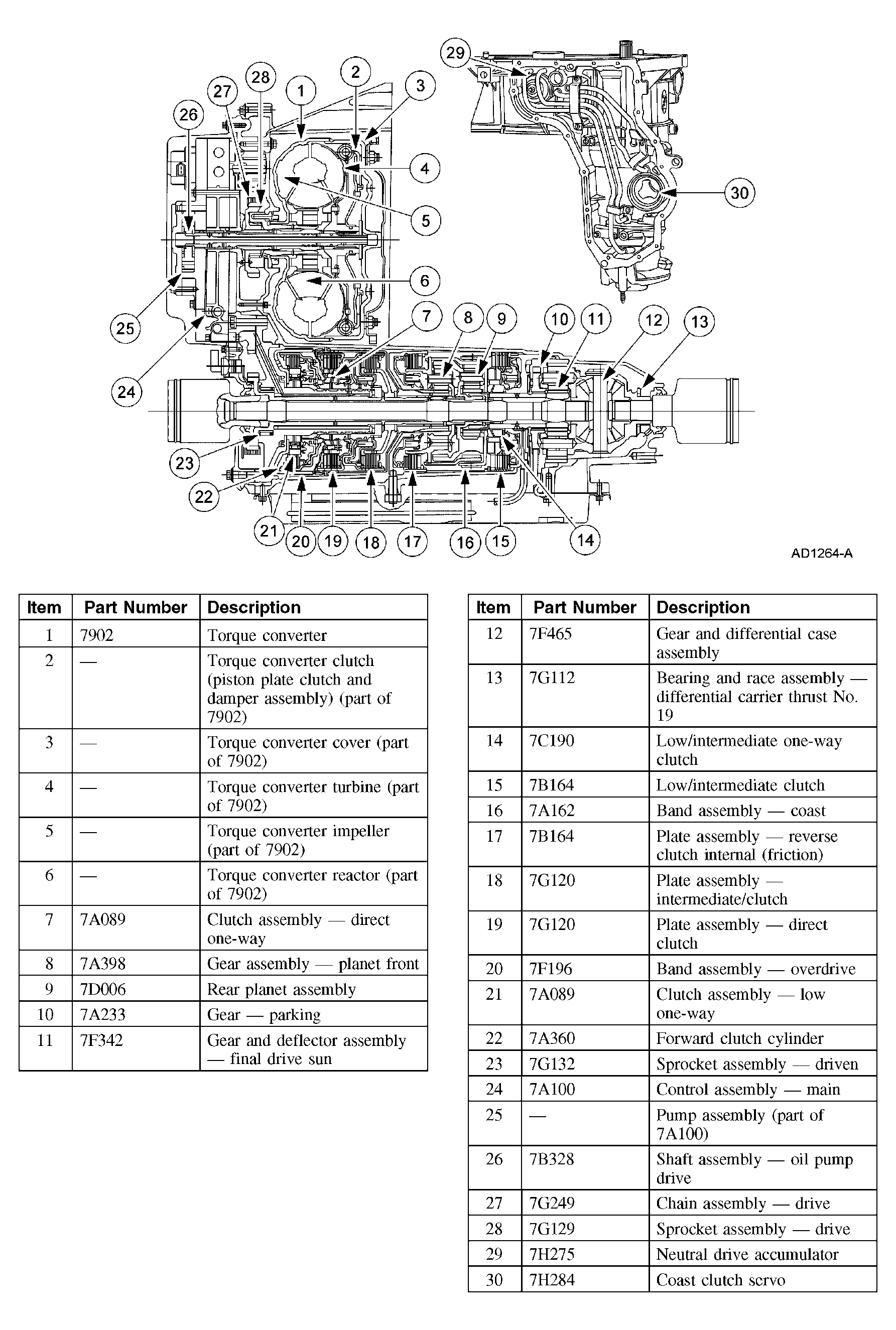

Fig 1: Identifying Transmission Main Components And Functions
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
