Special Tool(s)

SPECIAL TOOL CHART

G03957068
 Remover, Pump Bearing/Seal 307-394
Fig 1: Exploded View Of Main Control Valve Body
G03956605Courtesy of FORD MOTOR CO.

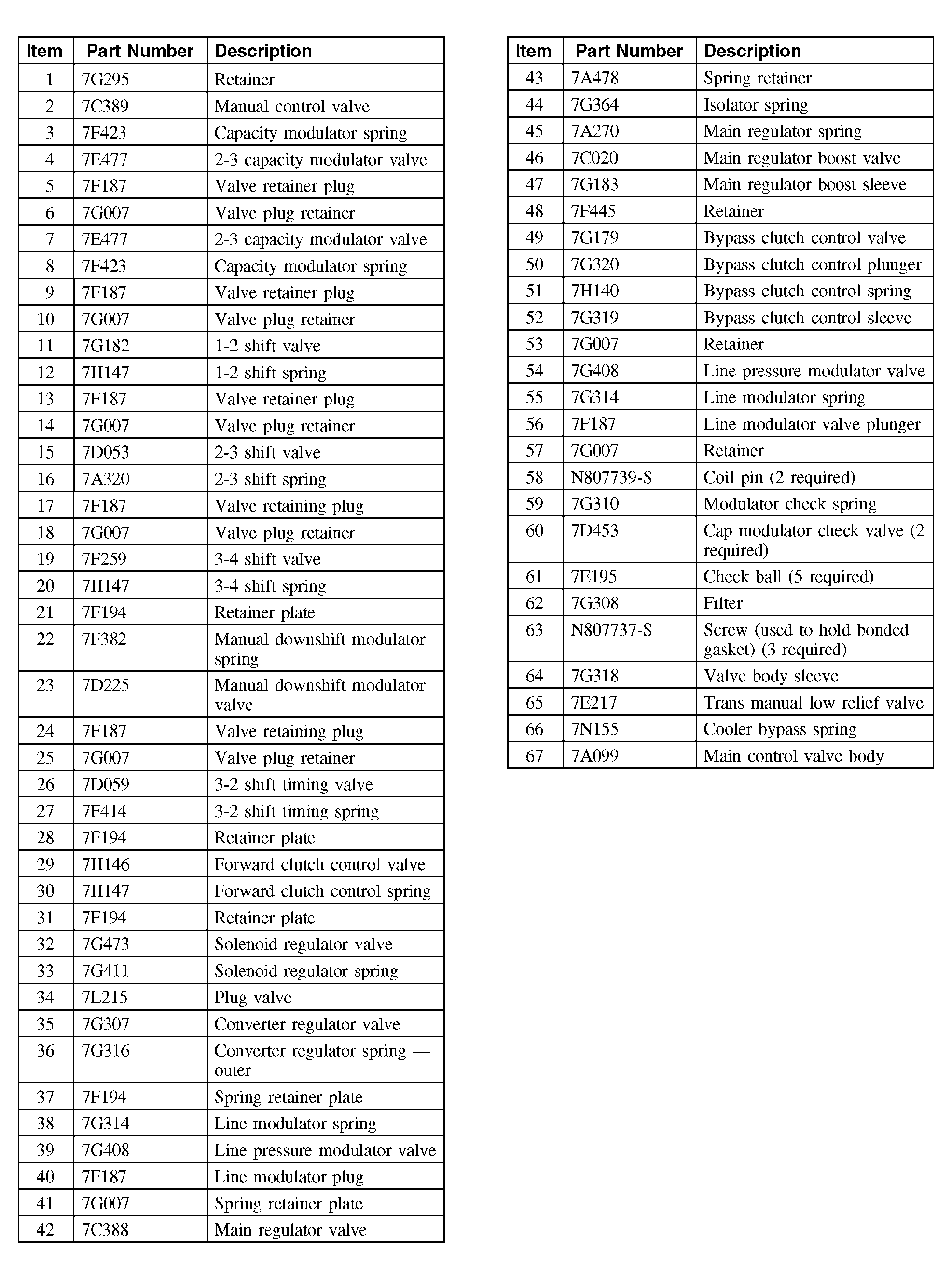

Fig 2: Main Control Valve Body Reference Table
G03957050Courtesy of FORD MOTOR CO.

Main Control Pump Assembly

Fig 3: Exploded View Of Main Control Pump Assembly
G03957051Courtesy of FORD MOTOR CO.

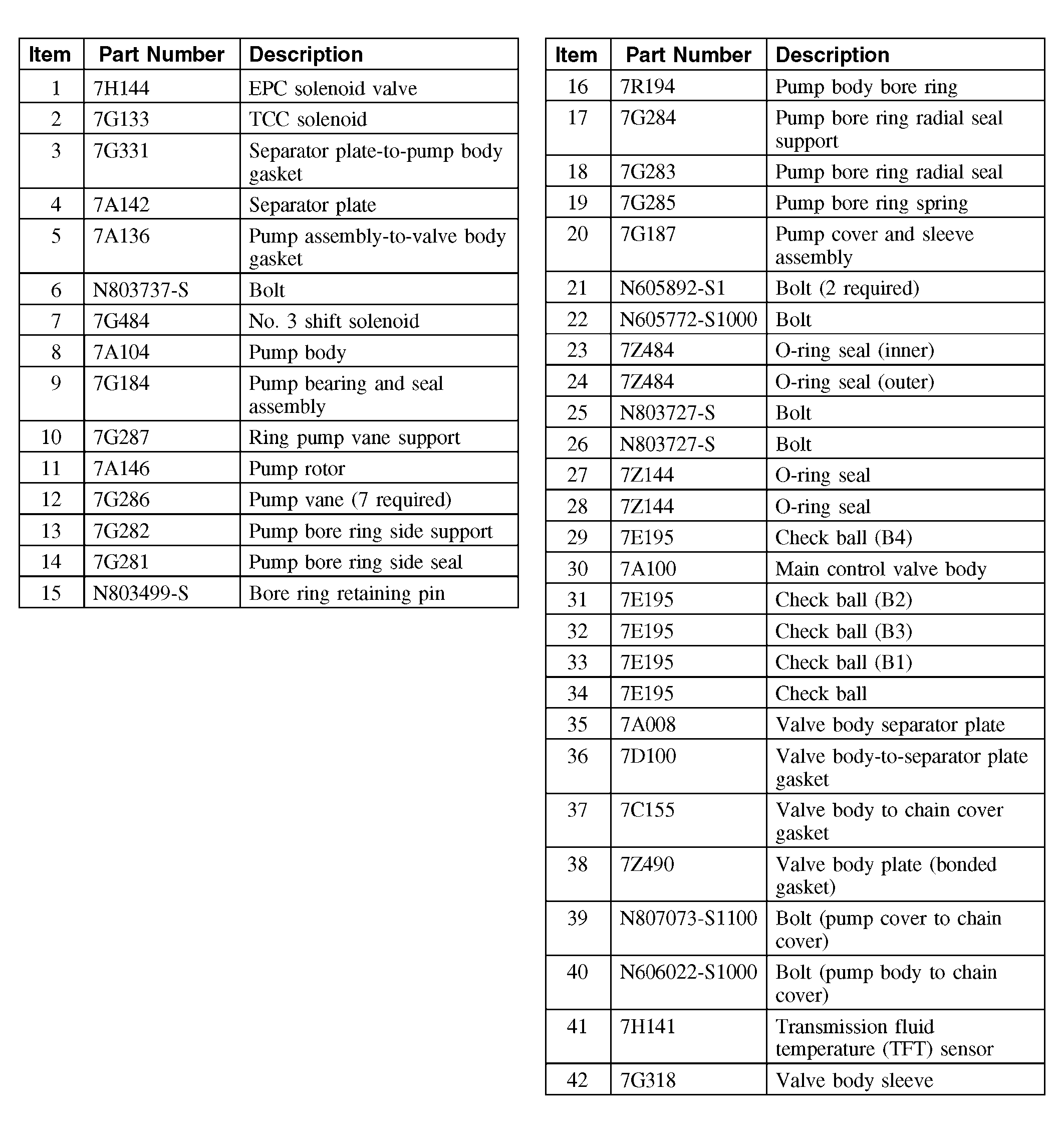

Fig 4: Main Control Pump Assembly Reference Table
G03957052Courtesy of FORD MOTOR CO.
