Neutral Drive Accumulator

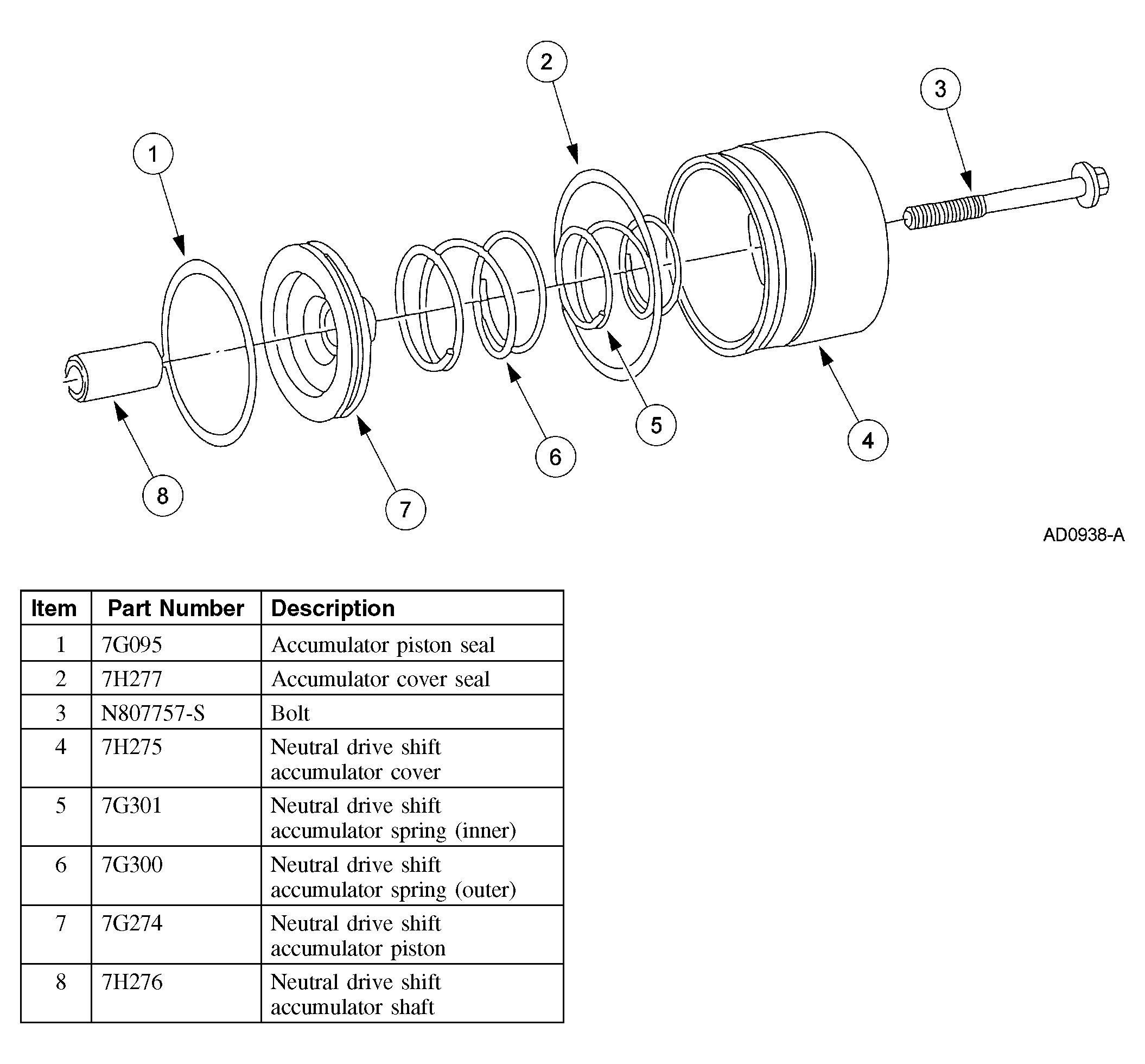

Fig 1: Exploded View Of Neutral Drive Accumulator
G03957281Courtesy of FORD MOTOR CO.
  1. Lightly coat the seals with petroleum jelly prior to installation.
    • Remove and install a new neutral drive accumulator piston seal.
    • Remove and install a new neutral drive accumulator cover seal.
    Fig 2: Identifying Neutral Drive Accumulator Cover Seal
    G03957282Courtesy of FORD MOTOR CO.
