Special Tool(s)

SPECIAL TOOL CHART

G03957068
 Remover, Pump Bearing/Fluid Seal 307-394
G03957069
 Installer, Pump Bearing/Fluid Seal 307-393

Main Control Pump Assembly

Fig 1: Exploded View Of Main Control Pump Assembly
G03957051Courtesy of FORD MOTOR CO.

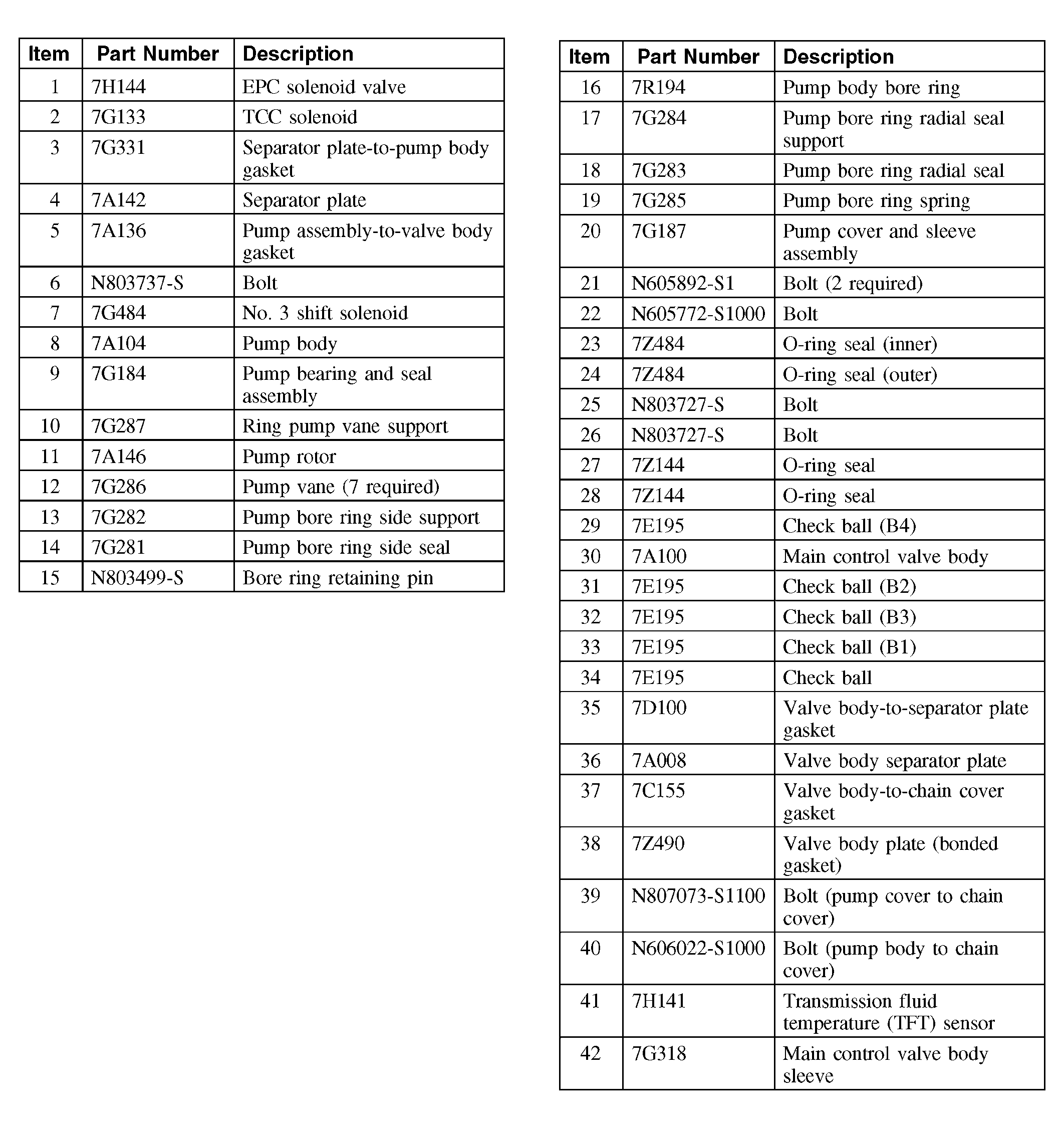

Fig 2: Main Control Pump Assembly Reference Table
G03957071Courtesy of FORD MOTOR CO.
