Transaxle Support Insulator: Removal

  1. With the vehicle in NEUTRAL position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Remove the LH wheel and tire. For additional information, refer to WHEELS & TIRES .
  3. Place the high-lift transmission jack under the transaxle.

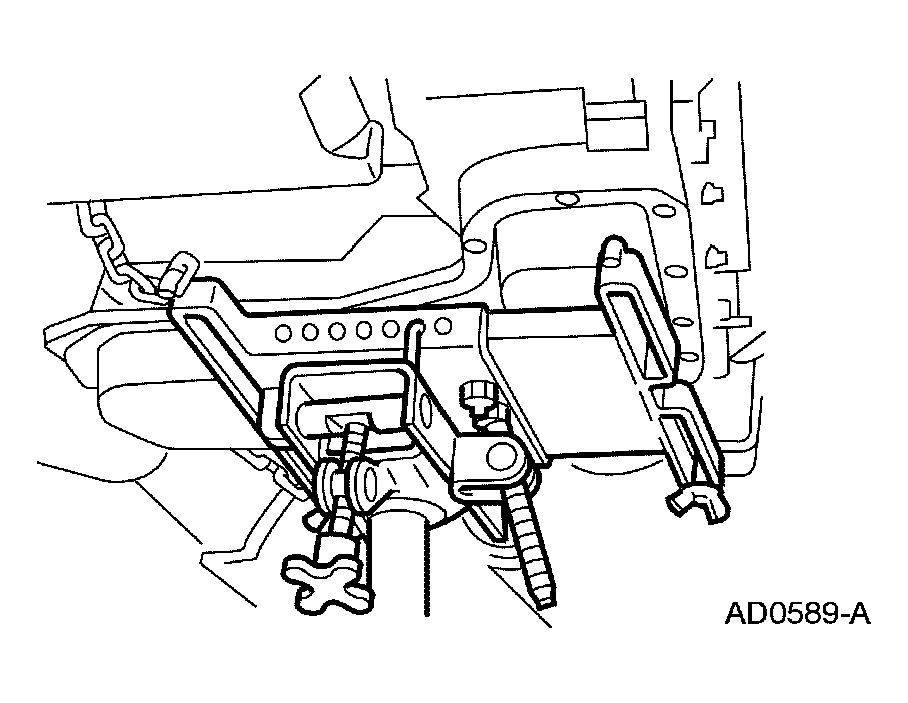

    Fig 1: Supporting Transaxle With High-Lift Transmission Jack
    G03956851Courtesy of FORD MOTOR CO.
  4. Remove the engine and transaxle upper support insulator nut.

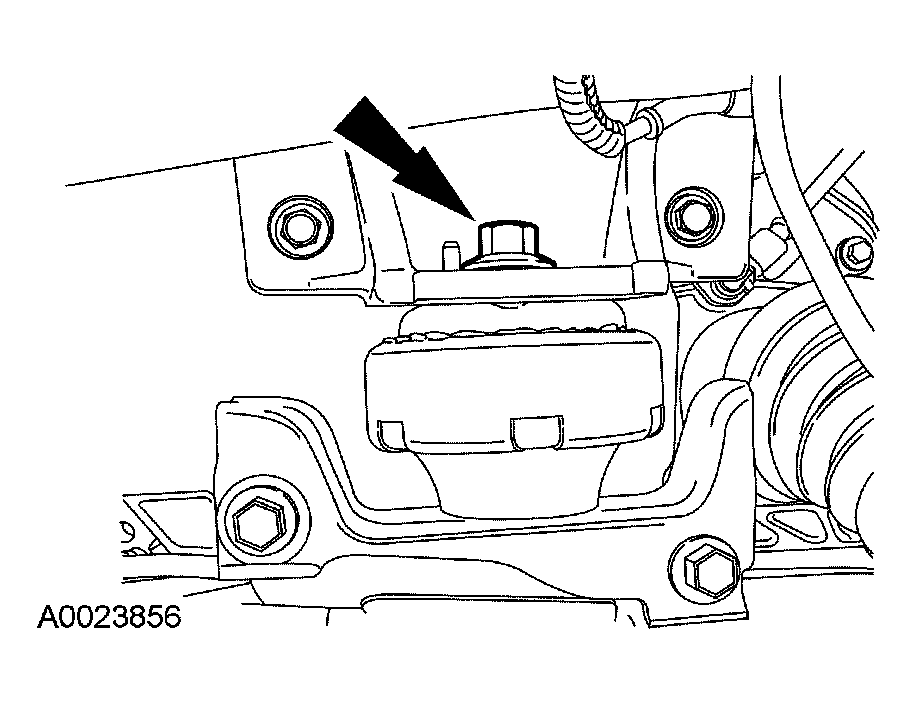

    Fig 2: Removing Transaxle Upper Support Insulator Nut
    G03956852Courtesy of FORD MOTOR CO.
  5. Remove the engine and transaxle upper support bracket bolts and bracket.

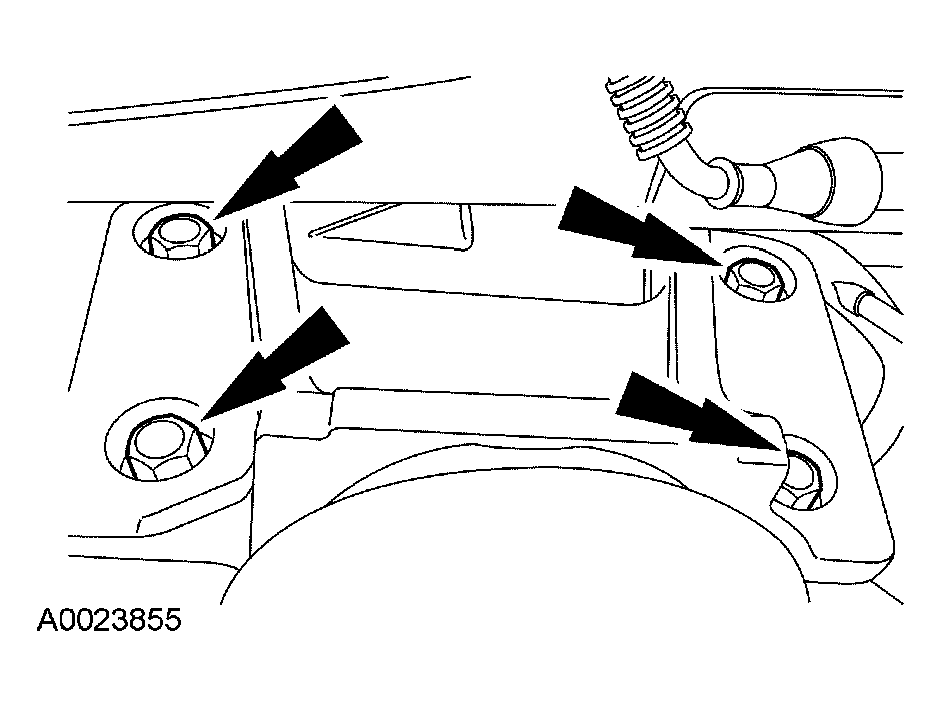

    Fig 3: Removing Transaxle Upper Support Bracket Bolts And Bracket
    G03956853Courtesy of FORD MOTOR CO.
  6. Remove the engine and transaxle upper support insulator bolts and insulator.

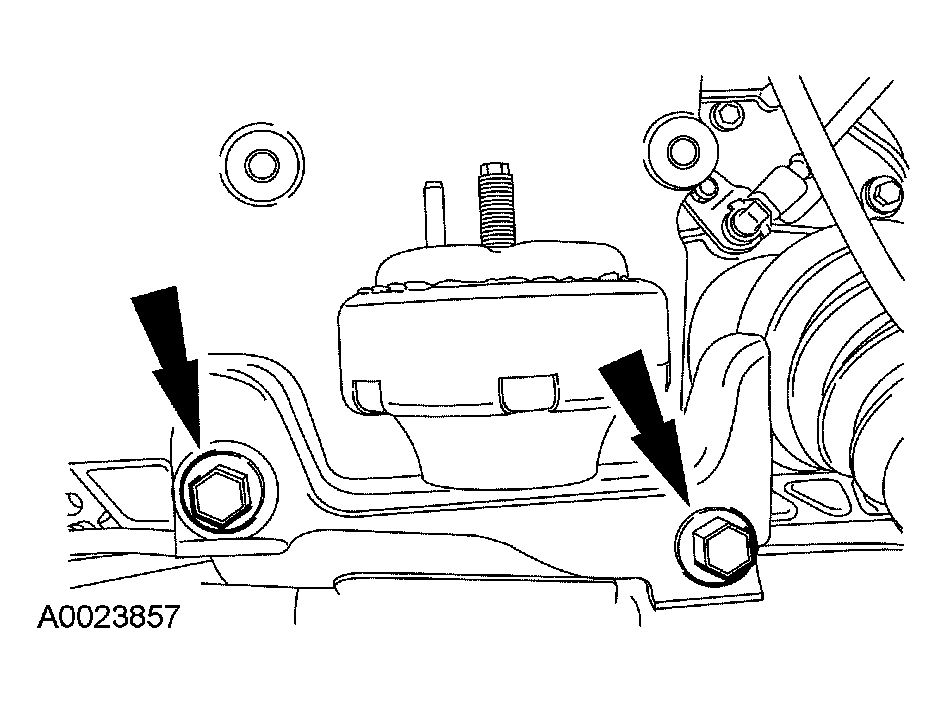

    Fig 4: Removing Transaxle Upper Support Insulator Bolts And Insulator
    G03956854Courtesy of FORD MOTOR CO.
