Exterior Mirror: Notes

NOTE: RH side shown, LH side similar.

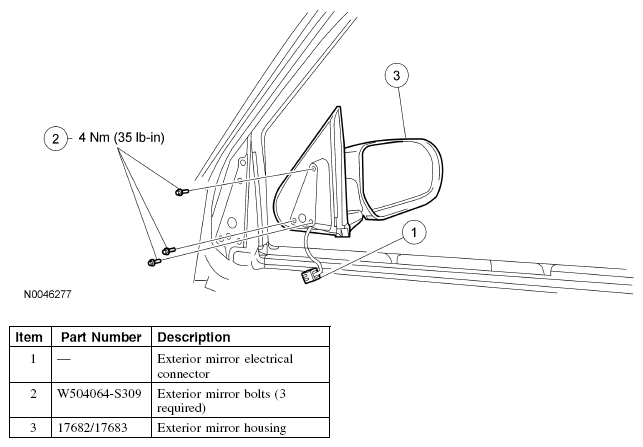

Fig 1: Exterior Mirror Replacement Components With Torque Specifications
G04622248Courtesy of FORD MOTOR CO.
