Accelerator Cable - 3.0L (4V): Notes

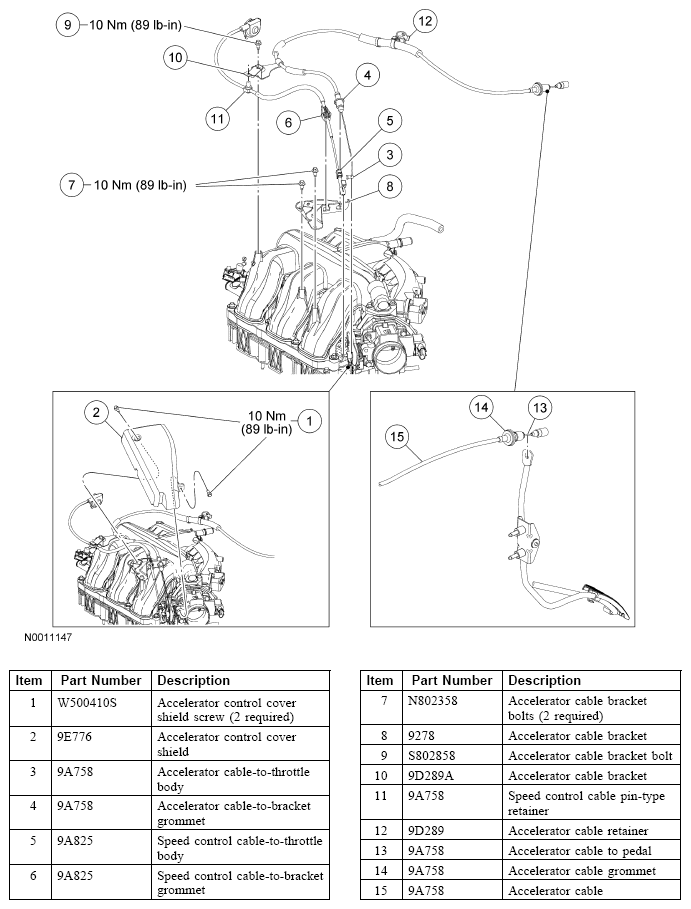

Fig 1: Exploded View Of Accelerator Cable - (3.0L 4V) With Torque Specifications
G04621279Courtesy of FORD MOTOR CO.
