Wheel Speed Sensor - Rear, Front Wheel Drive (FWD): Notes

NOTE: LH side shown, RH side similar.

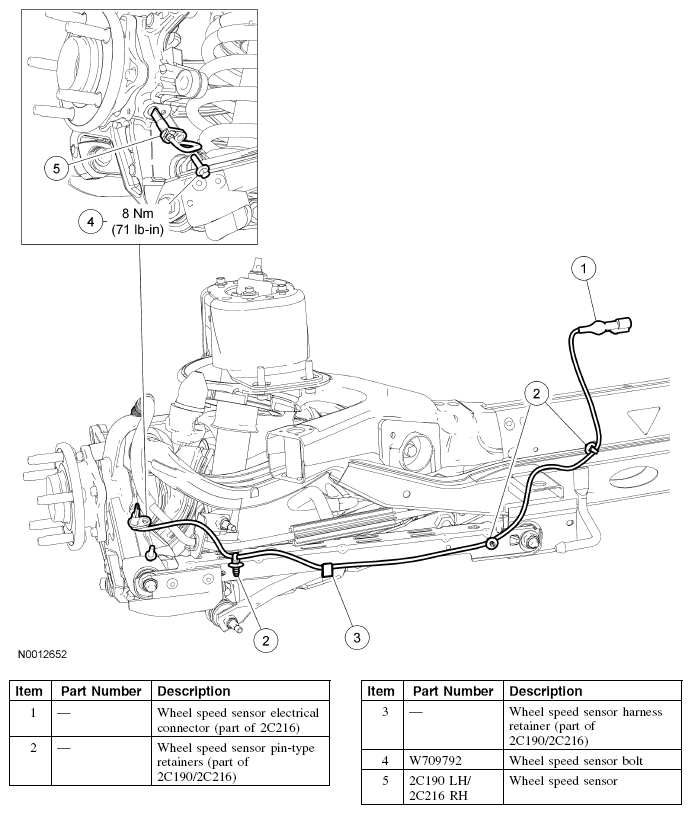

Fig 1: Wheel Speed Sensor Replacement Components -- Rear, Front Wheel Drive (FWD) With Torque Specifications
G04655510Courtesy of FORD MOTOR CO.
