Valve Seat Runout

WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

Use a valve seat runout gauge to check valve seat runout.

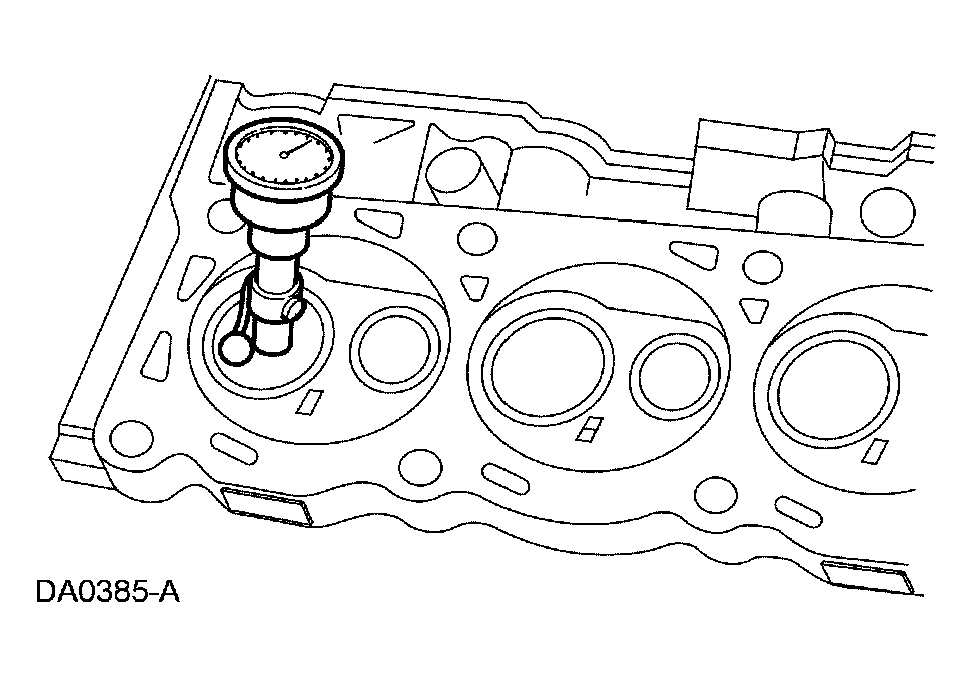

Fig 1: Measuring Valve Seat Runout
Courtesy of FORD MOTOR CO.
