Forward Clutch: Notes

SPECIAL TOOL(S)

Courtesy of FORD MOTOR CO.

Piston Spring Compressor 307-525

MATERIALS

Item	Specification
Motorcraft Continuously Variable Chain Type Transmission Fluid XT-7-QCFT (US); CXT-7-LCF12 (Canada)	WSS-M2C933-A

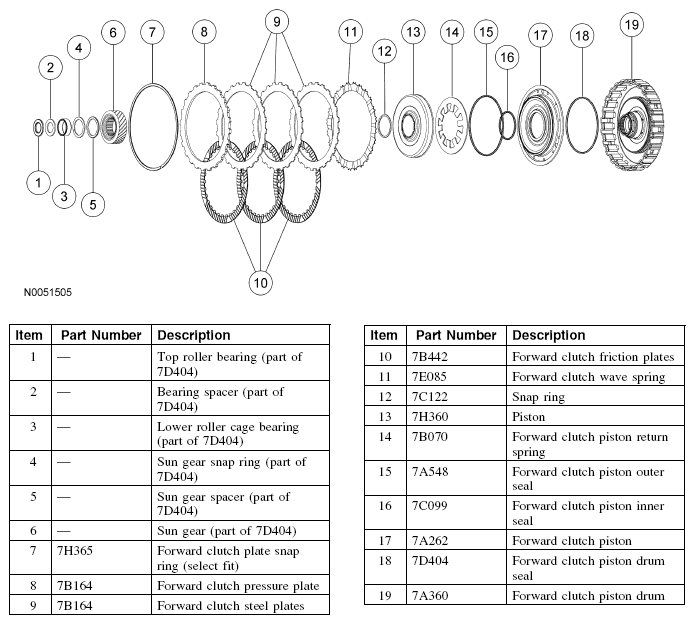

Fig 1: Exploded View Of Forward Clutch Assembly Components

Courtesy of FORD MOTOR CO.
