Mechatronic Assembly: Installation

    CAUTION: Lubricate all of the O-ring seals with clean continuously variable transmission (CVT) automatic transmission fluid. Be careful not to nick, cut or damage the O-ring seals when installing the feed tubes into the transaxle case half or internal damage to the transaxle will occur.
    Fig 1: Identifying Feed Tube Seals
    G04656400Courtesy of FORD MOTOR CO.
  1. Lubricate the new O-ring seals with clean CVT automatic transmission fluid and install the O-ring seals on the feed tubes.
    1. Install new O-ring seals on the inside and outside clutch (manual valve) supply feed tube.
    2. Install new O-ring seals on the primary pressure feed tube.
    3. Install new O-ring seals on the secondary pressure feed tube.
    4. Install new O-ring seals on the main (pump) pressure feed tube (smaller tube).
    2. CAUTION: Lubricate all of the O-ring seals with clean CVT automatic transmission fluid. Be careful not to nick, cut or damage the O-ring seals when installing the mechatronic assembly or internal damage to the transaxle will occur.
    NOTE: Note the location of the 5 feed tubes.

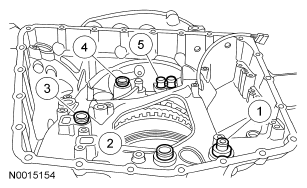

    Fig 2: Identifying Feed Tubes
    G04656401Courtesy of FORD MOTOR CO.
  2. Lubricate the O-ring seals with clean CVT automatic transmission fluid and install all of the feed tubes into the case.
    1. Align the inner tube and install the clutch (manual valve) supply feed tube.
    2. Install the primary pressure feed tube.
    3. Install the secondary pressure feed tube.
    4. Install the main (pump) pressure feed tube (smaller tube).
    5. Install a new torque converter clutch pressure feed tube.
    3. CAUTION: Do not touch the electrical connector pins. Electrostatic charge may occur and will cause damage to the mechatronic unit.
    Fig 3: Locating Mechatronic Unit
    G04656402Courtesy of FORD MOTOR CO.
  3. Position the mechatronic unit onto the case.
  4. Tighten the mechatronic bolts in sequence, in 2 stages.
    • Stage 1: Tighten to 5 N.m (44 lb-in).
    • Stage 2: Tighten an additional 40 degrees (1/8 turn).
    Fig 4: Identifying Mechatronic Unit Bolts
    G04656403Courtesy of FORD MOTOR CO.
    5. CAUTION: Do not touch the electrical connector pins. Electrostatic charge may occur and will cause damage to the mechatronic unit.
    Fig 5: Locating Electrical Connector
    G04656404Courtesy of FORD MOTOR CO.
  5. Install the electrical connector into the case.
  6. Rotate the outer shell connector in place and install the bolt.
    • Tighten to 6 N.m (53 lb-in).
    Fig 6: Locating Outer Shell Connector Bolt
    G04656405Courtesy of FORD MOTOR CO.
  7. Connect the electrical connectors.
    Fig 7: Locating Electrical Connectors
    G04656406Courtesy of FORD MOTOR CO.
    8. CAUTION:
    1. Make sure that the fluid filter pickup tube seal was removed from the bore when the filter was removed. Failure to remove the seal prior to installing the new filter will result in transaxle failure.
    2. Make sure that the transmission fluid filter is fully seated into the bore. If the filter is not correctly installed, internal transaxle damage will occur.

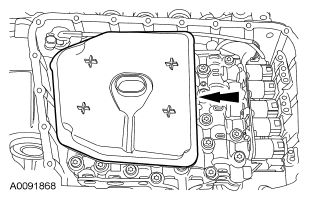

    Fig 8: Locating Fluid Filter
    G04656407Courtesy of FORD MOTOR CO.
  8. Install a new fluid filter and seal assembly.
  9. Make sure that the filter is seated over one of the mechatronic bolts.
    Fig 9: Locating Mechatronic Bolts
    G04656408Courtesy of FORD MOTOR CO.
    10. CAUTION: Use care when cleaning the gasket surface not to scratch or gouge it, a transmission leak could result.
    NOTE: Using a plastic scraper, make sure that all gasket material is removed from the case.
    Fig 10: Locating Fluid Pan Gasket
    G04656409Courtesy of FORD MOTOR CO.
  10. Install a new fluid pan gasket.
  11. Install the fluid pan and the bolts. Tighten in the sequence shown.
    • Tighten to 12 N.m (9 lb-ft).

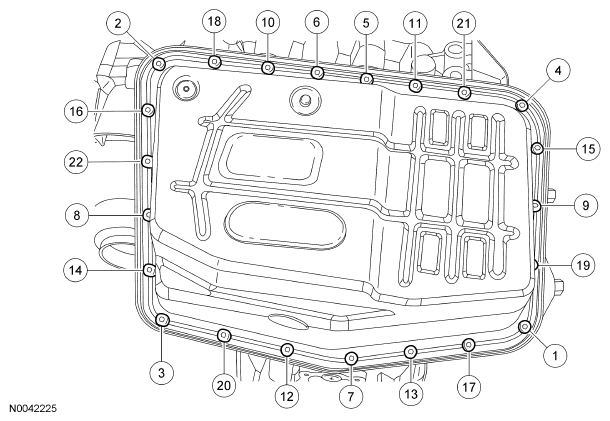

    Fig 11: Tightening Fluid Pan Bolts In Sequence
    G04656410Courtesy of FORD MOTOR CO.
  12. Install the fluid pan drain plug.
    • Tighten to 25 N.m (18 lb-ft).
    Fig 12: Locating Fluid Pan Drain Plug
    G04656411Courtesy of FORD MOTOR CO.
    13. CAUTION: Do not touch the electrical connector pins. Electrostatic charge may occur and will cause damage to the mechatronic unit.

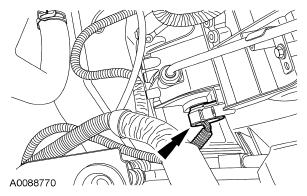

    Fig 13: Locating Transaxle Bulkhead Electrical Connector
    G04656412Courtesy of FORD MOTOR CO.
  13. Connect the transaxle bulkhead electrical connector.
  14. Fill the transaxle with approximately 4.7 L (5 quarts) of clean CVT automatic transmission fluid. Use the transmission fluid level setting procedure to fill the transaxle. For additional information, refer to TRANSMISSION FLUID LEVEL CHECK AND SETTING .
  15. If a new transaxle or a mechatronic main control valve body assembly is installed, the TCM will need to be reflashed to the latest level calibration available. If the TCM is not reflashed, the wrench light on the dash may illuminate and internal transaxle damage may occur.
