Primary Variator Cover: Installation

NOTE: The new retaining clip must be installed on the feed tube prior to installing the square cut seals.
Fig 1: Locating O-Ring Seal (2 Of 2)
Courtesy of FORD MOTOR CO.
1. Lubricate the O-ring seal in clean CVT automatic transmission fluid and install a new seal and a new retaining clip on the feed tube.
2. Install the special tool onto the feed tube.
   Fig 2: Identifying Special Tool (307-539)

   Courtesy of FORD MOTOR CO.
NOTE: Be careful not to overextend the seals when installing, damage to the seals will occur.
Fig 3: Locating Square Cut Seals And Special Tool (307-539)
Courtesy of FORD MOTOR CO.
3. Using the special tool, install 2 new square cut seals.
4. Lubricate the O-ring seal in clean continuously variable transmission (CVT) automatic transmission fluid and install the feed tube into the primary cover and install the clip.
   Fig 4: Locating Feed Tube & O-Ring Seal

   Courtesy of FORD MOTOR CO.
5. Lubricate the O-ring seals in clean CVT automatic transmission fluid and install new O-ring seals on the feed tube.
   Fig 5: Locating O-Ring Seals (1 Of 2)

   Courtesy of FORD MOTOR CO.
6. Lubricate the O-ring seals in clean CVT automatic transmission fluid. Install the large feed tube into the case and install a new O-ring seal on the small feed tube.
   Fig 6: Locating O-Ring Seals (2 Of 2)

   Courtesy of FORD MOTOR CO.
7. Install a new primary cover gasket.
   Fig 7: Locating Primary Cover Gasket

   Courtesy of FORD MOTOR CO.
8. Using new bolts, install the primary cover. Tighten the bolts in the sequence shown in 2 stages:
   • Stage 1: Tighten to 4 N.m (35 lb-in).
   • Stage 2: Tighten an additional 90 degrees.
   Fig 8: Identifying Primary Cover Bolts

   Courtesy of FORD MOTOR CO.
9. Clean the rear transaxle mount bolts using a wire brush and apply new threadlock to the threads.
10. Position the mount onto the subframe and install the rear transaxle support insulator.
    • Tighten to 55 N.m (41 lb-ft).

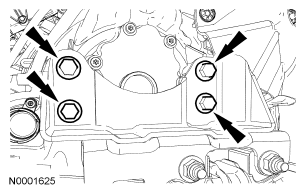

    Fig 9: Locating Rear Transaxle Support Insulator Bolts

    Courtesy of FORD MOTOR CO.
11. Install the 2 bolts for the rear transaxle mount.
    • Tighten to 90 N.m (66 lb-ft).

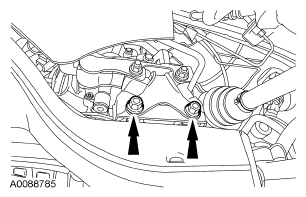

    Fig 10: Locating Rear Transaxle Mount Bolts

    Courtesy of FORD MOTOR CO.
12. If more fluid is needed, remove the fluid fill plug.
    Fig 11: Locating Fluid Fill Plug (1 Of 2)

    Courtesy of FORD MOTOR CO.
13. Fill the transaxle with clean CVT automatic transmission fluid. Use the transmission fluid level setting procedure to fill the transaxle. For additional information, refer to TRANSMISSION FLUID LEVEL CHECK AND SETTING .
14. Install the fluid fill plug.
    • Tighten to 35 N.m (26 lb-ft).

Fig 12: Locating Fluid Fill Plug (2 Of 2)

Courtesy of FORD MOTOR CO.
