Secondary Variator Cover: Installation

NOTE: Make sure that the snap ring is on the feed tube prior to installing the cover.

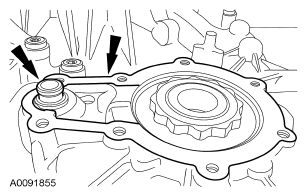

Fig 1: Locating Feed Tube & Gasket

Courtesy of FORD MOTOR CO.

Lubricate the O-ring with clean continuously variable transmission (CVT) automatic transmission fluid and install the O-ring seal on the feed tube and install a new secondary cover gasket.
Install a new square cut seal in the secondary cover.

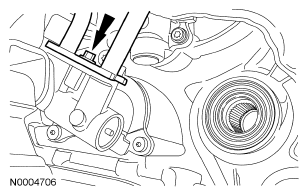

Fig 2: Locating Square Cut Seal
Courtesy of FORD MOTOR CO.
Using new bolts, install the secondary cover. Tighten the bolts in sequence in 2 stages:
- Stage 1: Tighten to 4 N.m (35 lb-in).
- Stage 2: Tighten an additional 90 degrees.
Fig 3: Tightening Secondary Cover Bolts In Sequence
Courtesy of FORD MOTOR CO.
Carefully position the insulator over the retaining pins and install the 3 retainers.

Fig 4: Locating Insulator Cover Retainers
Courtesy of FORD MOTOR CO.
Lubricate the 4 new seals in clean CVT automatic transmission fluid and install transmission fluid cooler tube seals.

Fig 5: Locating Transmission Fluid Cooler Tube Seals
Courtesy of FORD MOTOR CO.

CAUTION: Make sure the fluid cooler tubes are pushed in straight or the tubes and/or O-ring seals will be damaged.

Fig 6: Locating Transmission Fluid Cooler Tubes

Courtesy of FORD MOTOR CO.

Connect the transmission fluid cooler tubes to the transaxle.
- Tighten to 10 N.m (89 lb-in).
Install the fluid cooler tube bracket to the transaxle.
- Tighten to 10 N.m (89 lb-in).
Fig 7: Locating Fluid Cooler Tube Bracket
Courtesy of FORD MOTOR CO.
If more fluid is needed, remove the fluid fill plug.

Fig 8: Locating Fluid Fill Plug (1 Of 2)
Courtesy of FORD MOTOR CO.
If required, top off the transaxle with clean CVT automatic transmission fluid. Use the transmission fluid level setting procedure to fill the transaxle. For additional information, refer to TRANSMISSION FLUID LEVEL CHECK AND SETTING .
Install the fluid fill plug.
- Tighten to 35 N.m (26 lb-ft).
Fig 9: Locating Fluid Fill Plug (2 Of 2)
Courtesy of FORD MOTOR CO.
