Transaxle Support Insulator: Installation

Clean the rear transaxle mount bolts using a wire brush and apply new Threadlocker to the threads.
Position the transaxle mount in place and install the upper bolts.
- Tighten to 55 N.m (41 lb-ft).

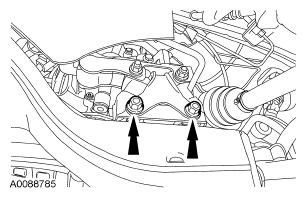

Fig 1: Locating Upper Transaxle Mount Bolts (2 Of 2)
Courtesy of FORD MOTOR CO.
Install the rear transaxle mount. Install the bolts.
- Tighten to 90 N.m (66 lb-ft).

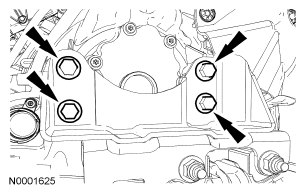

Fig 2: Locating Rear Transaxle Mount Bolts
Courtesy of FORD MOTOR CO.
