Transaxle Support Insulator: Installation

1. Clean the rear transaxle mount bolts using a wire brush and apply new threadlock and sealer to the threads.
2. Position the transaxle mount in place and install the bolts.
   • Tighten to 55 N.m (41 lb-ft).

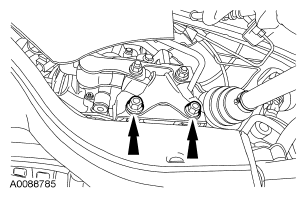

   Fig 1: Locating Transaxle Mount

   Courtesy of FORD MOTOR CO.
3. Install the rear transaxle mount.
   • Tighten to 90 N.m (66 lb-ft).

Fig 2: Locating Rear Transaxle Mount

Courtesy of FORD MOTOR CO.
