Seat Backrest - Second Row, Bucket: Notes

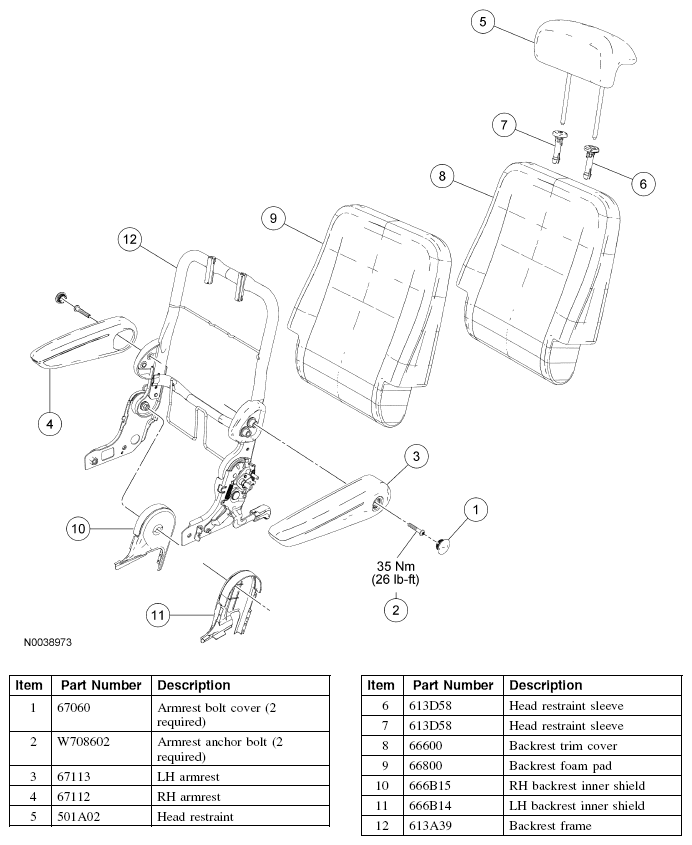

Fig 1: Exploded View Of Seat Backrest - Second Row, Bucket With Torque Specification
G04663379Courtesy of FORD MOTOR CO.
