Seat Cushion - Third Row: Notes

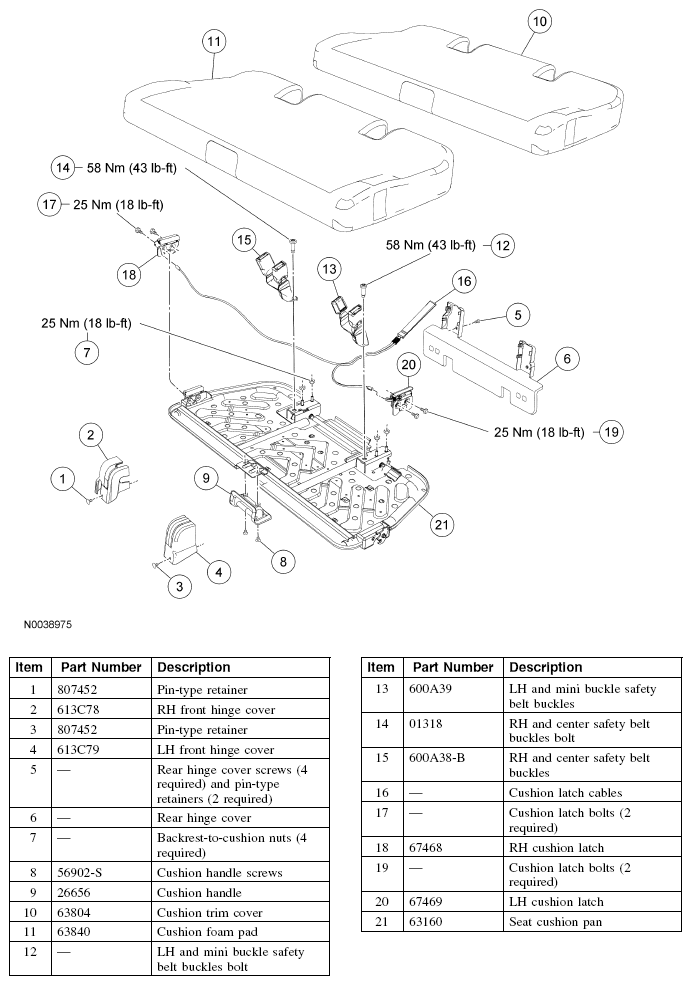

Fig 1: Exploded View Of Seat Cushion - Third Row With Torque Specifications
G04663354Courtesy of FORD MOTOR CO.
