Instrument Panel - Exploded View

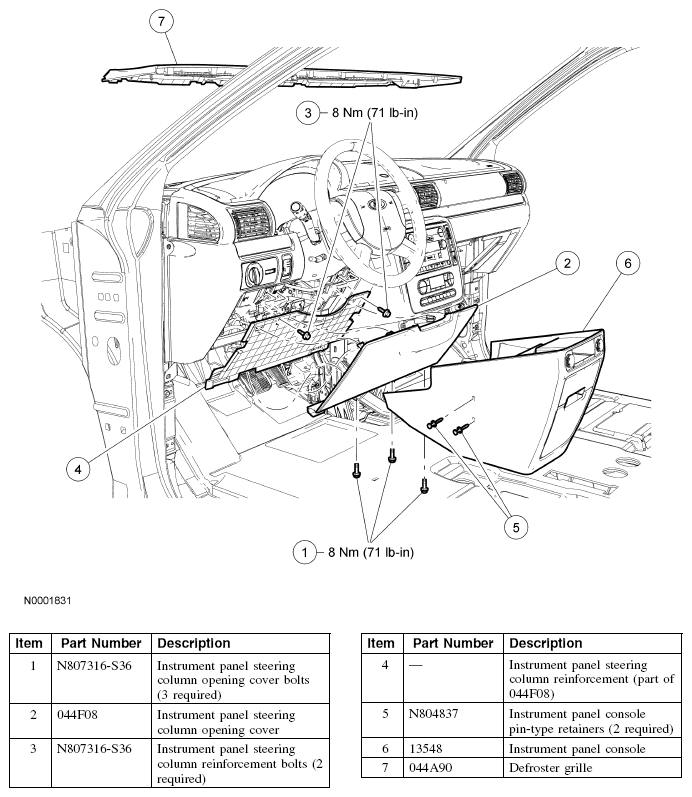

Fig 1: Exploded View Of Instrument Panel (1 Of 4)

Courtesy of FORD MOTOR CO.

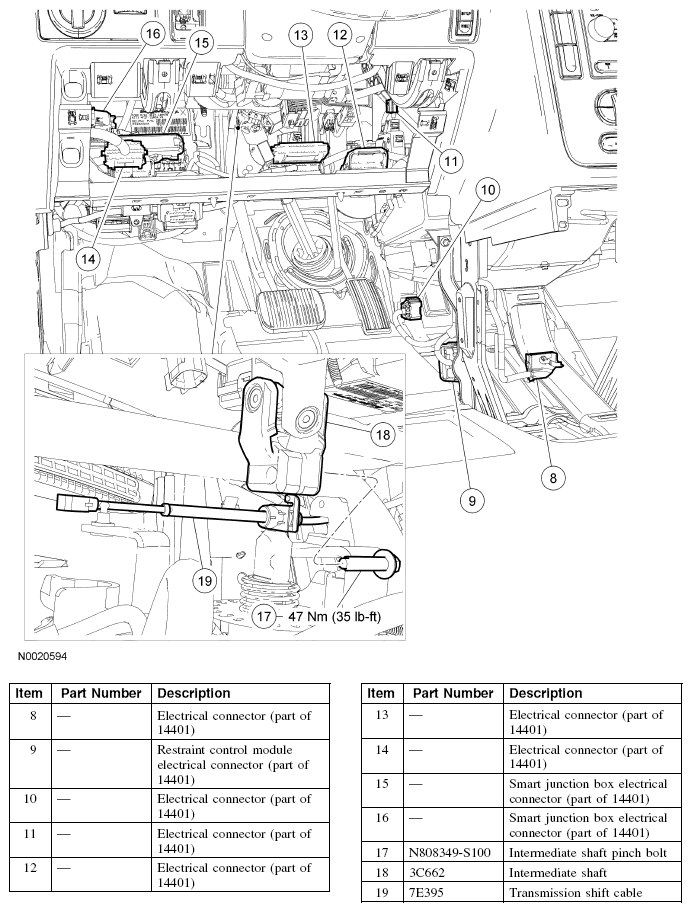

Fig 2: Exploded View Of Instrument Panel (2 Of 4)

Courtesy of FORD MOTOR CO.

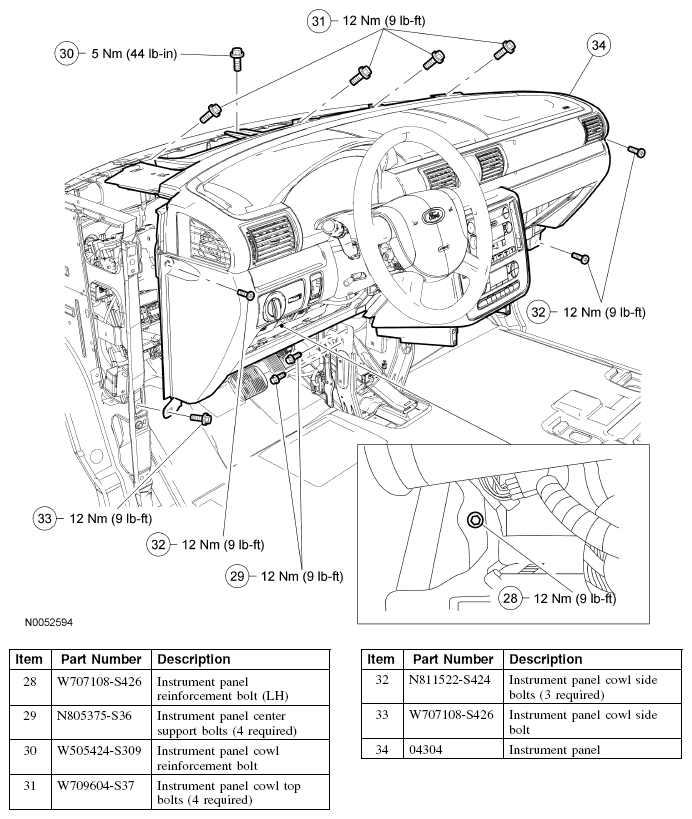

Fig 3: Exploded View Of Instrument Panel (3 Of 4)

Courtesy of FORD MOTOR CO.

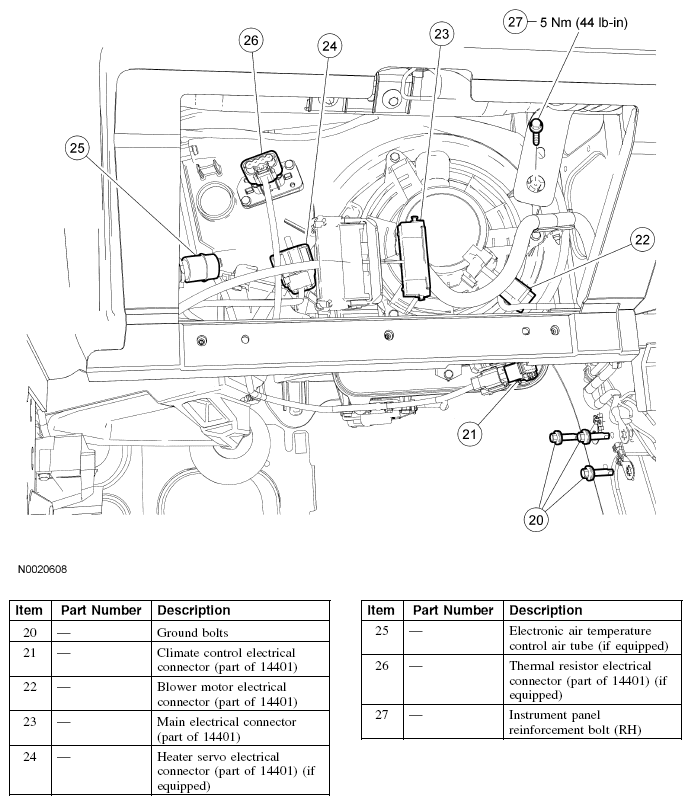

Fig 4: Exploded View Of Instrument Panel (4 Of 4)

Courtesy of FORD MOTOR CO.

1. For additional information, refer to the appropriate procedure in this article.
