Relay - Mini ISO: Terminals

WARNING: This page is about a different car, the 2006 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

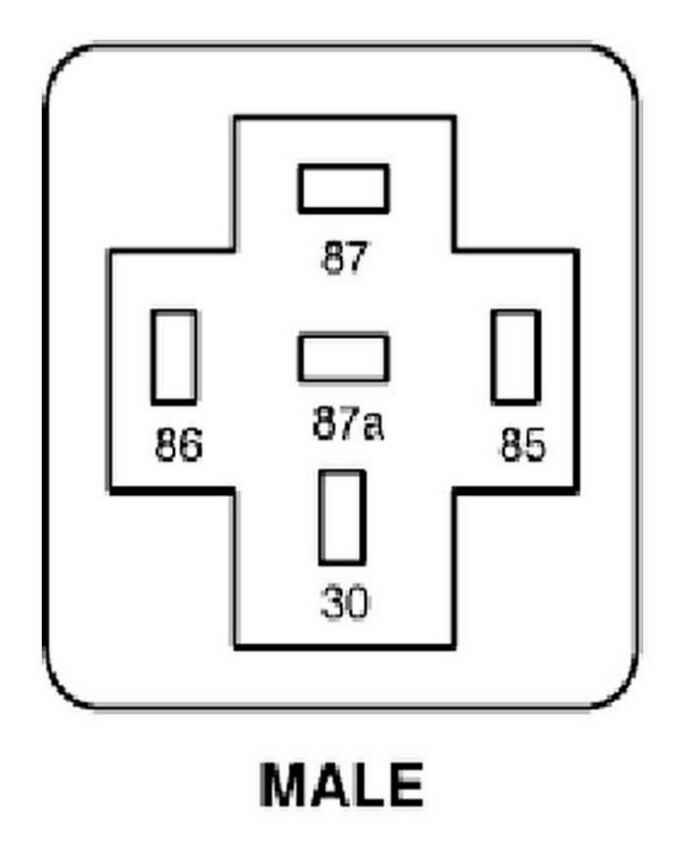

Fig 1: Identifying Relay Connector Terminals
G04597236Courtesy of FORD MOTOR CO.

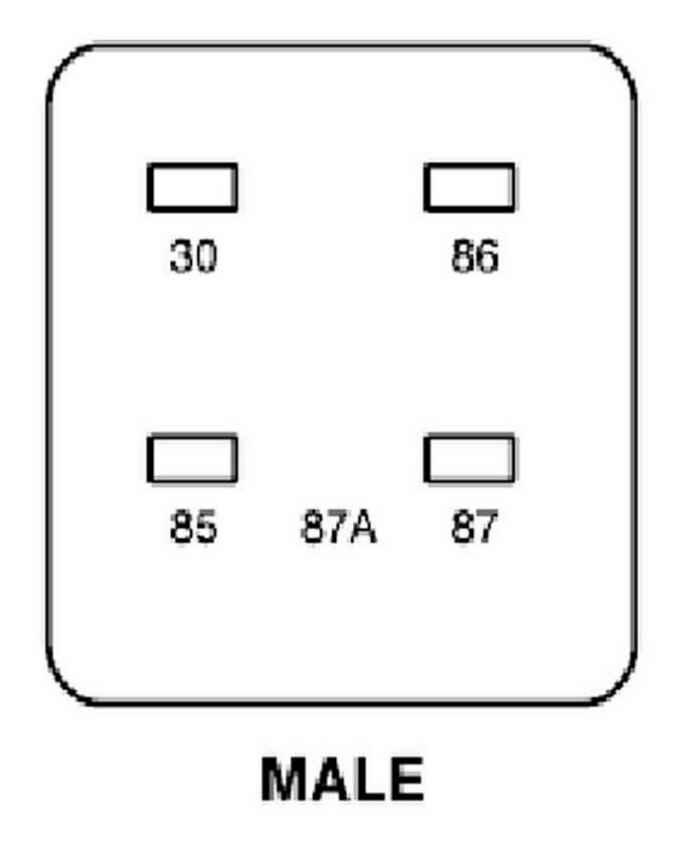

Fig 1: Identifying Relay Connector Terminals
G04597238Courtesy of FORD MOTOR CO.
